Page 14 6" & 8" Bear Cat Chipper Operator’s Manual
1. Start the chipper engine. Bring the chipper up to operat-
ing speed (see section 4.1).
2. Engage the hydraulic feed by moving the control arm as
shown in Figure 4.2.
3. If the chipper jams, reverse the feed by moving the con-
trol arm in the reverse direction. Remove the branch
and rotate it before reinserting it into the chute again.
WARNING
Please read and follow all safety instructions in this
manual. Failure to operate the chipper in accordance
with the safety instructions MAY RESULT IN PER-
SONAL INJURY!
4.5 HYDRAULIC FEED OPERATION (72620 & 74824)

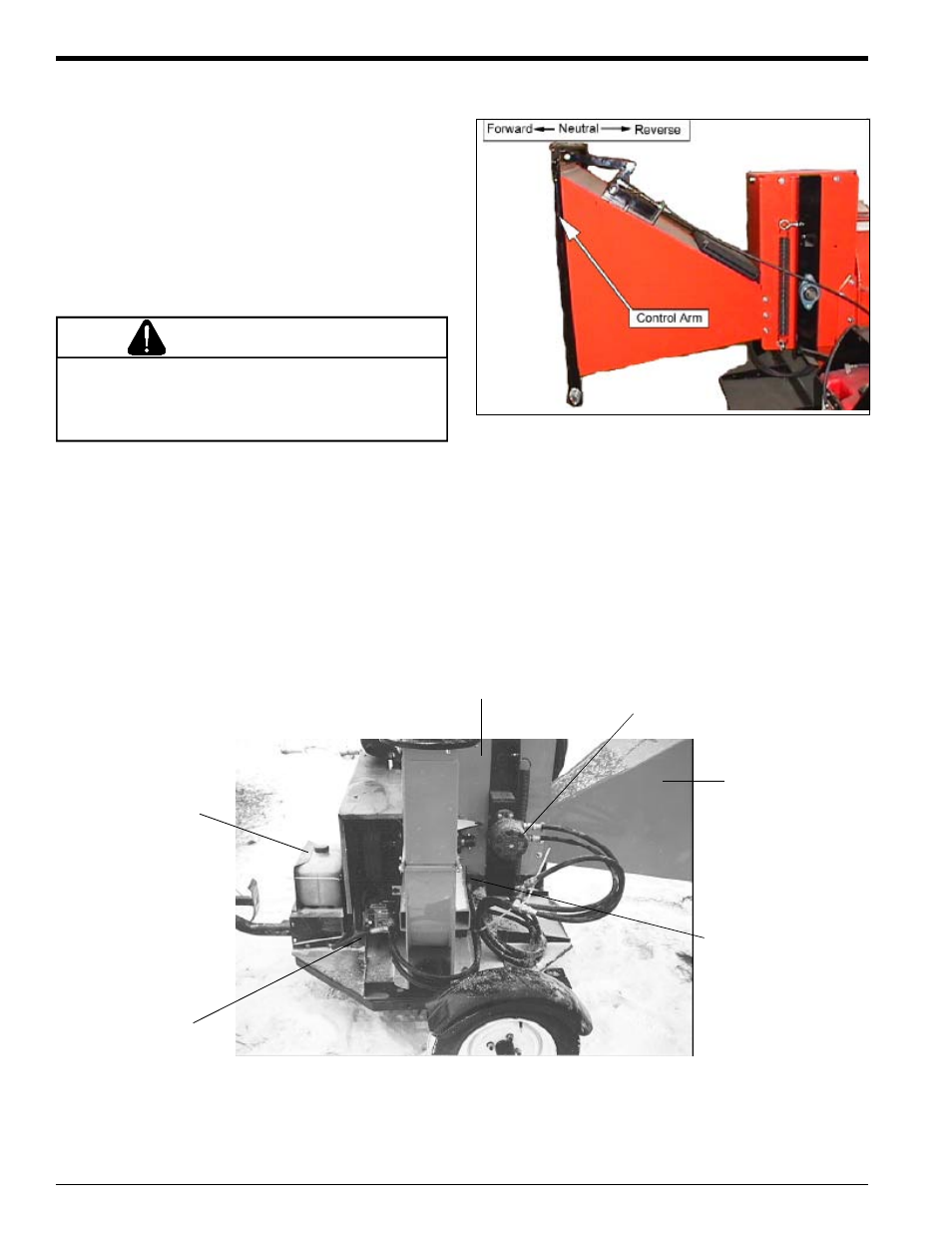

Figure 4.2 - Control Arm Operation
Hydrostatic
Pump
Reservoir
Hydraulic
Motor
Chipper
Chute
Roller Assembly
Crossover
Relief
Valve
Figure 4.3 - Hydraulic Feed Component Locations
4.6 HYDRAULIC FEED COMPONENT LOCATIONS (72620 & 74824)
OPERATION
