4 INCH CHIPPER 10
Section
FEATURES & CONTROLS
3

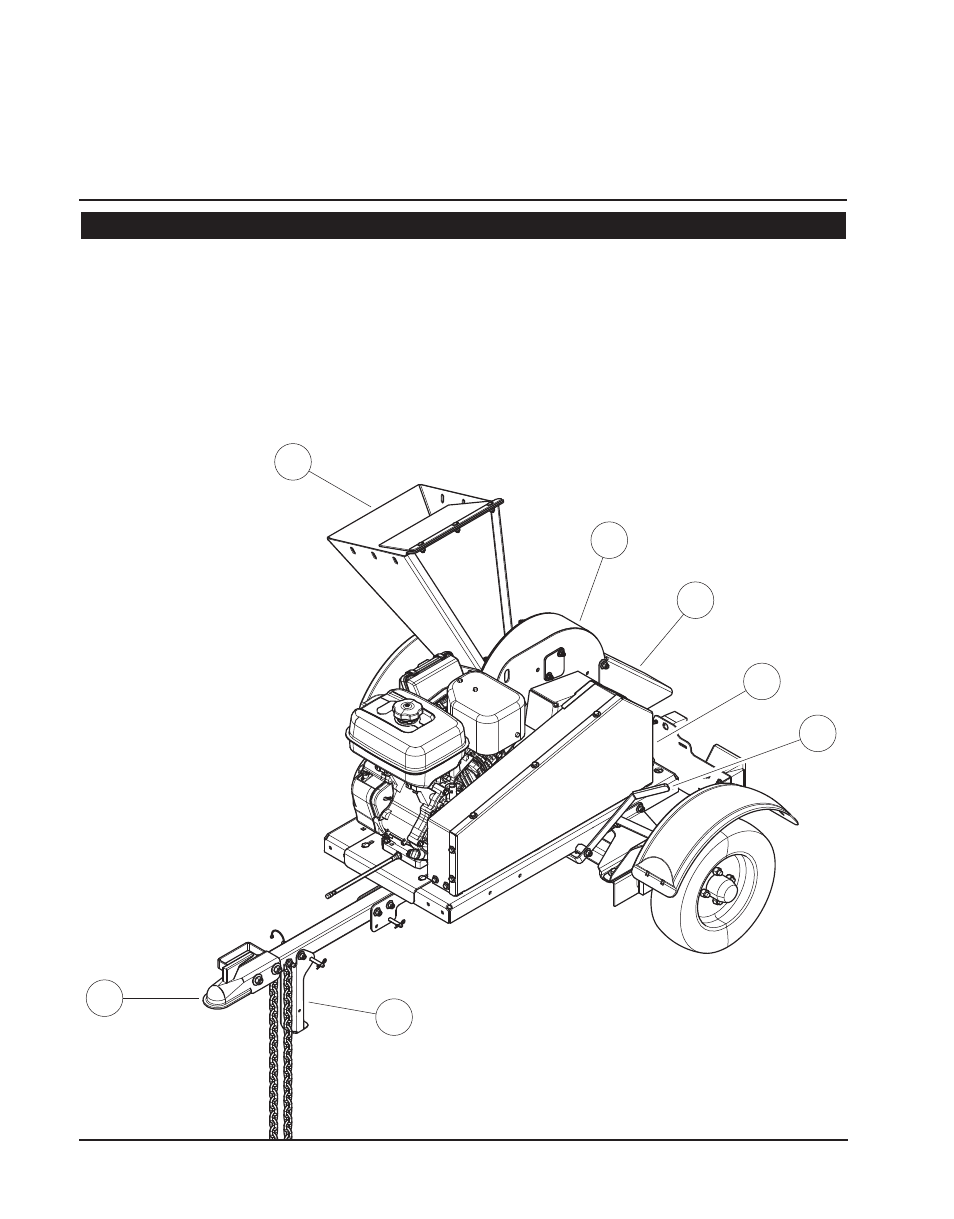

3.1 CHIPPER CONTROLS
1. Hitch: Always use 2" (50 mm) ball and safety chains.
2. Jack stand: Always have in UP position and clear from ground when moving. When in use, place in DOWN position
on a level surface.
3. Belt guard: Never remove guards when chipper is in use.
4. Rotor access cover: Remove to expose chipper blades.
5. Discharge cap: Chipped materials exit through the discharge cap. A discharge tube is an available alternative.
6. Chipper chute: Feed materials to be chipped through the chipper chute.
7. Chipper engagement lever: Pull lever up for start position. Push lever down for chipping position.
3
2
1
4
5
6
7
