4 INCH CHIPPER 6
Section
ASSEMBLY
2
2.1 ASSEMBLY NON-CE COMPLIANT
2
3
4
5
6
6
7
8
9
10
12 13
14
15
16
17
11
11
11
7
6
1. Align wheels(13) with lug bolts on axle hub and secure
to hub using four 1/2" lug nuts(12). Using as alternating
pattern, tighten wheel into place and torque lug nuts(12)
to 75 ft-lbs.
2. Place hitch pole channel(15) in position underneath
trailer deck at position for standard configuration and
mount to trailer deck using two 3/8 x 1" bolts(7), 3/8 flat
washers(6) and nylock nuts(11).
3. Apply reflectors(2) to the hitch pole assembly(17) as
shown. Next, place entire hitch pole assembly(17)
into the hitch pole channel(15) while aligning the front
two holes with the top two holes in the hitch pole
channel(15) flanges. Secure using two 3/8 x 3" bolts(5),
3/8 flat washers(6) and nylock nuts(11). Place hitch
pin(4) through bottom rear hole of flange (Figure 2.1)
and secure with cotter pin.
4. Attach chipper chute flap(3) to hopper assembly(14)
using the retaining strip(16), three 5/16 x 1" bolts(9)
5/16 flat washers(8) and nylock nuts(10).

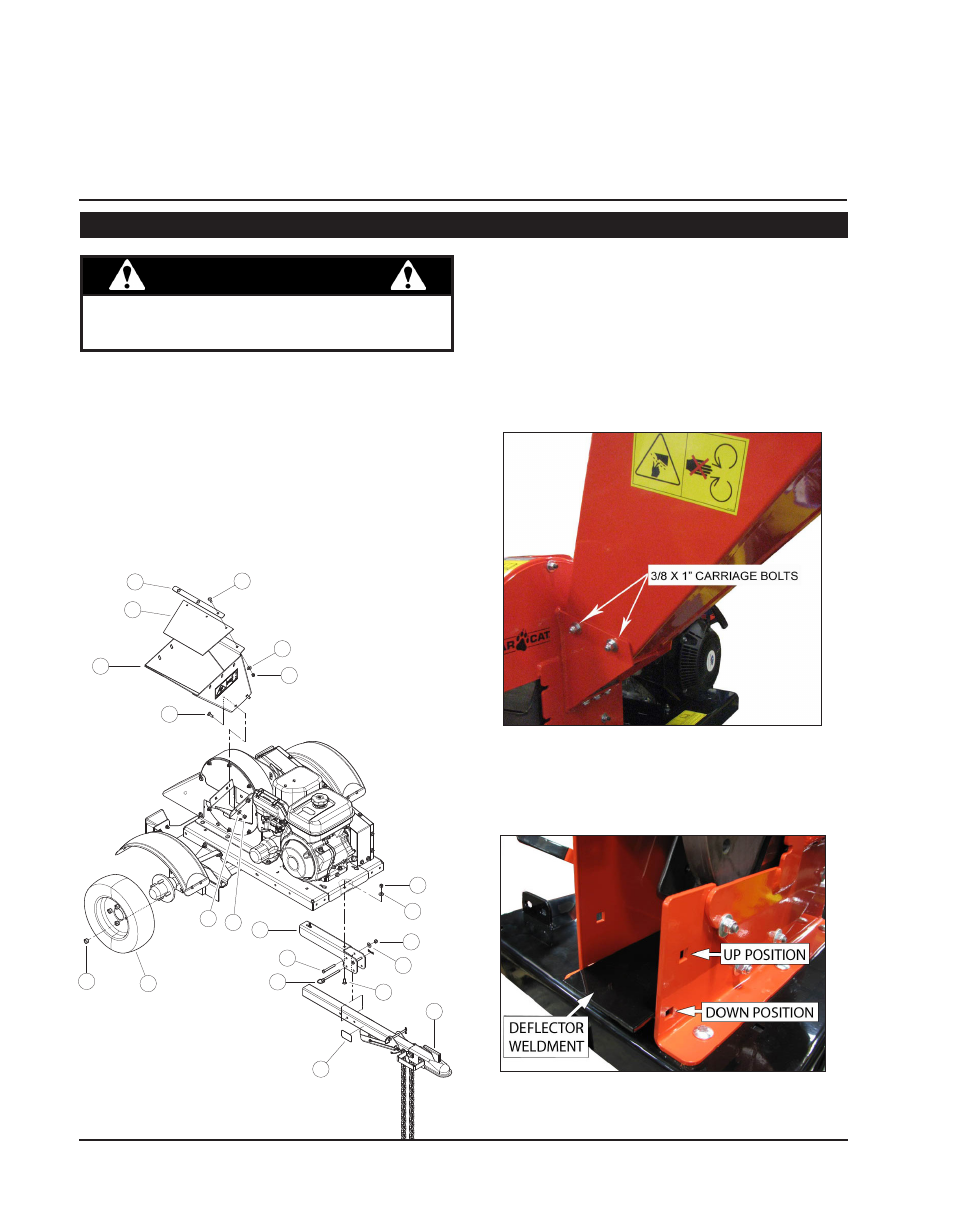

Figure 2.1, Hopper and hitch assembly.
WARNING
Before beginning the assembly of the attachments on this
chipper, brace and/or stabilize the machine to prevent it from
moving, falling or tipping that may result in serious injury.
5. Mount that completed hopper assembly to the chipper
housing using four 3/8 x 1" bolts(7), 3/8 flat washers(6)
and nylock nuts(11).
Figure 2.2 Chipper chute
Figure 2.3 Chipper deflector weldment
