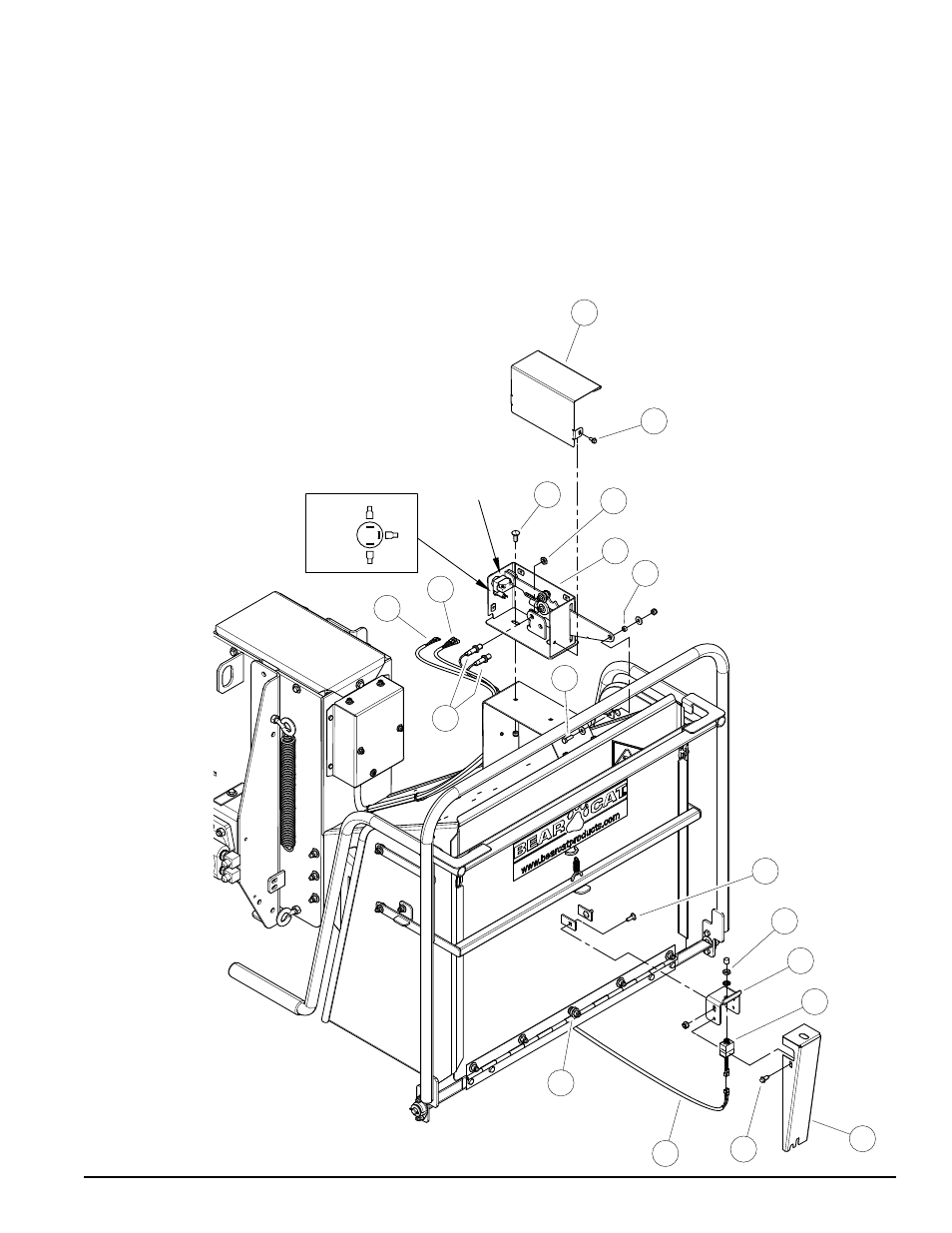

SWITCh Box INSTAllATIoN
1. mount new switch box (1) to top of chipper
chute with two carriage bolts (10), washers,
and nuts. ensure switch box is all the to
the front of the machine in the slot before
tightening completely
2. connect control arm to switch control bar
using bolt (8), spacer, washer, and nut.
ensure spacer (9) is in the switch control bar
before tightening.
3. install tri-color led into control box so that
the silver terminal is located at the three
o'clock position from the inside of the box.
4. connect wires to the back of the reset switch
(6) and tri-color led (7). ensure wires for
the tri-color led are connected as shown in
diagram.
COMPLETE
CIRCUIT
WHT
RED/YEL
RED/GRN
TRI-COLOR LED
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
5. install proximity sensors (4) into control box
(1) using the nuts (5) previously removed.
ensure that sensors are put into the same
hole that they came out of and that there
is a 1/32” gap between the sensor and
switch control bar. ensure not to overtighten
damage to sensor may occur.
6. install control box cover (2) on control box (1)
using four serrated flange bolts (3).
