Echo CH5540HXE User Manual
Page 4

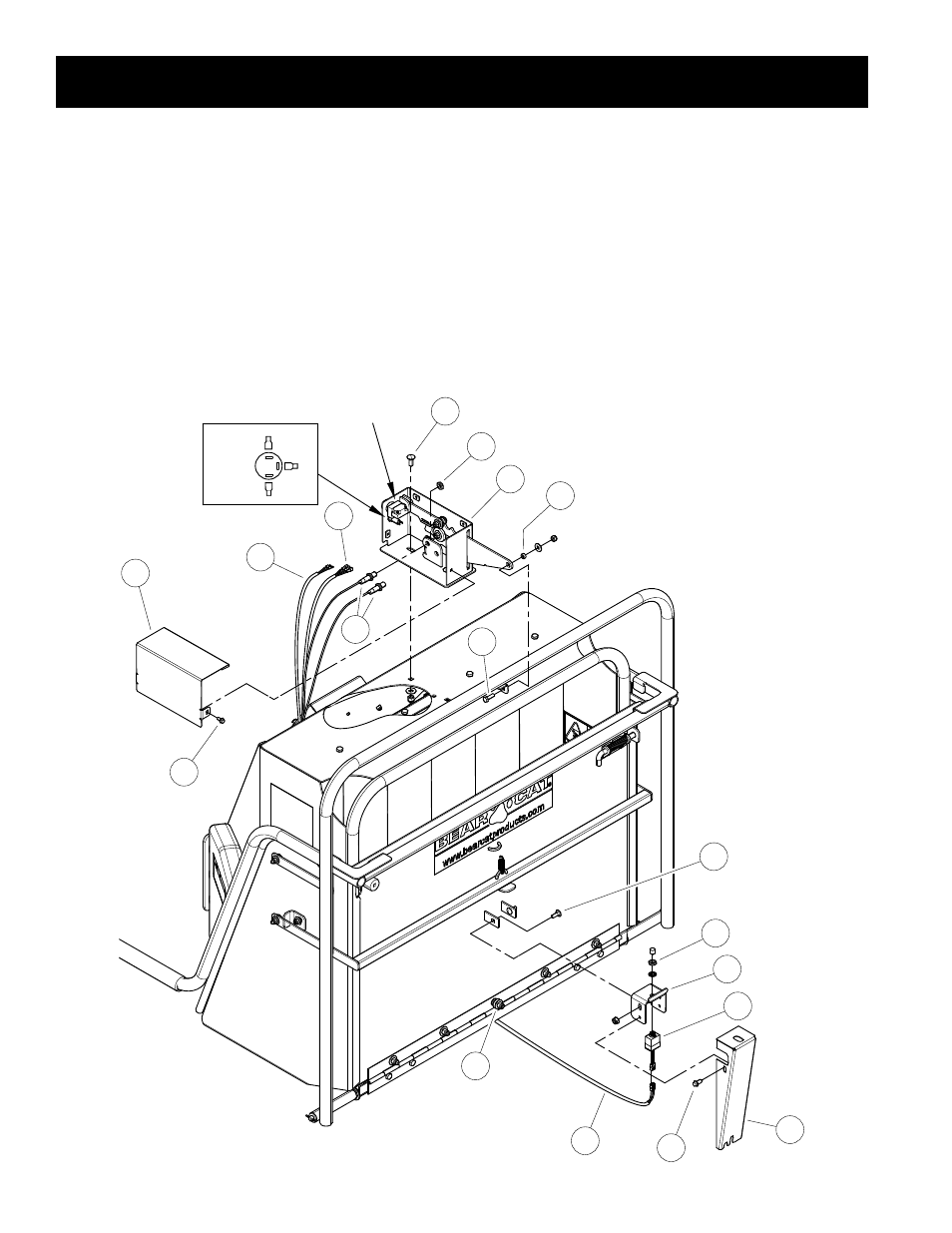

SWITCh Box REMovAl
1. Remove control box cover (2) by removing four serrated flange bolts (3).
2. remove proximity sensors (4) by removing inside nut (5) closest to the control arm. note from
which position each sensor came from they will need to be installed in the same holes during
installation of new control box.
3. remove wires from the back of the reset switch (6) and tri-color led (7). remove tri-color
led from control box. (7)
4. remove bolt (8) connecting control arm to switch control bar.
5. remove two carriage bolt (10) connecting switch box (1) to chipper chute.
COMPLETE
CIRCUIT
WHT
RED/YEL
RED/GRN
TRI-COLOR LED
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
9
10
KIT #77536-00 FoR ModElS: Ch611dhxE, Ch6993hxE & Ch6670hxE
Ch8993hxE,Ch8720IhxE, Ch8670hxE, Ch911dhxE, Ch922dhxE
CH611DHXE Chipper Chute
