PTO CHIPPERS
9
ENGLISH
Section
discharge tube
1.
: chipped materials will exit through
this tube. It is adjustable 360 degrees. The discharge
tube for the fine chip model is not adjustable. It is
designed to blow materials onto the ground.
Rotor shaft bearing cover
2.
: covers rotor shaft and
front bearing.
manual Holder:
3.
conveniently stores your owner's and
parts manuals.
Leg stands
4.
: Never move machine unless the three-
point is lifted and legs clear the ground.
Chipper chute
5.
: Feed materials into the chipper
chute.
Safety bar:
6.
(Not available on all models.) Push
the safety bar to stop the feed roller in event of an
emergency.
FEATuRES & CoNTRoLS
Reset/override button:
7.
(Not available on all models.)
When the safety bar has been activated, the red light
will go on and the feed roller will stop. Push the reset/
override button to resume forward feed. upon start-up,
the safety bar light will be on and will need to be reset
before the feed roller will operate.
Rotor access cover
8.
: Tilts up to provide access to
blades.
Feed roller lift jack:
9.
Use the jack to lift the feed roller
to inspect or service the machine. Secure feed roller
in the raised position with the snap pin.
Hydraulic fluid tank:
10.
Inspect level of fluid each time
the machine is operated.
drive belt shield
11.
: Remove shield to inspect drive
belt.
Three-point connection:
12.
Mounts chipper to tractor
three-point hitch.
PTo driveline
13.
: connects chipper to tractor PTO
shaft.
3

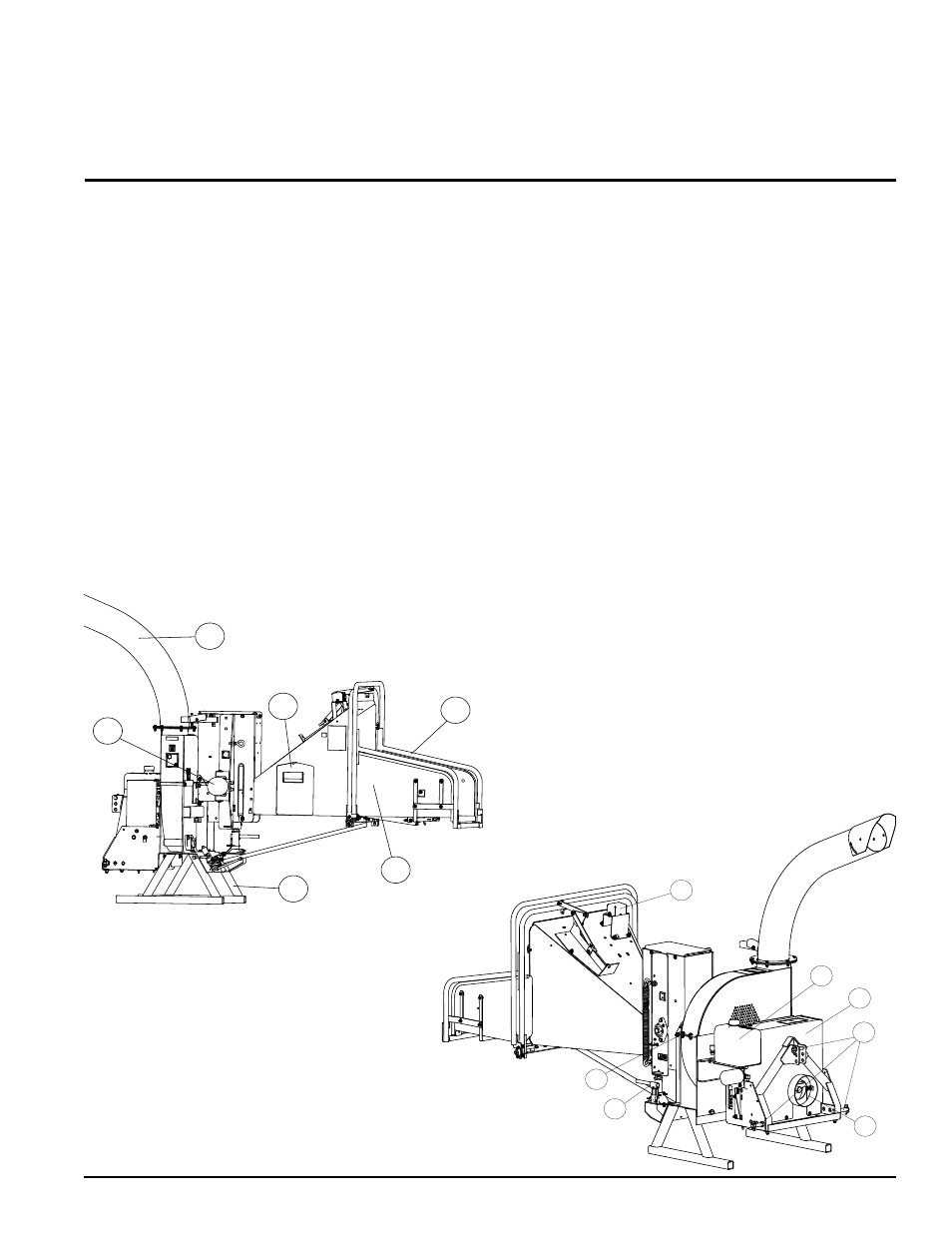

understanding how your machine works will help you achieve the best results when using your machine. The following
descriptions define the features and controls of your machine.
