PTO CHIPPERS 7
ENGLISH
ASSEMBLY

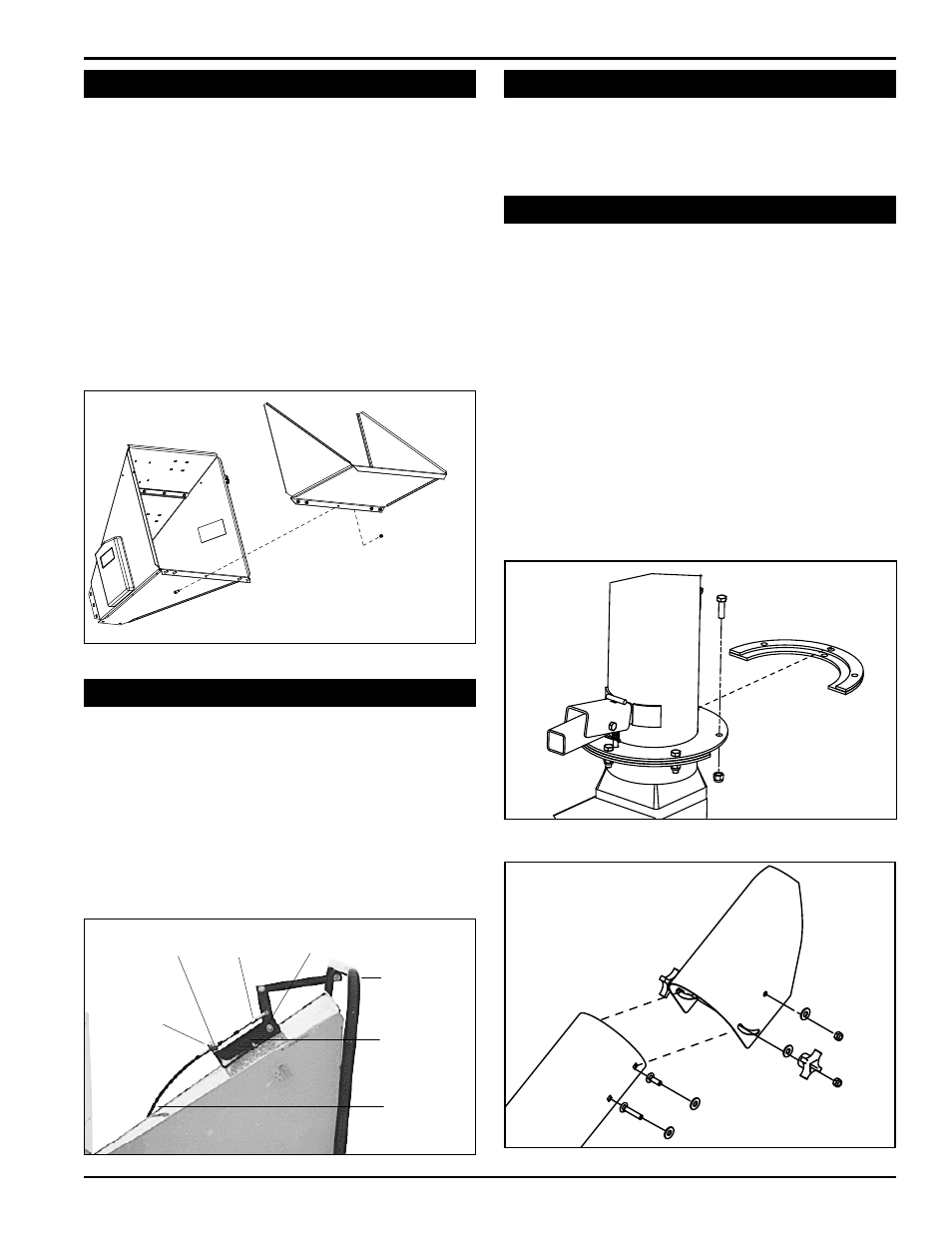

Figure 2.4. Attaching the extension tray
2.3 ATTACH ExTENSIoN TRAY
(Not available on all models. Model ch8540 shown here.)
Slide the chute extension tray over the chipper chute. 1.
make sure that you position the lip on the extension
tray behind the lip on the chipper chute. Align the
bolt holes in the chute extension tray with the bolt
holes in the hinge.
Insert 3/8" x 1" carriage bolts (included in owner's kit)
2.
through the four outside holes on the extension tray
and hinge. Secure the bolts with washers and nuts.
Insert one 3/8" x 1-1/2" carriage bolt through the end
3.
of the chute support and middle hole of the extension
hinge and tray. Secure the bolts with washer and nuts.
Secure with hairpin clips.
2.5 SAFETY bAR
(Not available on all models.)
Plug safety bar wire harness into the loose wire 1.
harness on the chipper frame.
2.4 HYdRoSTATIC CoNTRoL CAbLE
On hydraulic feed models, remove the clevis assembly 1.
from the hydrostatic control cable end (see Figure 2.5).
Remove one nut on the cable end. Insert the cable end
into the hole in the cable anchor weldment. Replace
the nut and clevis assembly.
Attach the clevis assembly to the center hole on the
2.
feed control lever.
Adjust the cable detent ball to contact the detents in
3.
the cable anchor weldment when the control arm is in
the forward or reverse position.
INSERT CABLE
THROUGH HOLE
NUT
CLEVIS
ASSEMBLY DETENT
BALL
FEED
CONTROL
LEVER
CABLE ANCHOR
WELDMENT
HYDROSTAT
CONTROL
CABLE
Figure 2.5. Hydrostatic control cable
2.6 ATTACH dISCHARGE TubE
(Models ch8540 and ch9540h)
Slide the tube onto the mounting flange on the chipper 1.
frame (Figure 2.6). The discharge clamp should slide
underneath the lip of the flange. Tighten the bolts to
secure it.
Install the second half of the spacer and clamp to the
2.
discharge tube. Rotate the tube 360 degrees and lock
it in place with the lock pin to make sure it is mounted
correctly.
Attach the discharge deflector to the discharge tube.
3.
connect the cap with 3/8" x 2" bolts through the bottom
hole in the discharge tube. Run these bolts through
the inside of the tube, the cap, washer, knob, and
then nut. Finish bolting the cap to the tube with 3/8"
x 1" bolts through the end hole in the discharge tube
(Figure 2.7).
Fig. 2.6. Attach spacer and clamp underneath tube base
Fig. 2.7. Attach discharge deflector
