SECTION 4 - HYDRAULICS
4-14
– JLG Lift –
3121639
NOTE: Torque Locknut (8) to 400 ft lbs (542.3 Nm).
Torque Counter Balance Valve (20) and Check Valve
(21) to 30-35 ft. lb. (40-47 Nm).
When servicing, apply a light coat of grease to the
Jack Pad (2) before installing.
1
2
3
3
3
4
5
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
19
1. Cylinder Barrel
2. Jack Pad
3. Special Screw, 1/2" - 13NC x 1-1/4
4. Cylinder Rod
5. Retaining Ring
6. Plate
7. End Cap
8. Locknut
9. Piston
10. Flatwasher, 1-1/4"
11. Wear Ring
12. Piston Seal
13. O-Ring
14. Head
15. Wear Ring
16. O-Ring
17. Polyseal
18. Wiper Seal
19. Plug
20. Counter Balance Valve (see note)
21. Check Valve (see note)

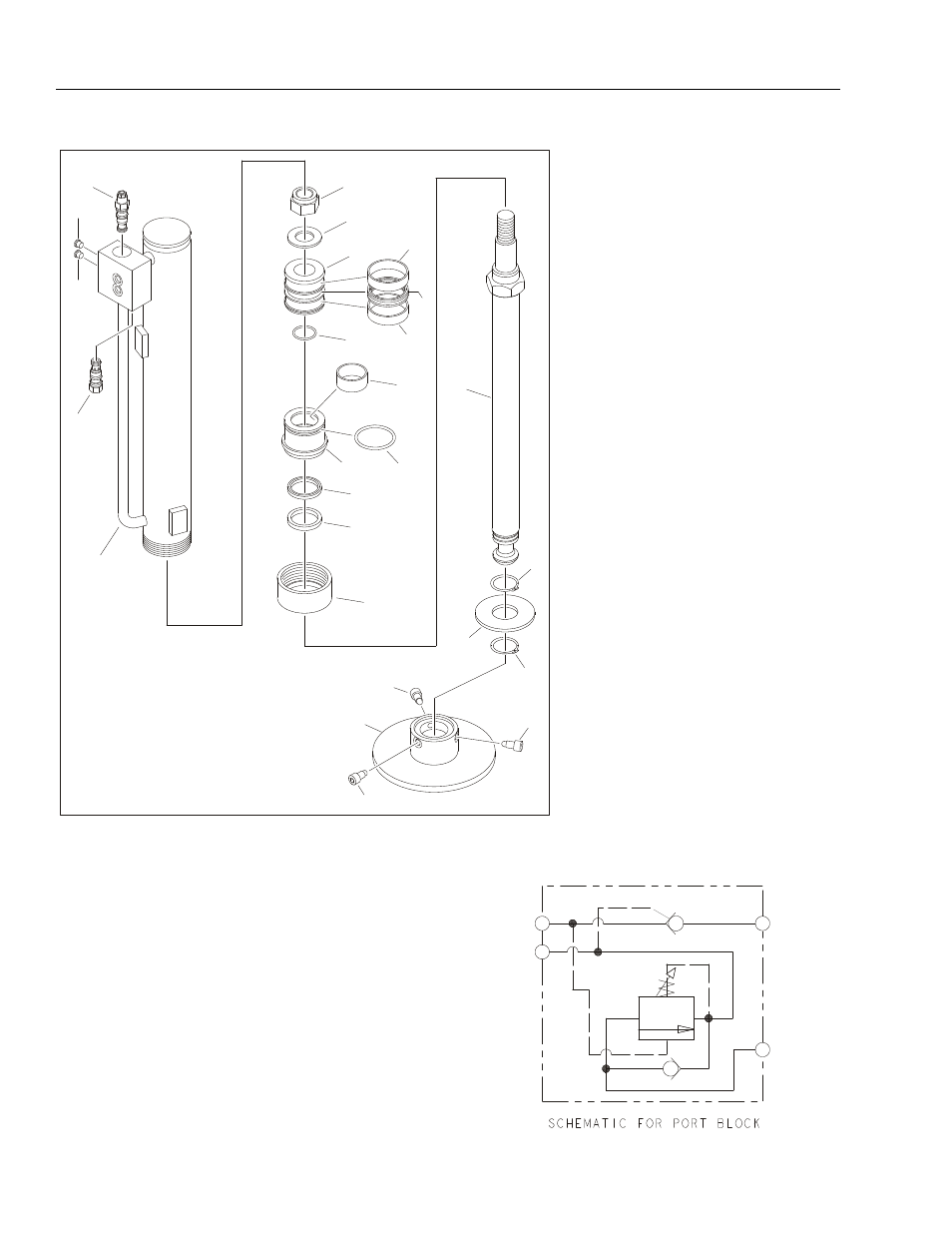

Figure 4-13. Leveling Jack Cylinder
