SECTION 1 - SPECIFICATIONS
3121639 – JLG Lift – 1-3
Tires
Engine (Generator)
Table 1-3. Tire Specifications
Size 240/55 D17.5 R4 Tread
(Fill tire with high durometer polyurethane at 90 psi)
IN240/55-17.5 FF 27.2/10.5-15 FF Turf
IN240/55-17.5
Non Marking
Load Rating
7960 lbs @ 95 psi
(3611kg @ 655kPa)
7730 lbs @ 90 psi
(3506kg @ 621 kPa)
8550 lbs @ 105 psi
(3878kg @ 724kPa)
7960 lbs @ 95 psi
(3611kg @ 655kPa)
7730 lbs @ 90 psi
(3506kg @ 621 kPa)
4019 lbs @ 42 psi
(1823kg @ 290 kPa)
2180 lbs @ 32 psi
(989kg @ 221 kPa)
8550 lbs @ 105 psi
(3878kg @ 724kPa)
7960 lbs @ 95 psi
(3611kg @ 655kPa)
7730 lbs @ 90 psi
(3506kg @ 621 kPa)
Ply Rating
12 Ply 10 Ply 6 Ply 10 Ply
Wheel Nut
Torque
170 ft lbs
(230 Nm)
Table 1-4. Engine Specifications (Generator - If
Equipped)
TYPE
Air Cooled, 4 Cycle, Kubota Diesel
OC60-D (T4F)
Displacement 16.85 cu. in
.
(0.276L)
Bore x Stroke 2.83 in x 2.68 in (72mm x 68mm)
Number of cylinders 1
Horsepower 5.6HP/3600 rpm (4.5 kw/3600rpm)
Fuel Type Diesel (SAE No. 2-D)
Glow Plug Preheater on @ 40° F (5° C)
Weight 38 lb. (17.24 kg)
Air Cleaner Paper Element Type
Table 1-5. Engine Battery Specifications
BCI GROUP SIZE 51R - 675
Cranking Performance 550 Amps @ 32° F (0° C)
450 Amps @ 0° F (-18° C)
Reserve Capacity 80 minutes @ 80° F(27° C)
Weight 29 lb. (13.15 kg)

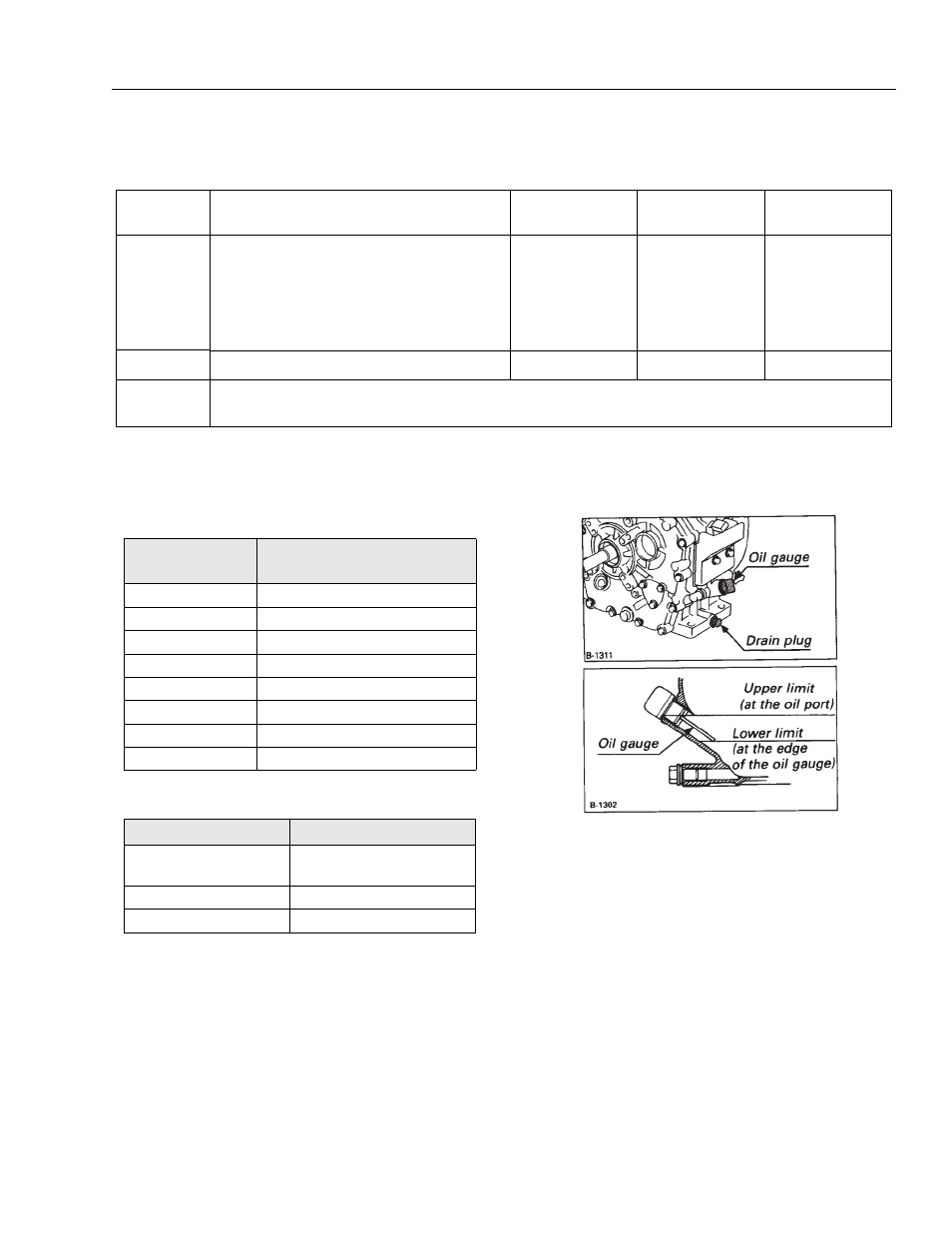

Kubota OC60-D Engine - Oil Dip Stick and Drain Location
