3.6 JOYSTICK CONTROLLER

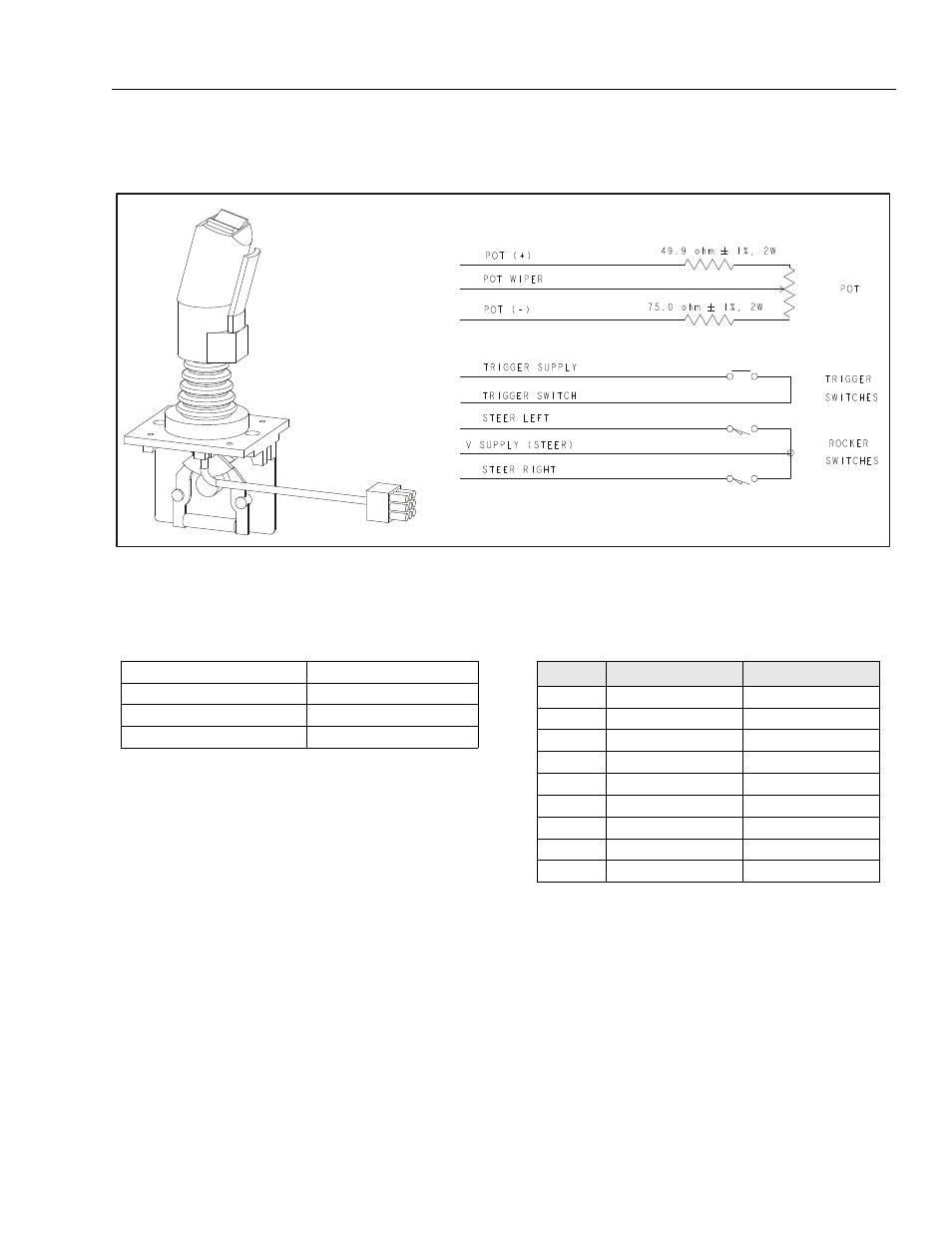

Figure 3-11. Joystick Controller - (JLG P/N 1600403)
Table 3-8. Joystick Specifications
Input Voltage
5V
Centered Output Voltage
4.25V to 2.60V
Reverse Voltage
4.60V to 4.80V
Forward Voltage
0.40V to 0.60V
Table 3-9. Joystick Plug Loading Chart
Terminal
Color
Function
1
Yellow
Steer Right
2
Green
Steer Left
3
Brown
Pot Wiper
4
Red
Handle Common
5
N/A
Not Connected
6
White/Red
Pot (+)
7
Violet
Trigger Switch
8
Blue
Trigger Supply
9
White/Black
Pot (-)
