SECTION 5 - OPTIONAL EQUIPMENT
5-4 – JLG Lift – 3120796
Hanging a Rug using the Rug Carrier
Accessory Arms
This section describes the use of the Rug Carrier acces-
sory in hanging rugs on horizontal pivoting arm display
racks.
1. Select the intended location in the display for mount-
ing the rug. Open the display rack to provide ade-
quate space for the 15VPSP lift and rug.
2. With the Rug Carrier Accessory arms stowed, drive
the 15VPSP into position prior to loading the rug.
3. Swing and lock Rug Carrier Accessory arms into the
carry position.
(See Figure 5-4.)
4. Load the rolled rug with the finished side facing the
platform. As required, use an assistant to load the
rug onto the Rug Carrier Accessory arms.
5. Make sure that the rug is centered over its length on
the Rug Carrier Accessory.
6. Elevate the platform to the required height for
mounting the rug onto the display arm.
7. Properly attach the rug to the display arm. Never
climb onto the platform rails for any reason.
8. After adequately attaching the rug to the display
arm, lower the platform, stow the Rug Carrier Acces-
sory arms.
9. As required reposition and elevate the 15VPSP to
completely attach the rug.
Removing a Rug using Rug Carrier
Accessory Arms
This section describes the use of the Rug Carrier acces-
sory in removing rugs from horizontal pivoting arm display
racks.
1. Select the intended location in the display for
removal of the rug. Open the display rack to provide
adequate space for the 15VPSP lift and rug.
2. With the Rug Carrier Accessory arms stowed, drive
the 15VPSP into position prior to loading the rug.
3. Swing and lock Rug Carrier Accessory arms into the
carry position as shown in Figure 5-4.
4. Elevate the platform a few feet. Start to roll the rug
up onto the Rug Carrier Accessory arms as shown in
Figure 5-6.
5. Make sure that the rug is centered over its length on
the Rug Carrier Accessory as shown in Figure 5-5.
6. While elevating to the required height for removing
the rug from the display arm, continue to roll the rug
until it is completely rolled up on the carrier arms.
7. Properly remove the rug from the display arm.
Never climb onto the platform rails for any reason.
8. After adequately removing the rug from the display
arm, lower the platform.

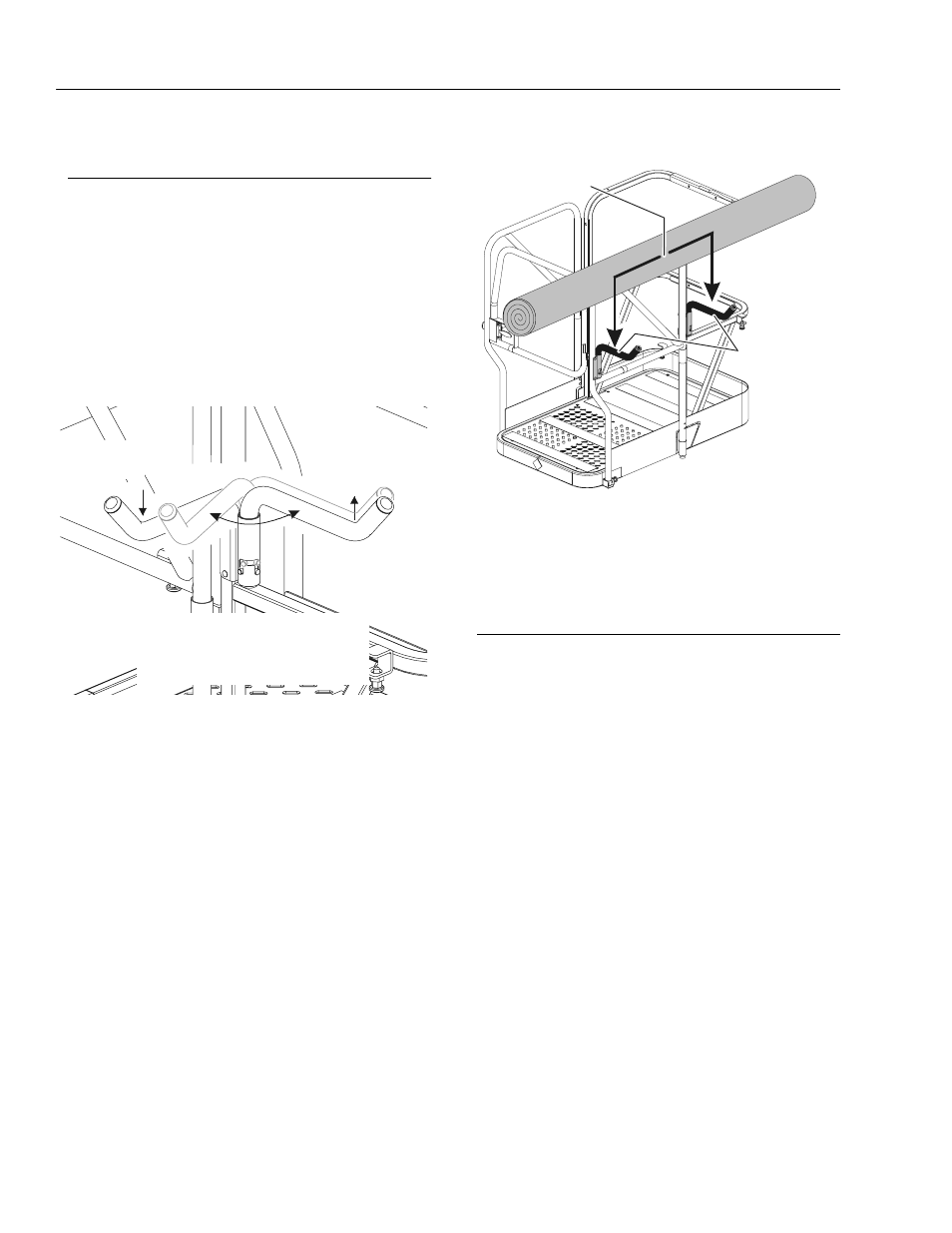

Figure 5-4. Positioning Rug Hanger Arms.
TO POSITION ARM FOR USE
LIFT ARM UP, SWING IT OUT
THEN PUSH DOWN TO LOCK
STOWED
POSITION
CARRY
POSITION
Figure 5-5. Placing Carpet Roll on Hanger Arms.
REST CARPET
ON ARMS
HERE
MAX.
150 LB.
CAPACITY
CENTER CARPET ROLL
FRONT TO REAR
ON ARMS
PLATFORM
FRONT
