SECTION 4 - MACHINE OPERATION
4-2 – JLG Lift – 3120796
15VPSP

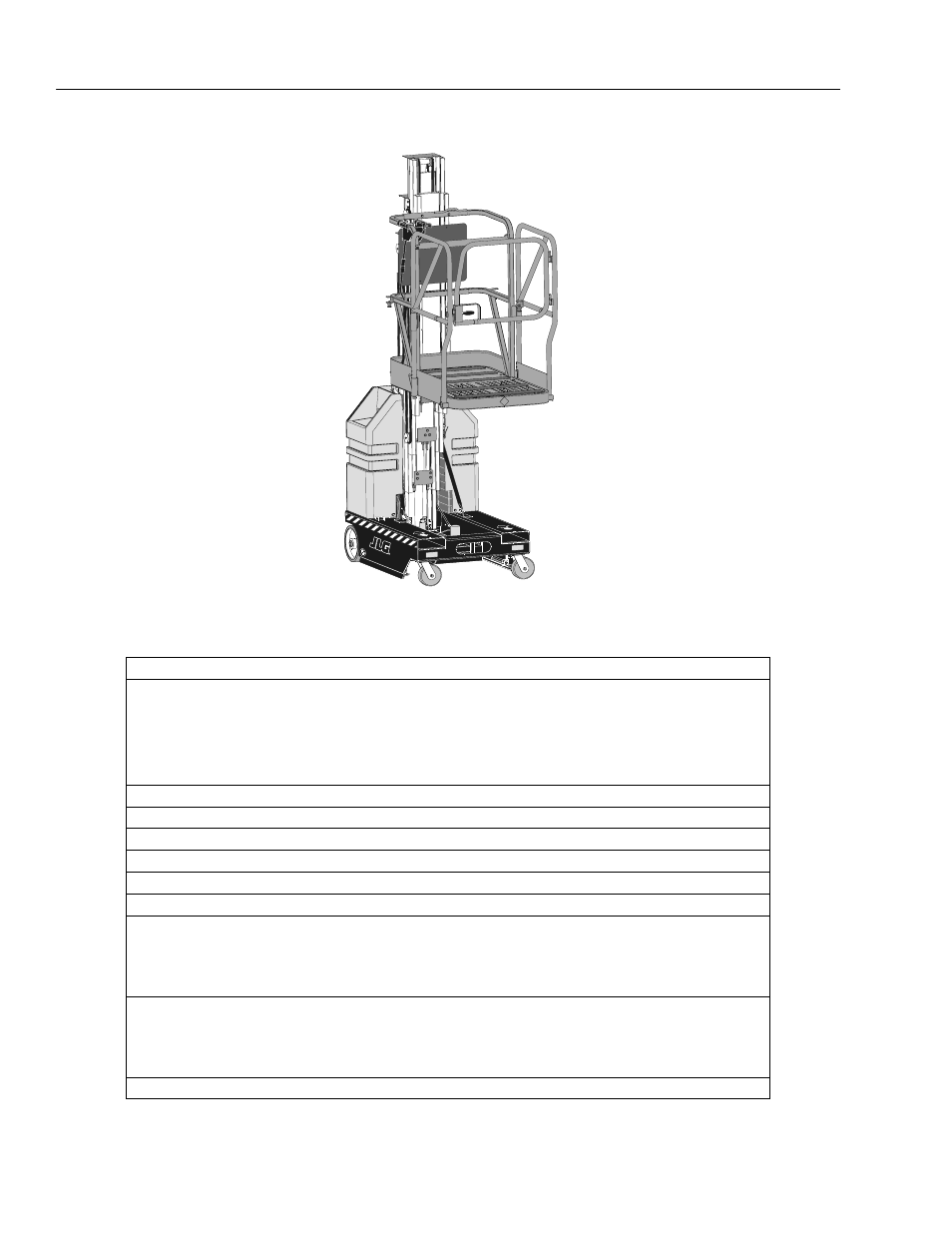

OPERATING SPECIFICATIONS
Maximum Occupants: . . . . . . . . . . . . . . . . . . . . . . . . . . 1 person
Maximum Work Load (Capacity):
Total platform capacity: . . . . . . . . . . . . . . . . . . . . . . . . 500 lb. (230 kg)
Maximum allowed on rear of platform: . . . . . . . . . . . . . 250 lb. (115 kg)
Maximum allowed on front of platform: . . . . . . . . . . . . . 250 lb. (115 kg)
Maximum Travel Grade (Gradeability): . . . . . . . . . . . . . 10% (Platform stowed ONLY)
Maximum Travel Grade (Side Slope): . . . . . . . . . . . . . . 5° (Platform stowed ONLY)
Maximum Vertical Platform Height:. . . . . . . . . . . . . . . . 15 ft. (4.57 m)
Maximum Horizontal Platform Reach:. . . . . . . . . . . . . . 45.5 in. (115.5 cm) (Fixed length of platform)
Turning Radius (inside): . . . . . . . . . . . . . . . . . . . . . . . . 0.0 in. (0 cm)
Maximum Wheel Load: . . . . . . . . . . . . . . . . . . . . . . . . . Reference decal on chassis adjacent to each wheel
Maximum Drive Speeds:
Platform Raised: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 mph (reduced automatically with limit switch)
Platform Stowed: . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 mph
Maximum Platform Speeds:
Platform Up: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 seconds (w/max. rated load)
Platform Down: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 - 25 seconds (w/max. rated load)
Gross Machine Weight (platform empty): . . . . . . . . . . . 2,190 lb. (994 kg) (See serial number plate for actual weight)
