SECTION 2 - PROCEDURES
2-56 – JLG Lift – 3120636

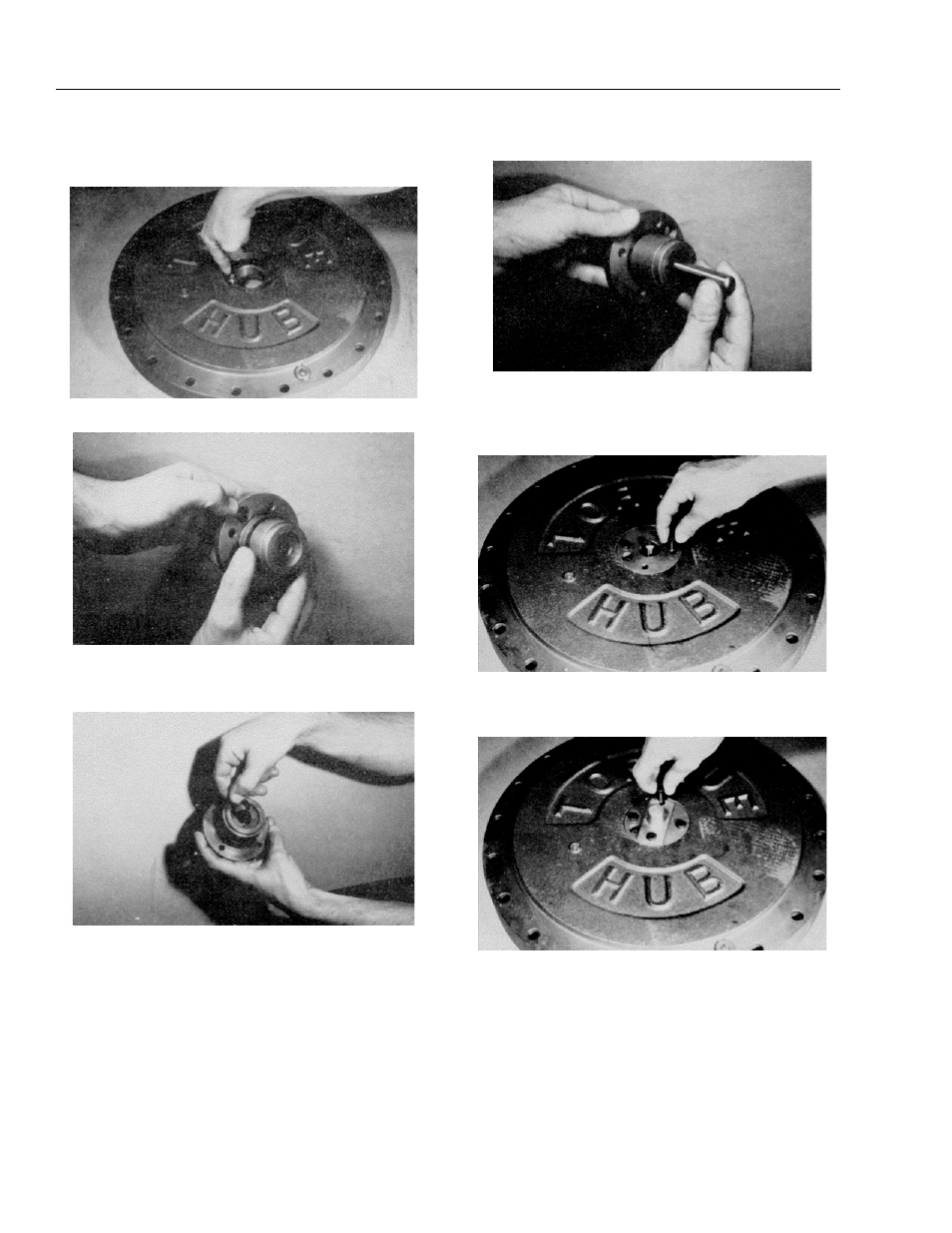

16. Assemble cover assembly as follows:
a. Screw pipe plugs (5 and 6) into cover 4.
b. Install o-ring (8) over cover cap (7).
c. Install o-ring (10) into bore of cover cap 7. Dis-
connect rod (9) may be used to push o-ring
down to groove in cover cap bore.
d. Push disconnect rod into bore of cover cap.
e. Locate large clearance hole in cover cap over
pipe plug in cover and install cover cap in cover.
Use two bolts (12) torqued to 70 to 80 in.lbs. (81-
92 kgcm).
f. Install disconnect cap (11) to cover cap with two
remaining bolts (12) torqued to 70 to 80 in.lbs.
(81-92 kgcm).





