SECTION 2 - PROCEDURES
2-54 – JLG Lift – 3120636

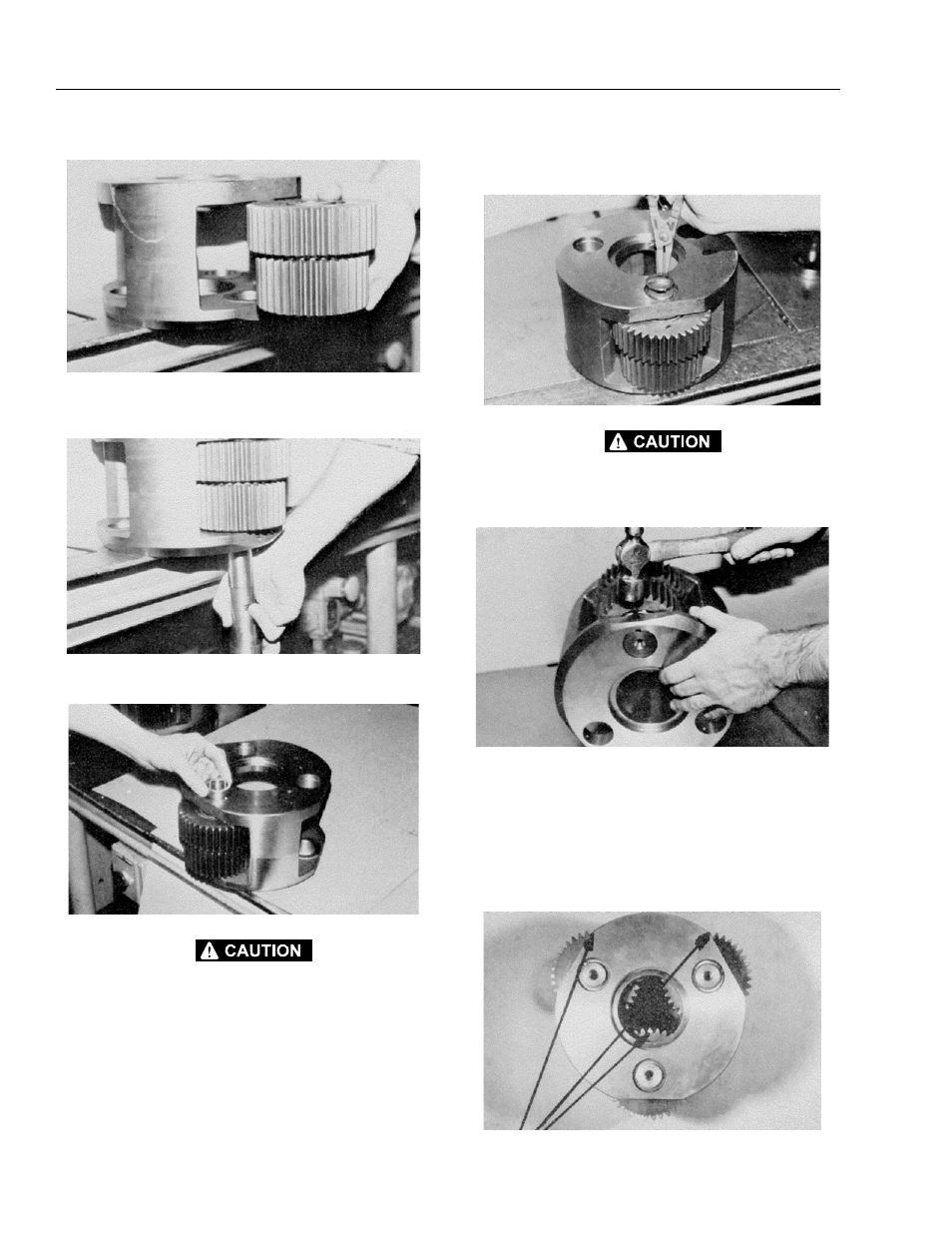

j. Place cluster gear into carrier with large gear up.
k. Slide planet shaft through carrier and cluster
gear from bottom side. Slot in planet shaft must
line up with roll pin hole in edge of carrier.
l. While holding planet shaft in position, slide cor-
rect spacer onto planet shaft.
EYE PROTECTION SHOULD BE WORN DURING RETAINING RING
INSTALLATION.
m. Place carrier on table with something under
planet shaft to hold it in correct position and
install retaining ring (25).
EYE PROTECTION SHOULD BE WORN DURING THIS OPERATION.
n. Drive roll pin (24) into carrier. Use a punch to
drive roll pin completely into planet shaft.
o. Repeat steps (a) through (n) for remaining two
cluster gears.
10. Time carrier gears as follows:
a. Place carrier assembly on a flat surface, posi-
tioning two top gears at ten o’clock and two
o’clock, and one bottom gear at six o’clock as
shown in Figure 2-22., Torque Hub Carrier Tim-
ing.
