JLG G6-42A Operator Manual - Manual (Page 53)

Section 3 - Controls and Indicators
3-13 31200744
G9-43A If Equipped, G10-43A

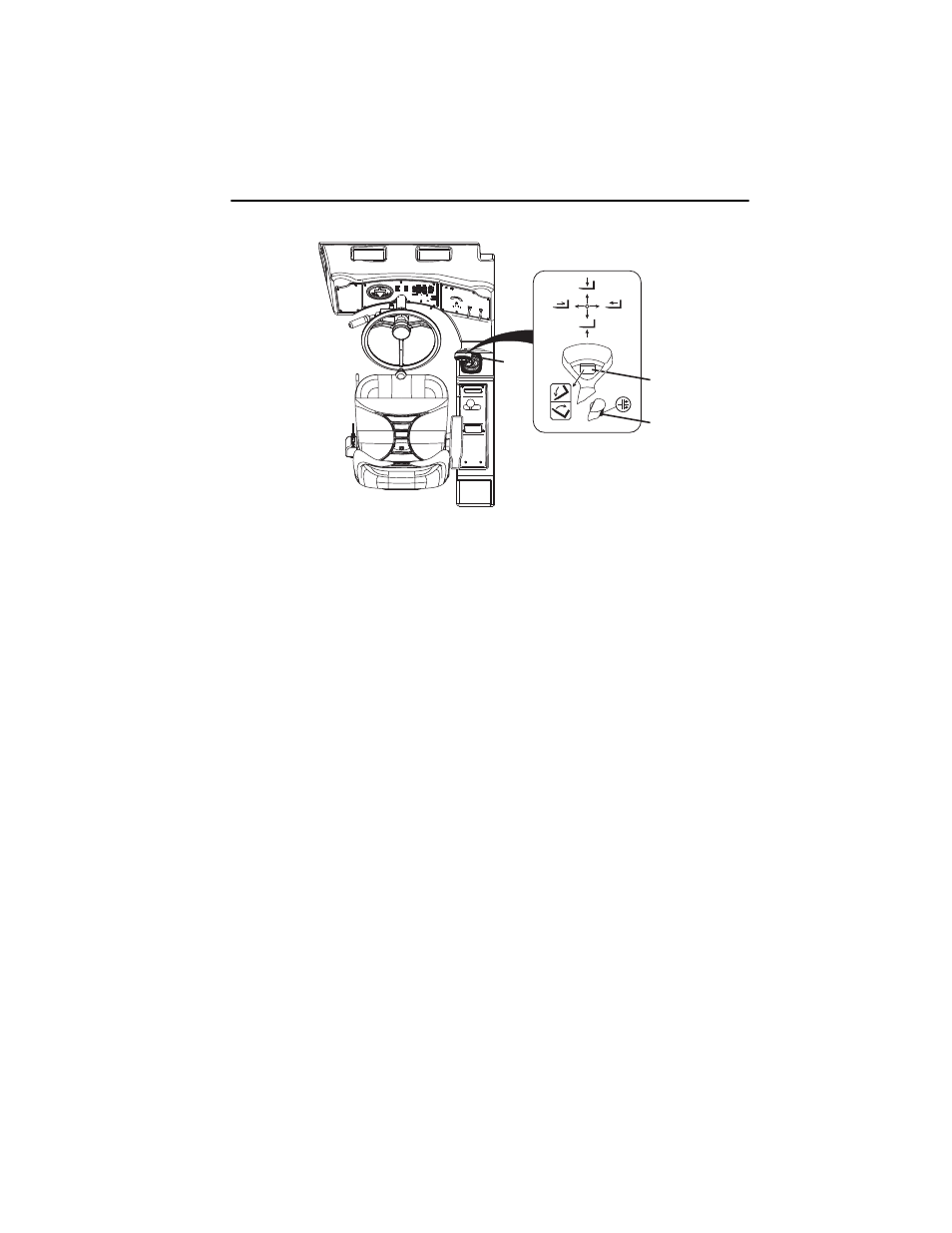

The boom joystick (1) controls the boom, attachment tilt and clutch lock functions.
Boom Functions
• Move the joystick back to lift boom; move joystick forward to lower boom; move
joystick right to extend boom; move joystick left to retract boom.
• Speed of boom functions depends upon amount of joystick travel in corresponding
direction. Increasing engine speed will also increase function speed.
• For two simultaneous boom functions, move the joystick between quadrants.
For example; moving the joystick forward and to the left will lower and retract
boom simultaneously.
Attachment Tilt Function
Attachment tilt is controlled by the roller switch (4).
• Push roller switch up to tilt attachment down; push roller switch down to tilt
attachment up.
Clutch Lock
Clutch Lock is controlled by the joystick trigger (5).
• Squeeze and release trigger once to disengage the transmission. Quickly
squeeze and release trigger twice to re-engage the transmission.
