Section 5 - Attachments
5-36 31200744
Truss Boom
Use Appropriate Truss Boom Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-4.
Suspend loads in accordance with requirements set forth in Section
1 - General Safety Practices.

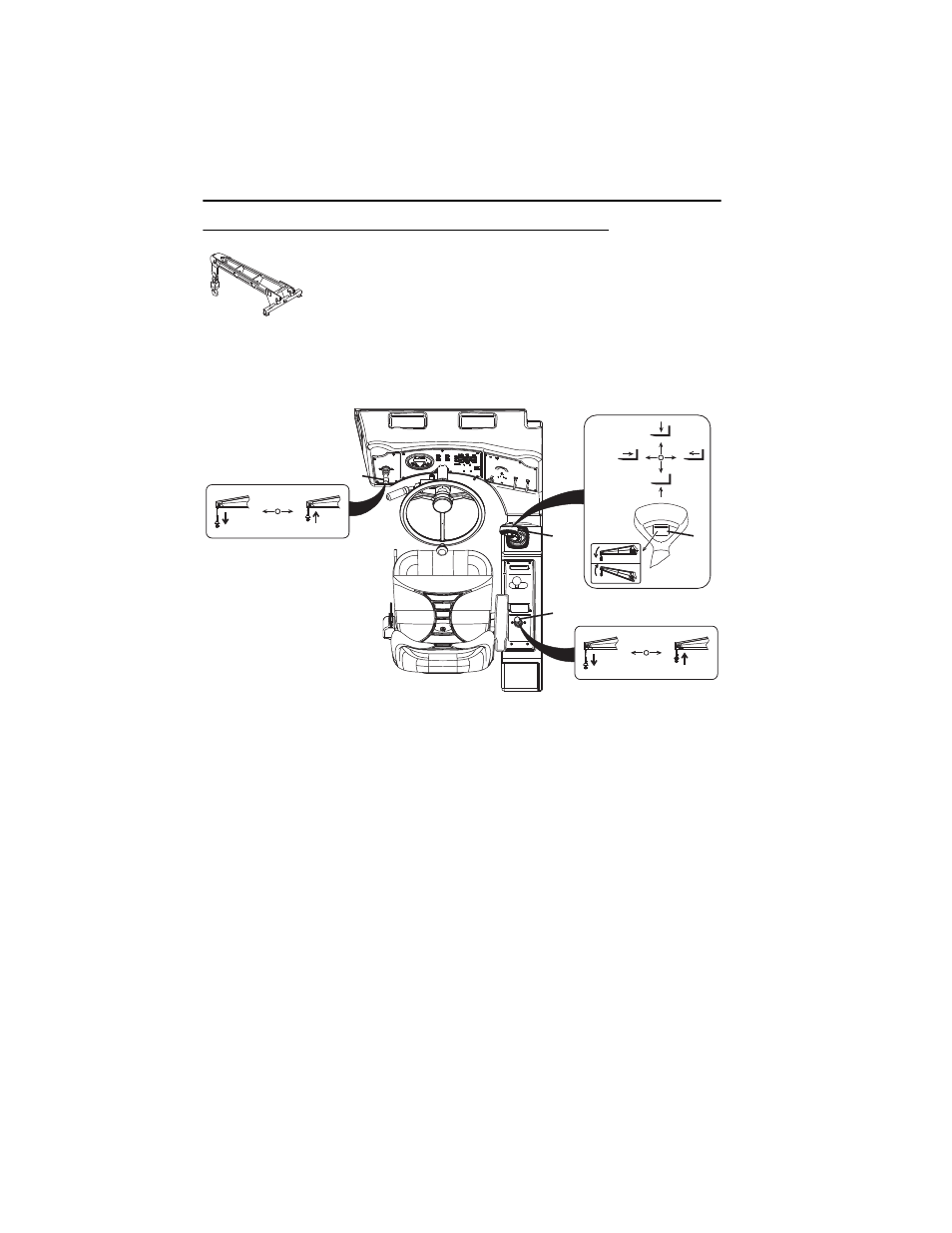

The joystick (1) controls lift/lower and extend/retract movement of the boom.
The tilt roller switch (2) controls truss boom tilt.
• Press roller switch down to tilt up.
• Press roller switch up to tilt down.
Winch Control (if equipped):
The auxiliary hydraulic joystick (3) controls the truss boom mounted winch.
• Move joystick left to lower cable.
• Move joystick right to raise cable.
OY0570
OY3410
3
1
3
2
G9-43A
G10-43A
