Fork Mounted Hook
Use Appropriate Carriage Attachment Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-4.
Suspend loads in accordance with requirements set forth in Section
1 - General Safety Practices.

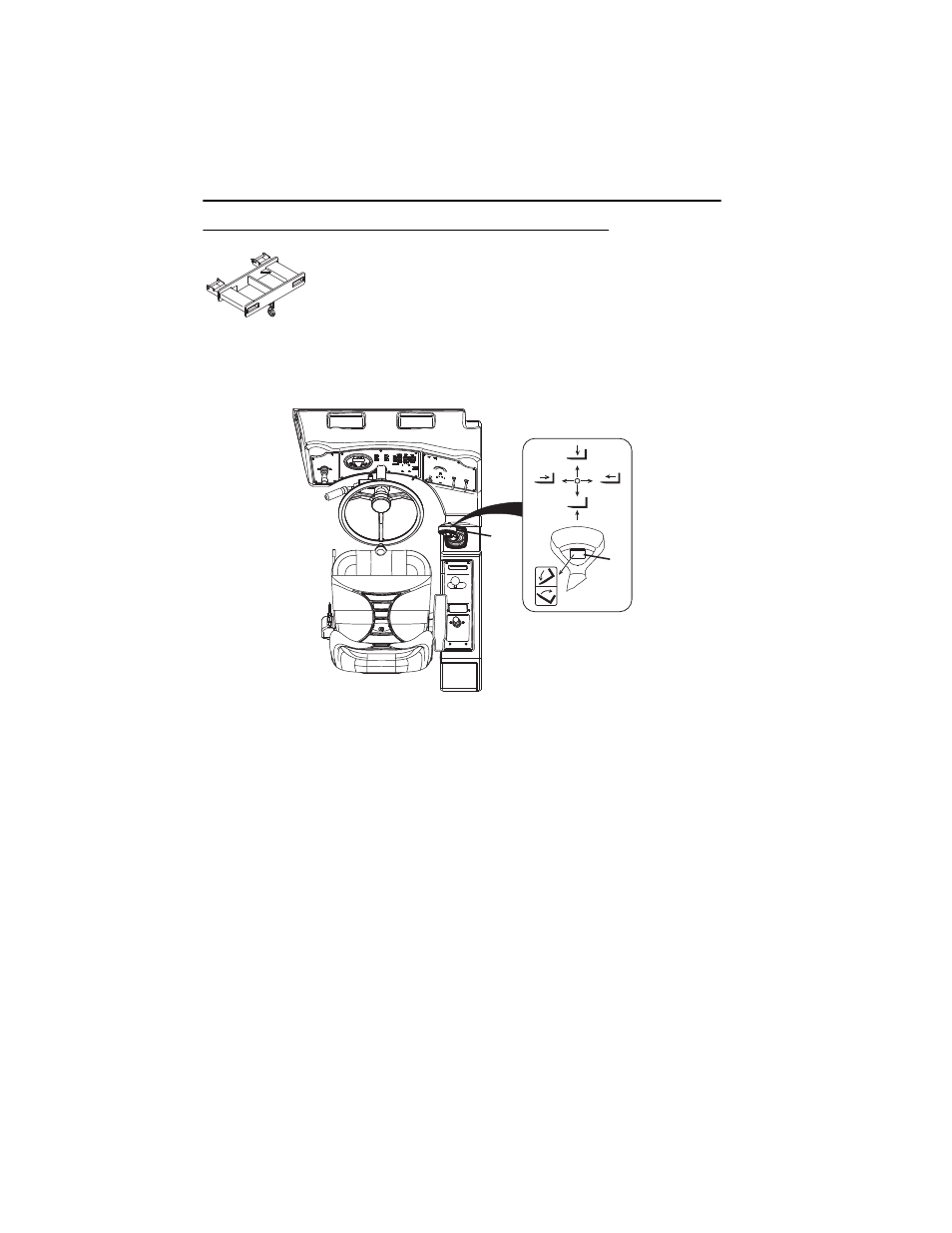

The joystick (1) controls lift/lower and extend/retract movement of the boom.
The tilt roller switch (3) controls fork tilt.
• Press roller switch down to tilt up.
• Press roller switch up to tilt down.
Installation Procedure:
• Ensure carriage is properly installed. Refer to “Attachment Installation” on
• Secure the fork mounted hook to the forks by sliding the fork mounted hook onto
the parent forks and install the retaining pin behind the vertical shank of the fork.
OY0640
OY3320
1
2
