JLG G6-42A Operator Manual - Manual (Page 84)

Section 5 - Attachments
5-8 31200744
Example
A contractor owns a model xxxxx telehandler with a fork carriage. He knows this
attachment may be used with his model since:
• The attachment style, weight, dimensions and load center match the attachment
data on the capacity chart.
• The capacity chart is clearly marked for model xxxxx and corresponds with
machine configuration being used.
Below are examples with various conditions the contractor may encounter and
whether or not the load may be lifted.

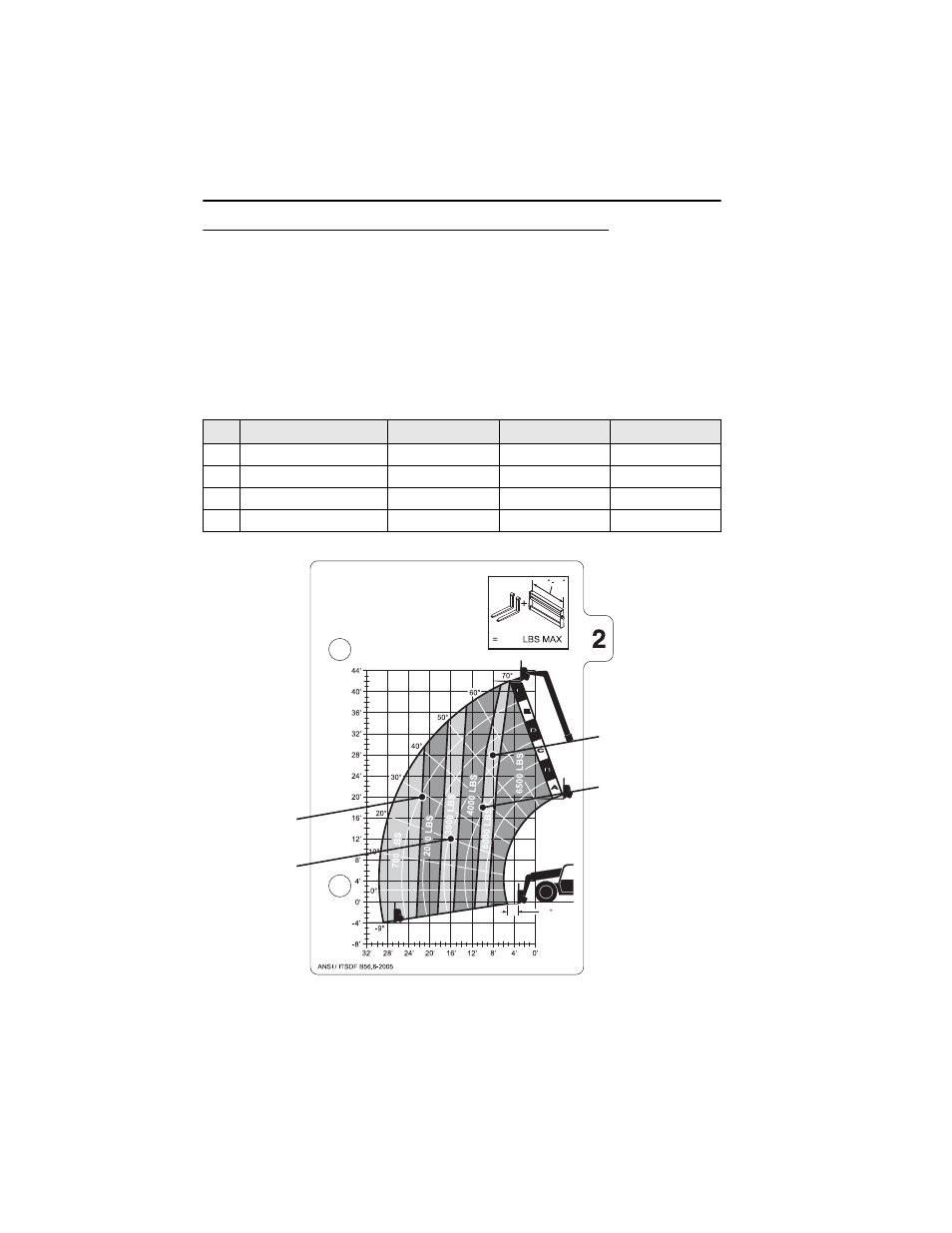

Note: This is a sample capacity chart only! DO NOT use this chart, use the one
located in your operator cab.
Load Weight Distance Height OK to Lift
1 2500 lb (1134 kg) 16 ft (4,9 m) 12 ft (3,6 m) Yes
2 2000 lb (907 kg) 21 ft (6,4 m) 20 ft (6,1 m) NO
3 4000 lb (1814 kg) 10 ft (3,0 m) 18 ft (5,5 m) Yes
4 6500 lb (2948 kg) 8 ft (2,4 m) 28 ft (8,5 m) NO
XXXXX
XXXX
XX XX
XX
OAL1080
Example 2
Example 1
Example 3
Example 4
