Section 5 - Attachments
5-22 31200744
Dual Fork Positioning Carriage
Use Dual Fork Positioning Carriage Capacity Chart
To determine maximum capacity, refer to “Telehandler/
Attachment/Fork Capacity” on page 5-4.

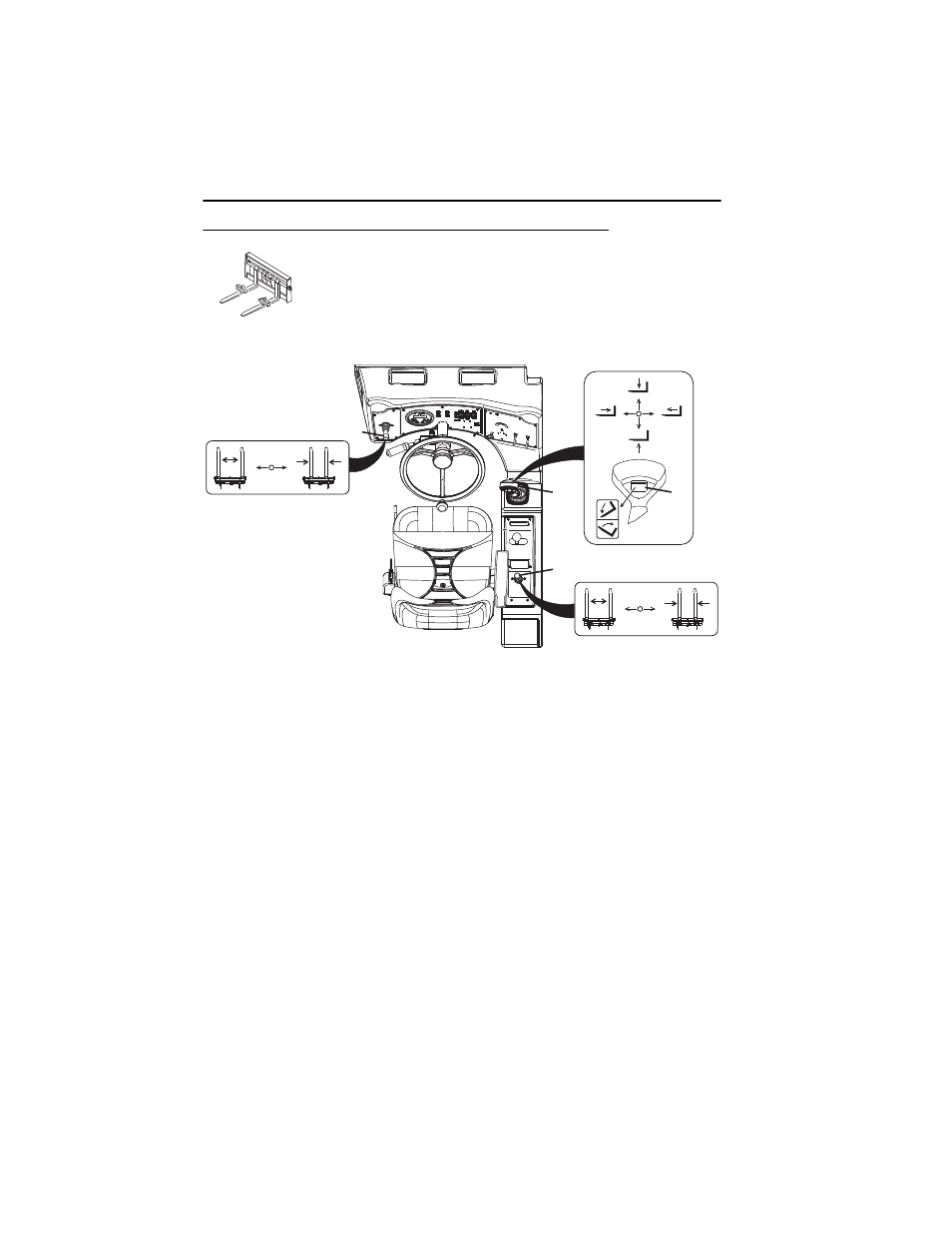

The joystick (1) controls lift/lower and extend/retract movement of the boom.
The tilt roller switch (3) controls fork tilt.
• Press roller switch down to tilt up.
• Press roller switch up to tilt down.
To Fork Position:
The auxiliary hydraulic joystick (4) controls fork position.
• Move joystick left to shift forks out.
• Move joystick right to shift forks in.
Installation Procedure:
• Refer to “Attachment Installation” on page 5-9.
OZ3670
OY3360
3
1
3
2
G9-43A
G10-43A
