SECTION 4 - MACHINE OPERATION
4-16
– JLG Lift –
3121165
1. Chock wheels or secure machine with tow vehicle.
2. Ensure E-stop button is pushed in to the "OFF" posi-
tion.
3. Remove the two cover bolts (2) and brake cover (1).
4. Insert the cover bolts (2) into the two disengage
holes (3) in the brake housing, see item 3 in Figure 4-
6., Manual Disengage.
5. Tighten down the cover bolts (2) and the brake on
that drive motor will disengage.
6. Repeat this procedure on opposite wheel drive. With
both drive motor brakes now disengaged, the
machine can be moved manually.
7. After towing is complete, chock wheels and remove
cover bolts (2) from disengage holes (3).
8. Reinstall brake cover (1).
AFTER THE MACHINE IS TOWED, THE DISENGAGE BOLTS MUST BE REMOVED
FROM THE BRAKE DISENGAGE HOLES. THE BRAKES CANNOT BE ENGAGED
WITH THE DISENGAGE BOLTS IN THE BRAKE DISENGAGE HOLES. THIS WILL
CAUSE THE MACHINE TO ROLL WHEN PARKED ON AN INCLINE.

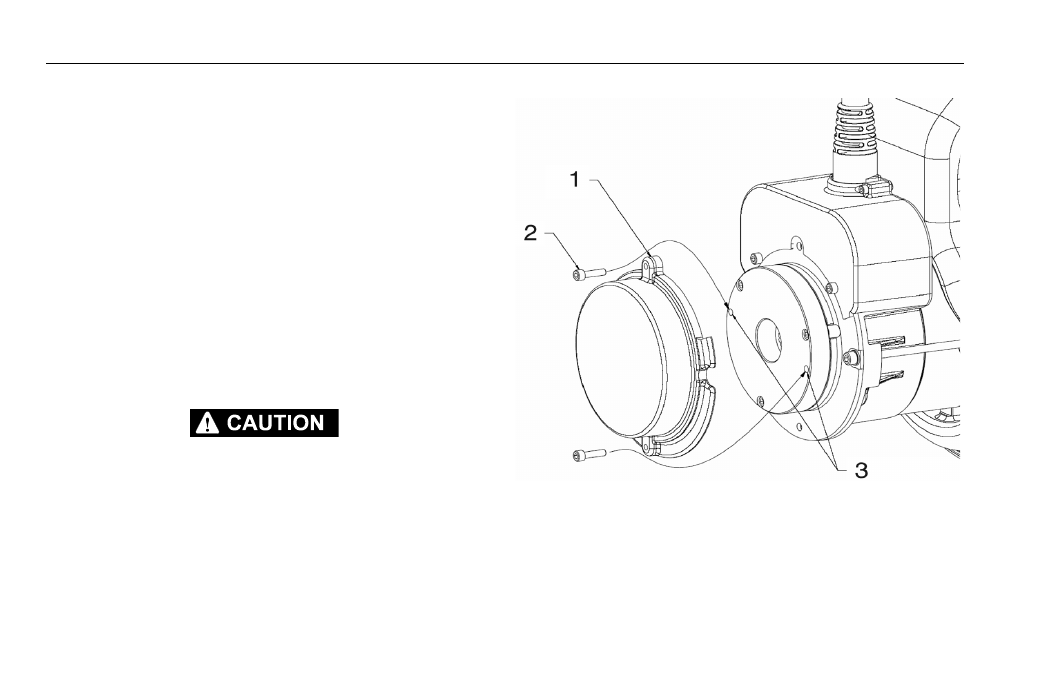

Figure 4-6. Manual Disengage
