SECTION 3 - USER RESPONSIBILITIES AND MACHINE CONTROLS
3-4 – JLG Lift – 3121165
.
4. Battery Charger Status - This panel, located to the right
of the ground control box, is designed to give the
operator an accurate read on the status of the battery
charger.
a. Green = Charge complete
b. Yellow = Charging in process
c. Red = Charging abnormal
1
2
3

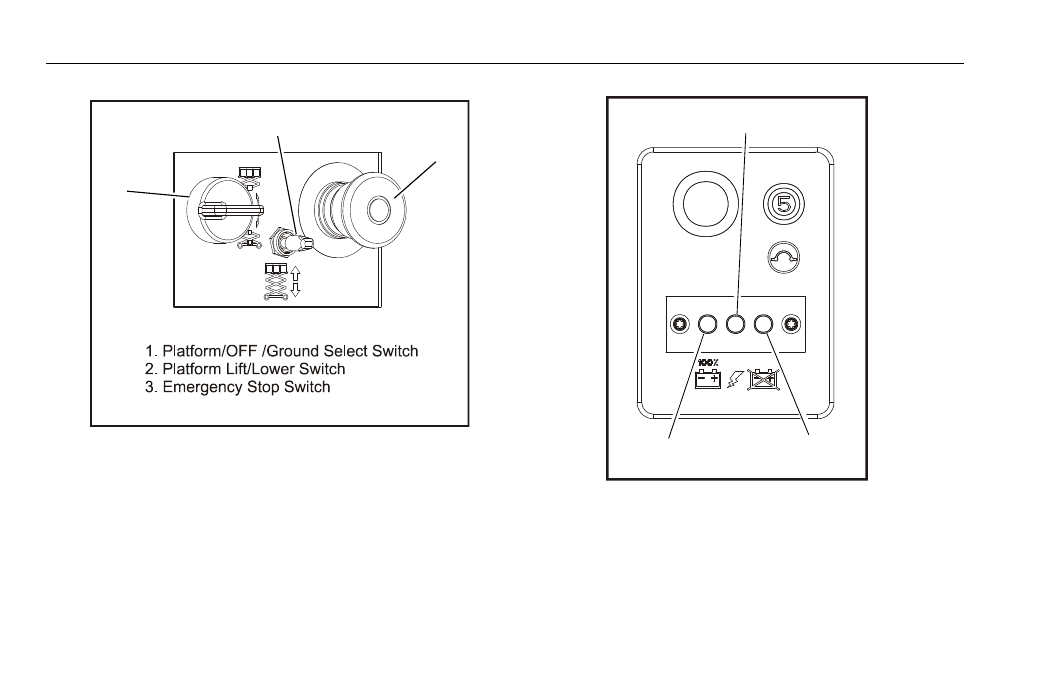

Figure 3-1. Ground Control Station
GREEN
YELLOW
RED
Figure 3-2. Battery Charger Status
