SECTION 2 - USER RESPONSIBILITIES, MACHINE PREPARATION & INSPECTION
2-8 – JLG Lift – 3121165
1
2
SWITCHES THROUGHOUT
MACHINE
NOTE: Item 2 - location for machines prior to S/N’s:
1930ES - USA built - S/N 0200150266
- Belgium built - S/N 1200007882
2030ES/2630ES - USA built - S/N 0200152825
- Belgium built - S/N 1200008481
2646ES/3246ES - USA built - S/N 0200151606
- Belgium built - S/N 1200008265
3
NOTE: Item 1 - location for machines prior to S/N’s:
1930ES - USA built - S/N 0200150266
- Belgium built - S/N 1200007882
2030ES/2630ES - USA built - S/N 0200152825
- Belgium built - S/N 1200008481
2630ES/3246ES - USA built - S/N 0200151610
- Belgium built - S/N 1200008265
1. Pothole Switch - (Typical on
opposite side of machine)
2. Proximity Switch 3. Rotary Angle Switch

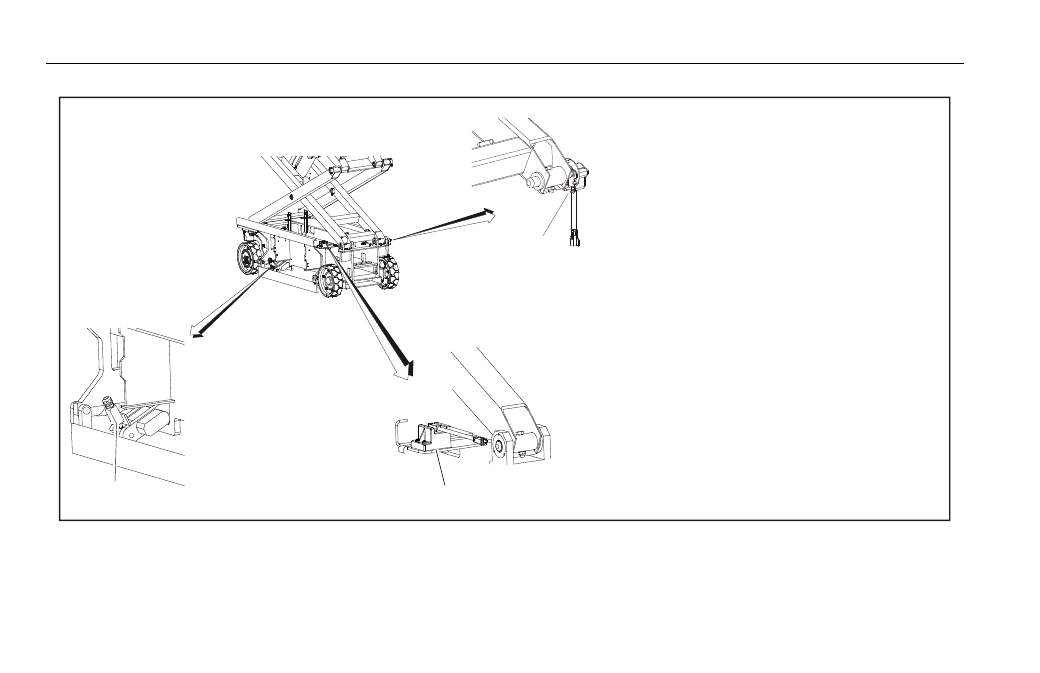

Figure 2-3. Switch Location - 1 of 2
