SECTION 5 - HYDRAULICS
5-12 – JLG Lift – 3121105
2. Front Steer.
a. Steer Select Switch should be in front steer.
b. Operate steer switch right or left to set rear steer
pressure.
c. Pressure should be 2850 psi (197 bar).
3. Axles.
a. Select Switch should be in Axle position, Steer
Select switch should be in Front Wheel Steer
position.
b. Operate axles in and out.
c. Pressure should be:
Axles Out - 2500 psi (172 bar)
Axles In - 2500 psi (172 bar).

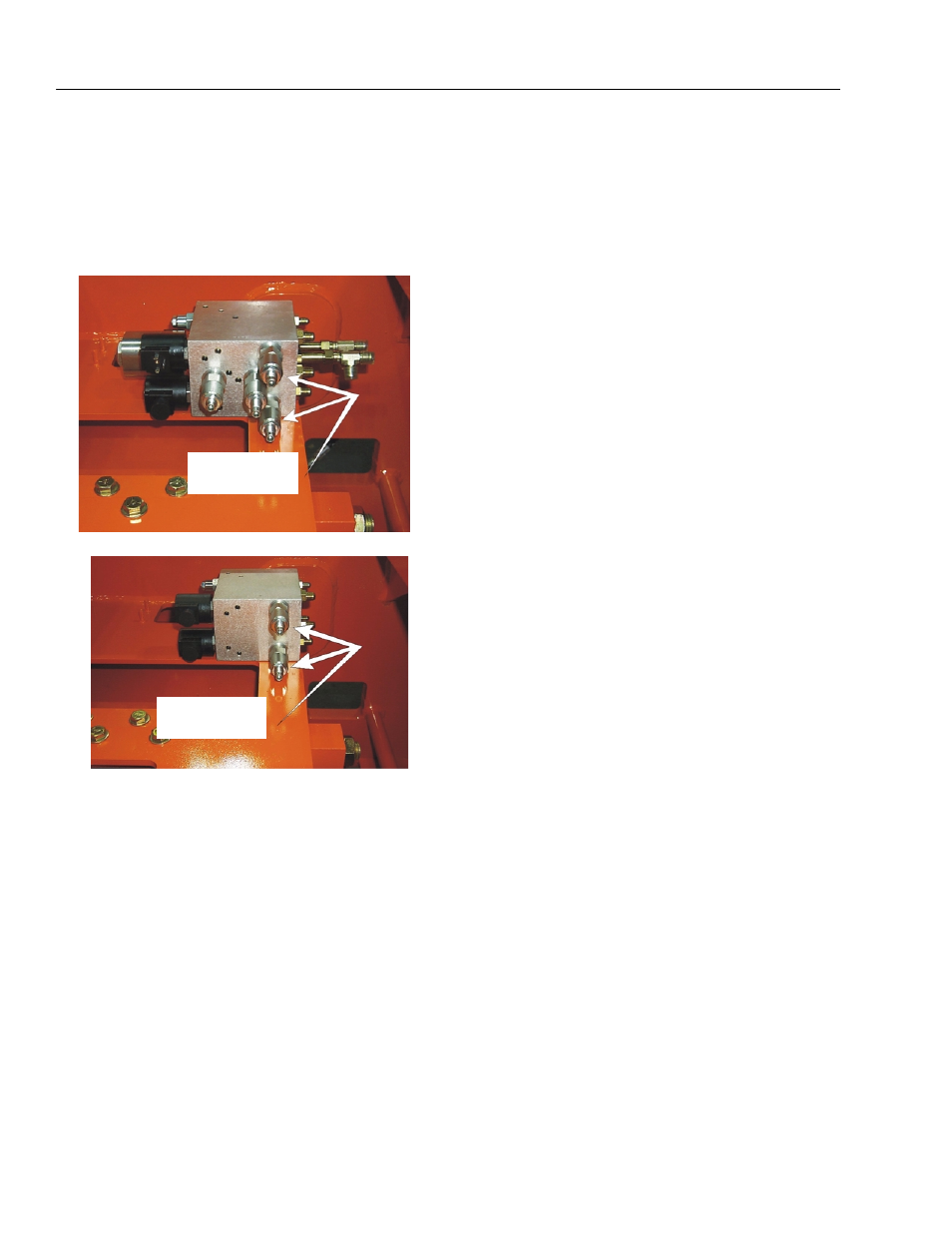

FRONT AXLE
ADJUSTMENTS
REAR AXLE
ADJUSTMENTS
