SECTION 4 - BOOM & PLATFORM
4-12
– JLG Lift –
3121105
4.5
BOOM MARKING TAPE INSTALLATION

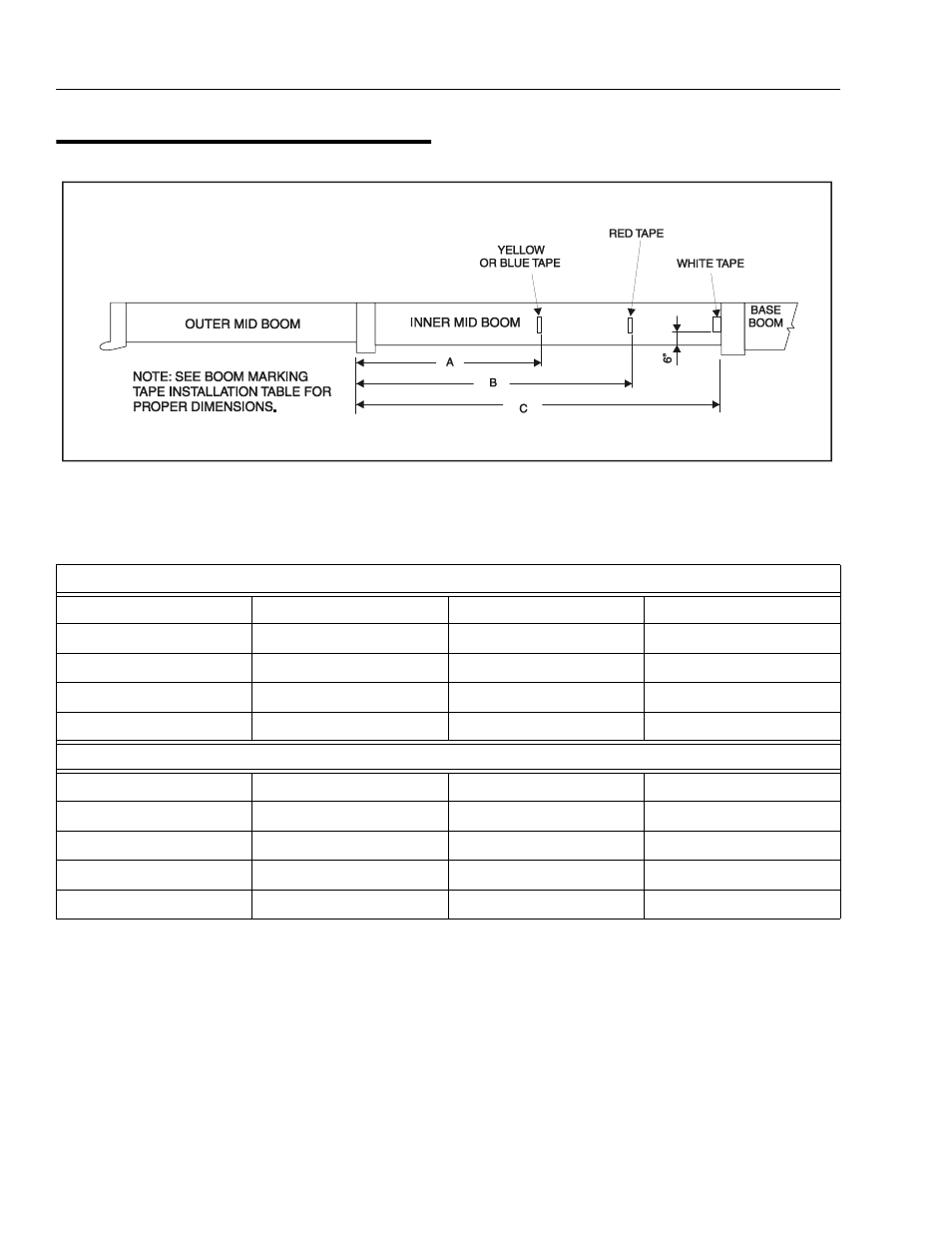

Figure 4-5. Boom Marking Tape Installation
Table 4-2.Boom Marking Tape Installation
w/o Boom Wipers
Model
Dim. A
Dim. B
Dim.C
100SX Dual Capacity
51-1/4 in. (130.2 cm)
90 in. (228.6 cm)
123 in. (312.4 cm)
120SXJ Single Capacity
N/A
54-7/8 in. (139.4 cm)
90 in. (228.6 cm)
110SX Dual Capacity
85-1/2 in. (217.2 cm)
122-1/2 in. (311.2 cm)
160-1/2 in. (407.7 cm)
110SXJ Single Capacity
N/A
78-3/8 (199.1 cm)
129-3/8 in. (328.6 cm)
w/Boom Wipers
Model
Dim. A
Dim. B
Dim. C
100SX Dual Capacity
49-1/8 in (124.8 cm)
87-7/8 in. (223.2 cm)
120-7/8 in. (307.8 cm)
120SXJ Single Capacity
N/A
52-7/8 in. (134.3 cm)
88 in. (223.5 cm)
110SX Dual Capacity
83-3/8 in. (211.8 cm)
120-3/8 in. (305.8 cm)
158-3/8 in. (402.3)
110SXJ Single Capacity
N/A
76-3/8 (193.9 cm)
127-3/8 in. (323.5 cm)
