SECTION 3 - MACHINE CONTROLS, INDICATORS AND OPERATION
3121637 – JLG Lift – 3-11

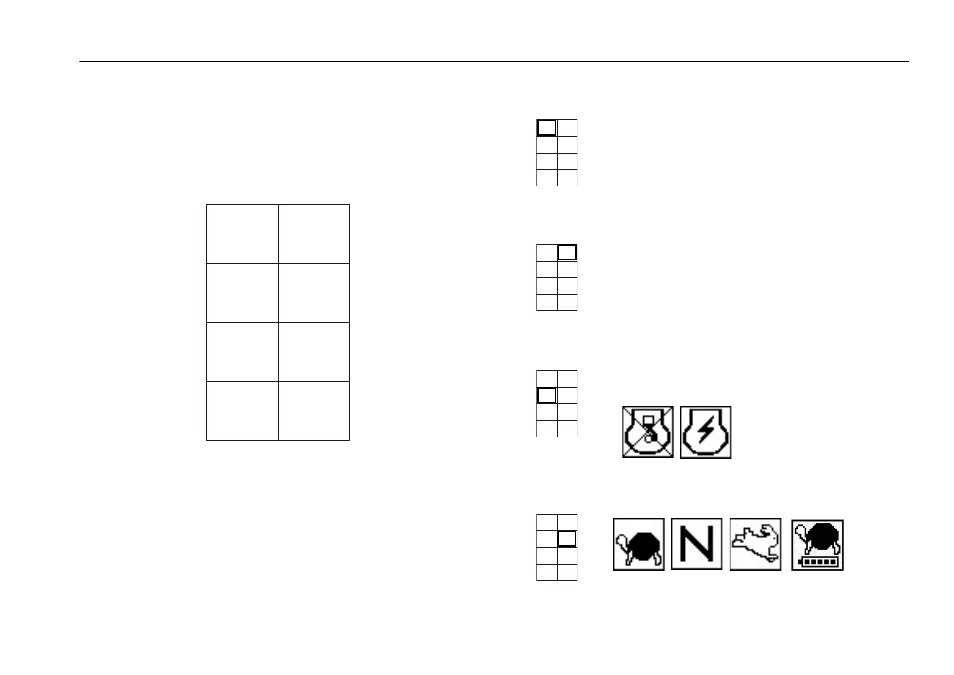

Platform/Remote Control Station LCD Display
At machine start-up and during machine operation the main
LCD display screen (item 15 - Figure 3-2.) is activated. There
are eight (8) display positions which indicate machine status
during various stages of operation.
1 2
3 4
5 6
7 8
Position 1 Not Used.
Position 2 Not Used.
Position 3 Displays the selected engine (gas/diesel or
electric) and whether it is on or off. The X on
the icon indicates the engine is off.
Position 4 Displays the selected engine speed.
