SECTION 6 - GENERAL SPECIFICATIONS AND OPERATOR MAINTENANCE

6-6

– JLG Lift –

3121637

6.3

SERVICE/MAINTENANCE

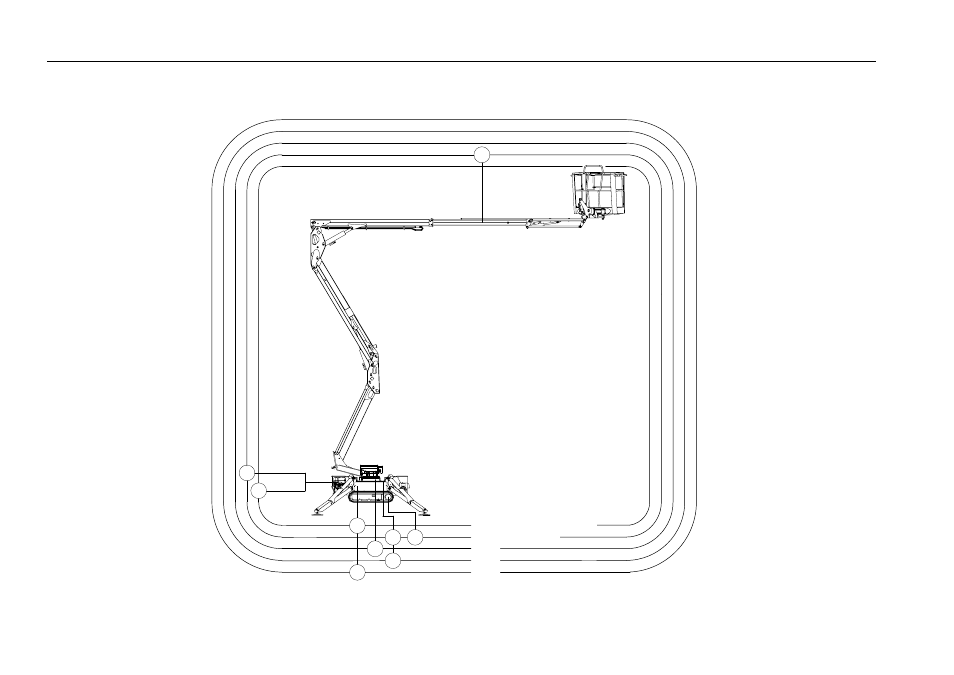

Figure 6-1. Lubrication and Maintenance Point Locations

* a seconda di quello piu corto

M=OLIO MOTORE
T=OLIO TRASMISSIONE
I=OLIO IDRAULICO
G=GRASSO

500 h

250 h

100 h

50 h ( o una settimana)*

10 h ( o un periodo di lavoro a squadra)*

G

M

M

I

I

G

T

I

I

0,5
0,5

A

0,5
0,5

A

1
0,5

C

1
0,5

C

M= ENGINE OIL

T = TRANSMISSION OIL

I = HYDRAULIC OIL

G = GREASE

(

OR ONE WORK SHIFT

)*

(

OR ONE WEEK

)*

*

WHICHEVER IS SHORTER
