SECTION 3 - CHASSIS & TURNTABLE
3121200 – JLG Lift – 3-55
and washers through the turntable and inner race of
the bearing.
14. Following the Torque Sequence diagram shown in
Figure 3-18., Swing Bearing Torque Sequence,
tighten the bolts to a torque of 130 ft.lbs. (180 Nm)
w/Loctite.
15. Remove the lifting equipment.
16. Connect the hydraulic lines to the fittings on the
turntable as tagged prior to removal.
17. At ground control station, use boom lift control to
lower boom to stowed position.
18. Using all applicable safety precautions, activate the
hydraulic system and check the swing system for
proper and safe operation.
Swing Bearing Torque Values
1. Outer Race - 130 ft.lbs. (180 Nm)
2. Inner Race - 130 ft.lbs. (180 Nm)
3. See Swing Bearing Torquing Sequence.
CHECK THE INNER AND OUTER SWING BEARING BOLTS FOR
MISSING OR LOOSENESS AFTER FIRST 50 HOURS OF OPERA-
TION, AND EVERY 600 HOURS THEREAFTER.

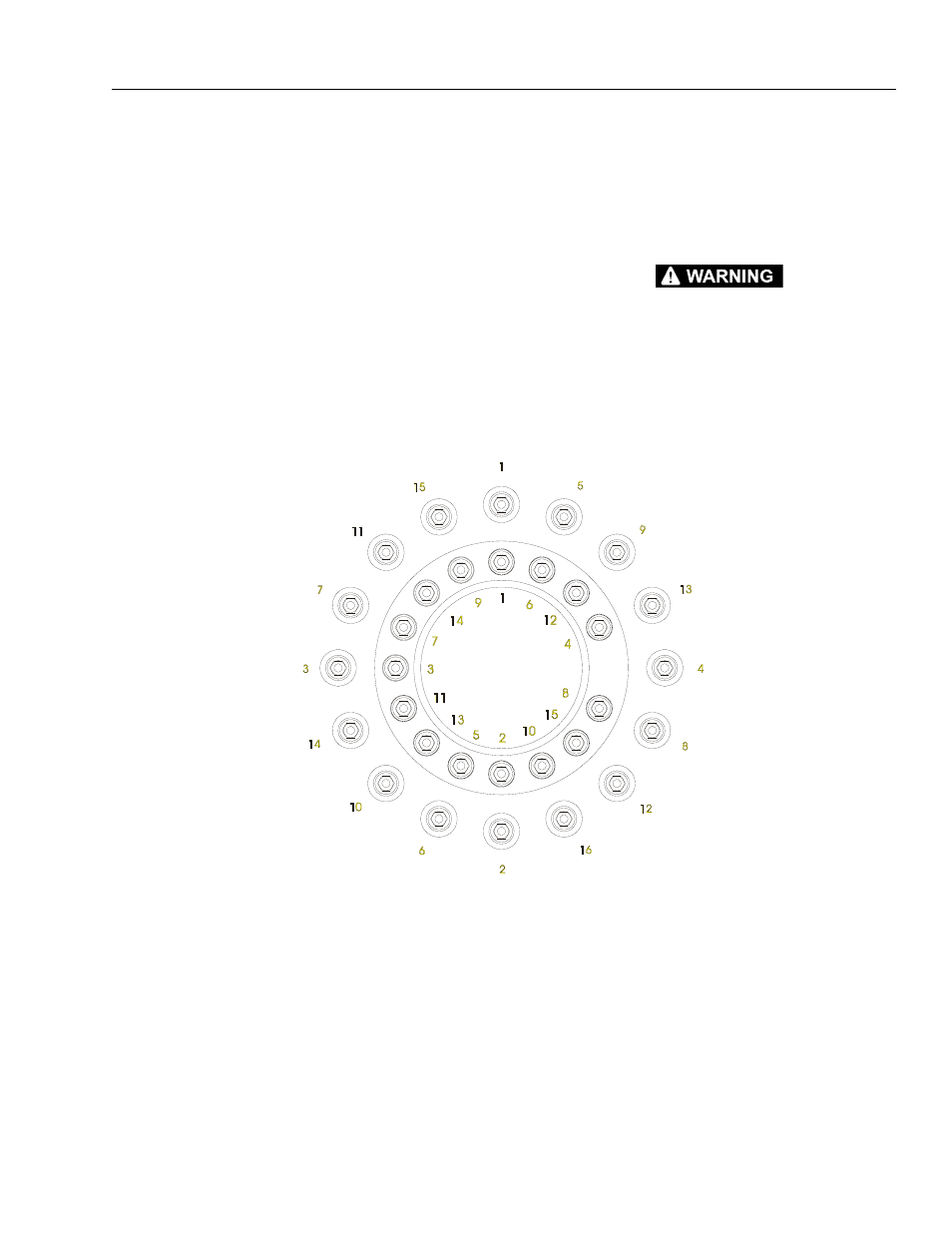

Figure 3-18. Swing Bearing Torque Sequence
NOTE: Swing Bearing Torque Sequence is typical for both inner and outer races.
