SECTION 5 - HYDRAULICS

5-16

– JLG Lift –

3121200

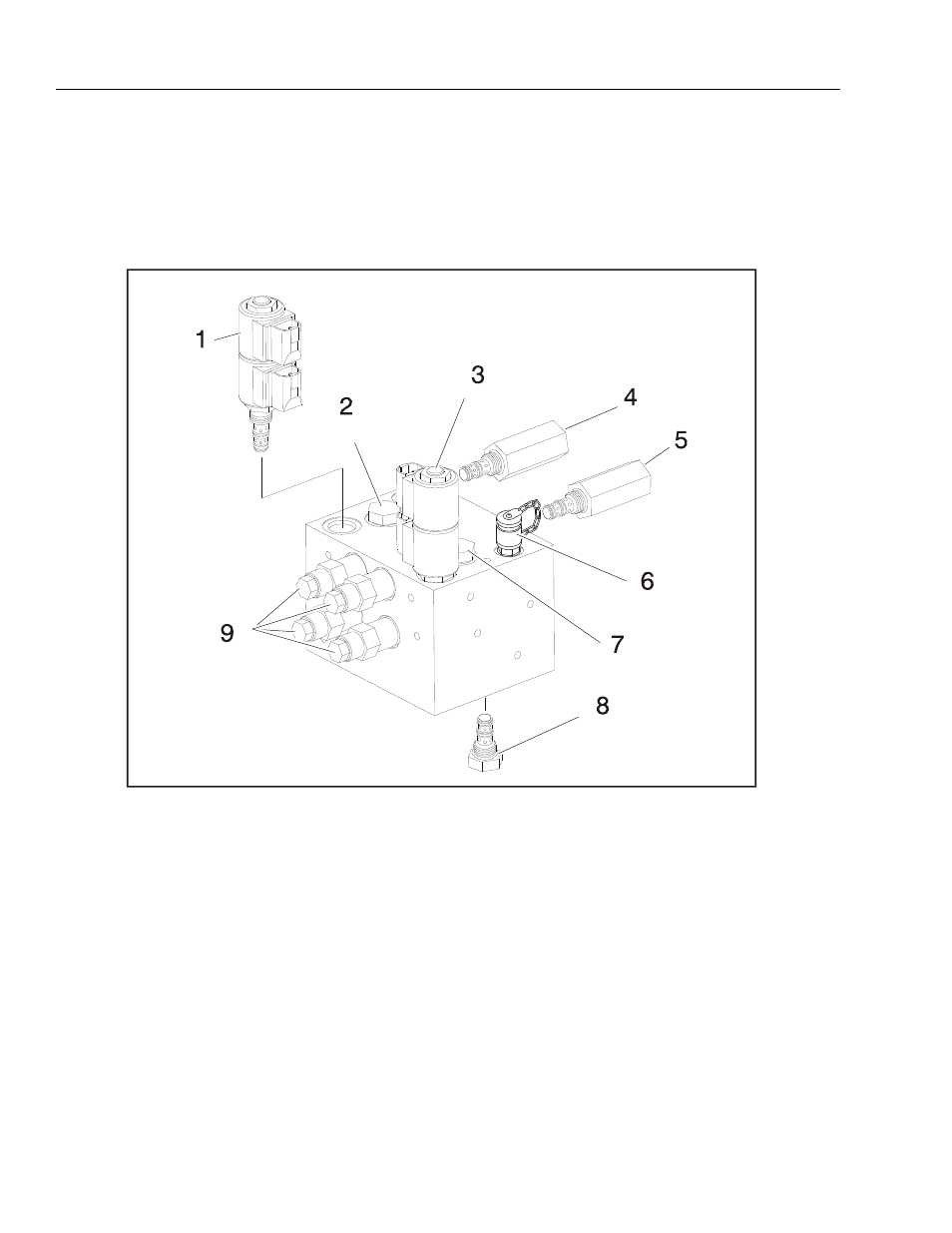

1. Left Drive Valve
2. Shuttle Valve (LS2)
3. Right Drive Valve
4. EP2
5. EP1

6. Pressure Check
7. Shuttle Valve (LS1)
8. Shuttle Valve (LS3)
9. Counterbalance Valves

Figure 5-8. Drive Directional Valve Identification - Drive & Set Option
