Page 40
Section 4 - Attachments
4-4
31200487
Example
A contractor owns a model xxxx telehandler with a truss boom. He knows this
attachment may be used with his model since:
• The attachment model/option number, matches the attachment number on the
capacity chart.
• The capacity chart is clearly marked for model xxxx and corresponds with
machine configuration being used.
• The capacity chart part number is available and selected on the LMIS.
Below are examples with various conditions the contractor may encounter and
whether or not the load may be lifted.

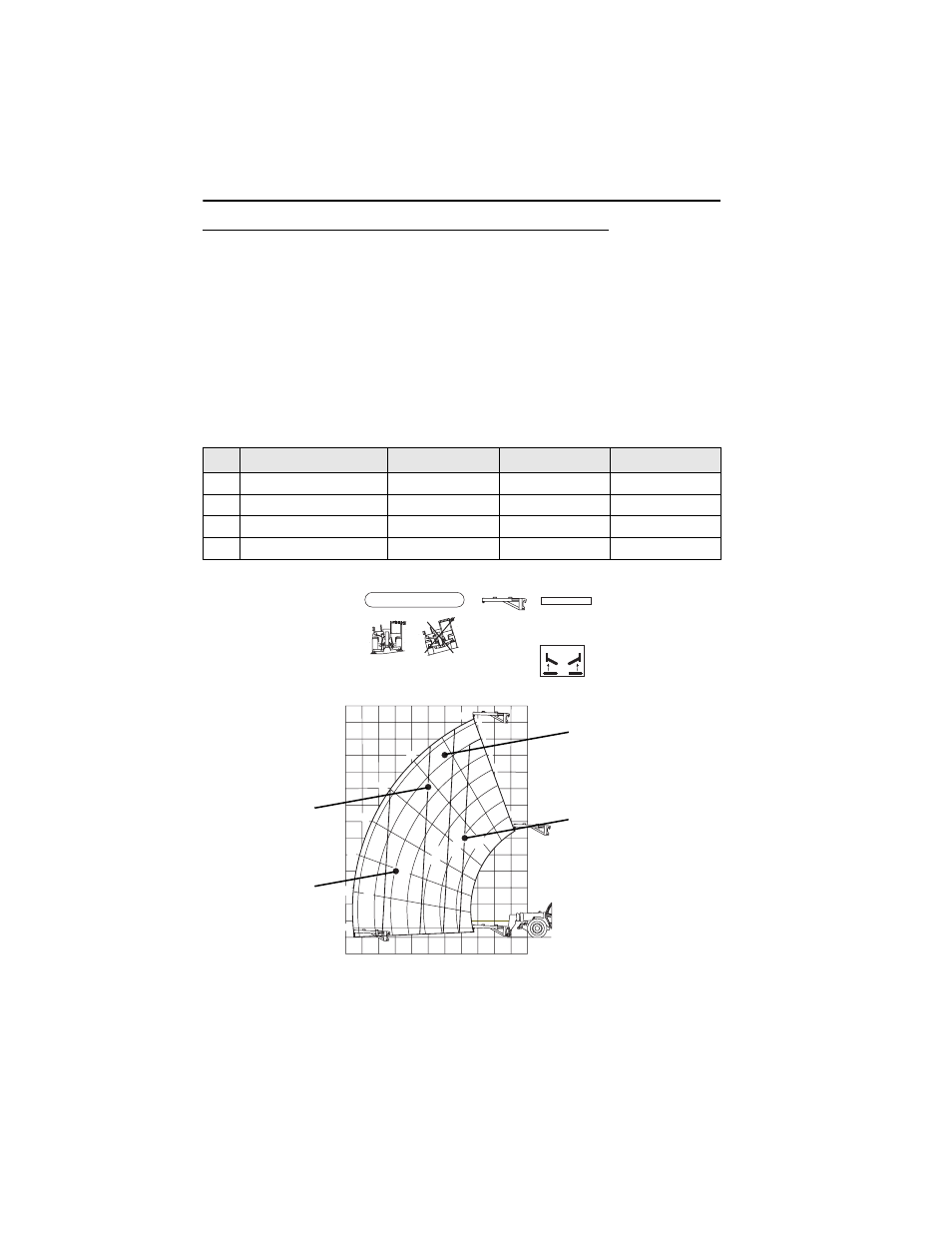

Note: This is a sample capacity chart only! DO NOT use this chart, use the one
located in your operator cab.
Load Weight
Distance
Height
OK to Lift
1
400 kg (882 lb)
8 m (26.2 ft)
4 m (13.1 ft)
Yes
2
1000 kg (2,205 lb)
6 m (19.7 ft)
9 m (29.5 ft)
NO
3
1500 kg (3,307 lb)
4 m (13.1 ft)
6 m (19.7 ft)
Yes
4
1250 kg (2,756 lb)
5 m (16.4 ft)
11 m (36.1 ft)
NO
OAM2321
P/N XXXXXXXX
XXXX
14
0°
10°
20°
30°
40°
50°
60°
70°
A
B
C
D
E
F
G
m
2.000kg
1.500kg
1.000kg
500kg
250kg
13
12
11
10
9
8
7
6
5
4
3
2
1
0
11
10
9
8
7
6
5
4
3
2
1
0
Example 1
Example 3
Example 2
Example 4
