Section 2 - Load Management Indicator System (LMIS)
2-6
31200487

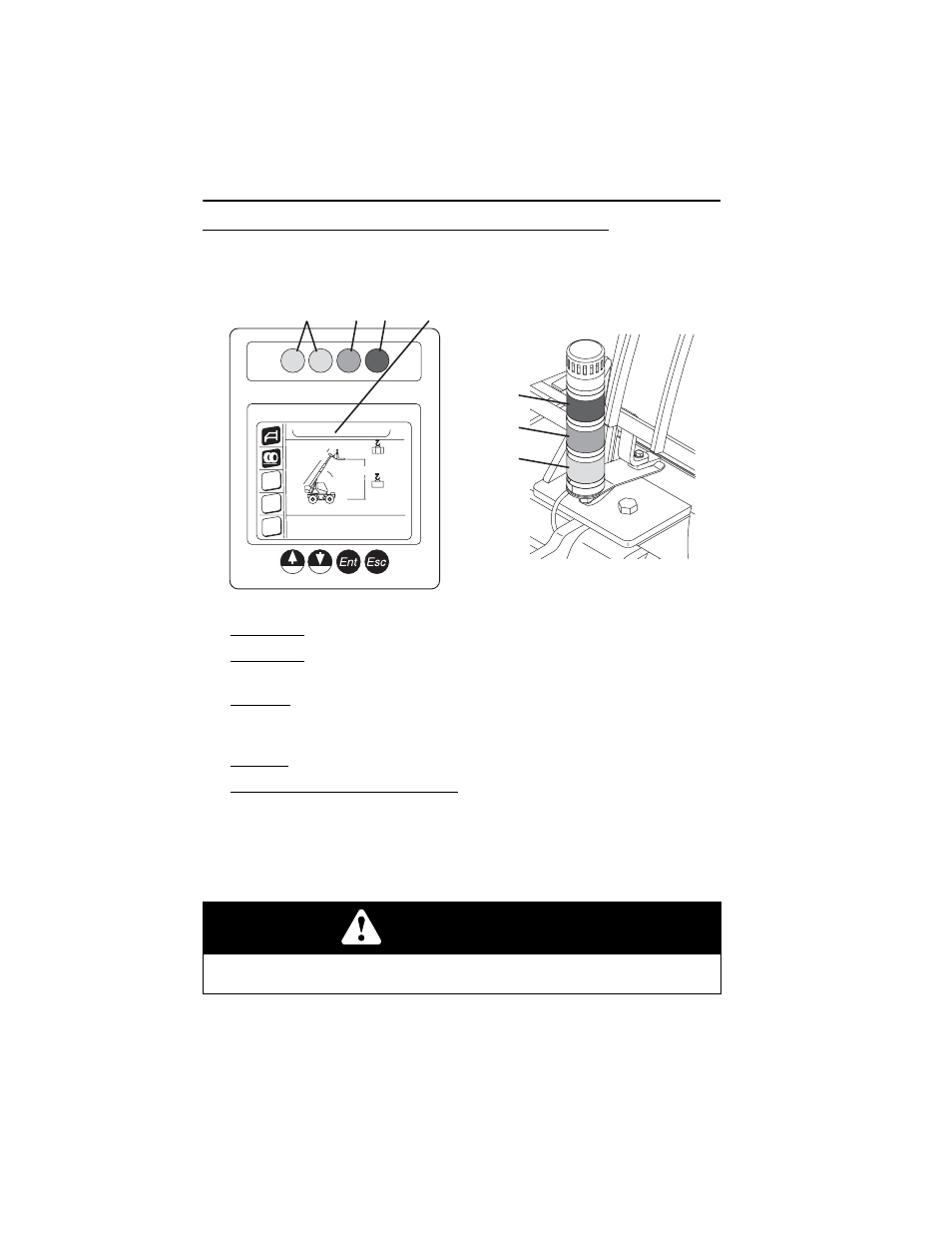

Lifting Conditions and Alarms
The control panel and external audible beacon tower (if equipped) display machine
operating conditions.
1. Green Light - Illuminates when load is less than rated capacity.
2. Yellow Light - Illuminates and intermittent alarm sounds when load is
approaching rated capacity.
3. Red Light - Illuminates and constant alarm sounds when automatic function
cut-out is activated. Certain functions are disabled (i.e. boom lift, extend, etc).
Retract boom to re-enable functions.
4. Bargraph - See page 2-3.
5. Automatic Function Cut-Out Override (not illustrated) - Momentarily disables the
automatic function cut-out. Indicator flashes while activated.
Switch/button and indicator locations vary by model. Refer to the machine
Operation & Safety Manual for location details.
Note: Override will only function for 30 seconds. After 30 seconds, boom functions
will cease and the switch/button will need released and depressed again.
WARNING
TIP OVER HAZARD. Exceeding lift capacity of the telehandler could damage the
equipment and/or cause tip over resulting in death or serious injury.
OZ3121
1
+
-
0.0
0.0
0.0
m
0.0
m
0.0
d
0.0
m
0
t
t
max
2
3
4
1
2
3
VIEW OF EXTERNAL AUDIBLE
BEACON TOWER (IF EQUIPPED)
