Section 4 - Attachments
4-1
31200487
SECTION 4 - ATTACHMENTS
4.1
USE OF THE CAPACITY CHART
To properly use the capacity chart (see page 4-2), the operator must first determine
and/or have the following:
1. A JLG approved attachment.
2. The proper Capacity Chart.
3. Weight of the load being lifted.
4. Load placement information:
a. HEIGHT where the load is to be placed.
b. DISTANCE from the front tires of the telehandler where the load is to be
placed.
5. On the capacity chart, find the line for the height and follow it over to the
distance.
6. The number in the load zone where the two cross is the maximum capacity for
this lift. If the two cross at a division between zones, the smaller number must
be used.
7. For additional operating instructions, refer to the appropriate capacity chart.
The number in the load zone must be equal to or greater than the weight of the load
to be lifted. Determine the limits of the load zone on the capacity chart and keep
within these limits.

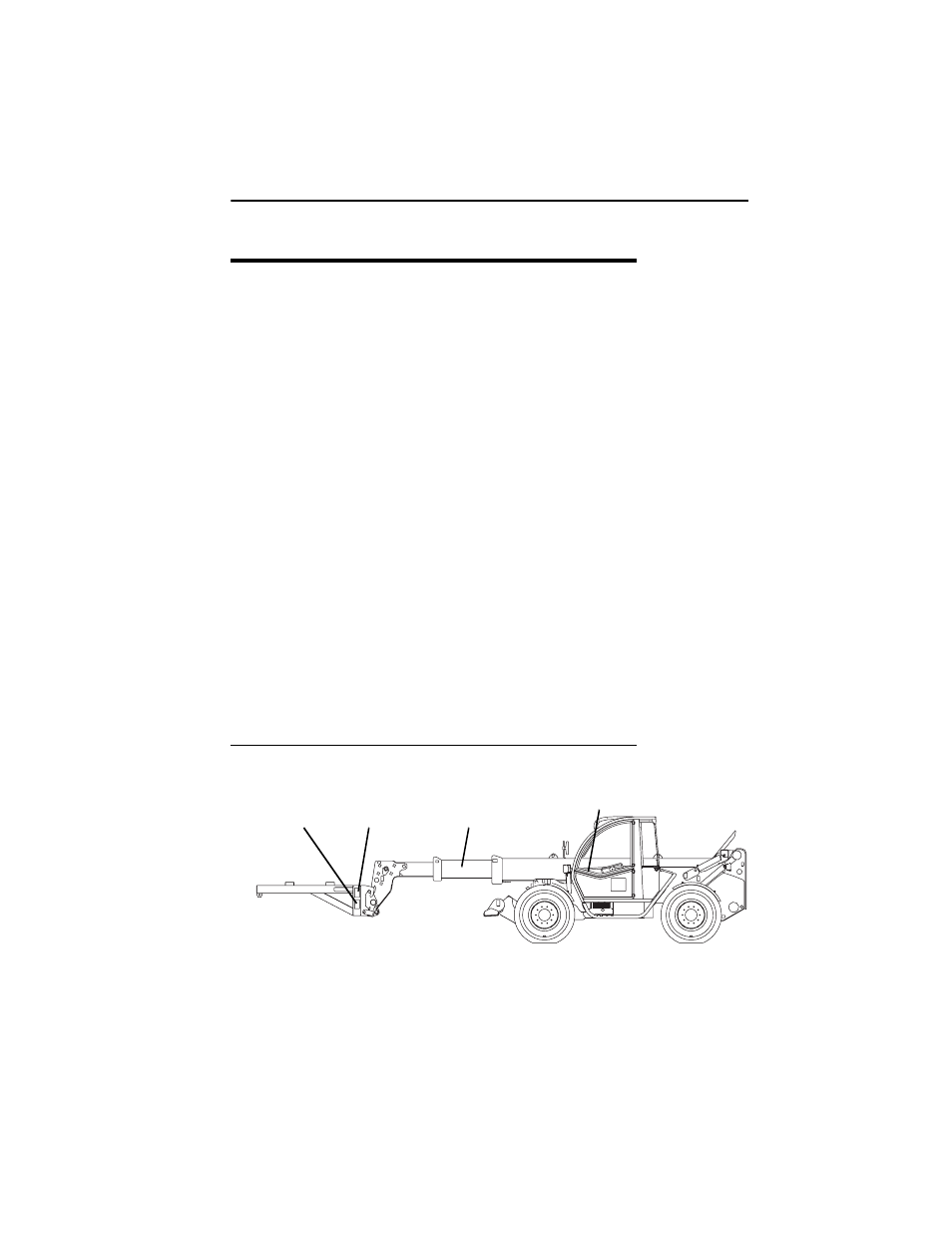

Capacity Indicator Locations
OZ3400
A
B
BOOM EXTENSION
INDICATOR
ATTACHMENT
CAPACITY
PLATE
LMIS CONTROL PANEL
(inside cab)
ATTACHMENT
IDENTIFICATION
PLATE
