SECTION 2 - PROCEDURES
2-54 – JLG Lift – 3120884
3= Motion Alarm - Sounds when any function is
active (Option)
7. PLATFORM ALARM
0= Sounds continuously when above elevation
and tilted only.
1= Sounds continuously when above elevation and
tilted, and in conjunction with fault code flashes
(Option)
8. BATTERY MONITOR
0=No Battery Monitor
1-20= Number of Charge/Discharge Cycles
Level Vehicle Description
A NEW TILT MODULE WILL ACT AS IF IT IS TILTED ALL OF THE
TIME UNTIL THE FOLLOWING PROCEDURE IS PERFORMED.
DO NOT LEVEL VEHICLE EXCEPT ON A LEVEL SURFACE.

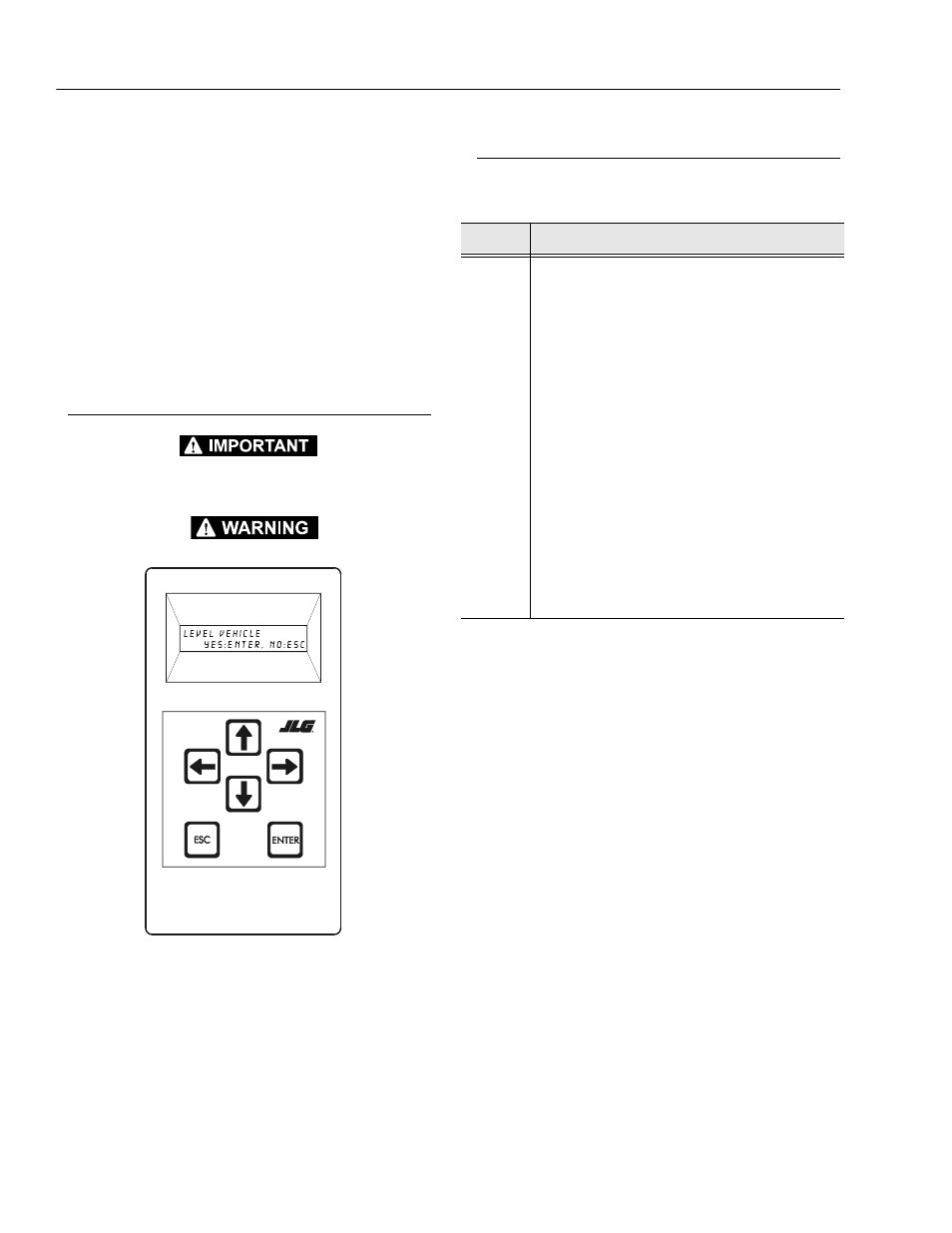

LEVEL VEHICLE
YES:ENTER, NO:ESC
Not available at password level 2 ENTER confirms that
vehicle is currently level, and zeroes the tilt sensor mea-
surements
Help Descriptions and Fault Flash Codes
Table 2-7. JLG Control System Flash Codes
Code Description
2-1
2-2
2-3
2-5
3-1
3-2
3-3
3-5
4-2
4-4
5-5
6-6
7-7
9-9
Faulty Footswitch/EMS
Drive/Steer inputs/Footswitch Interlocks
Boom function inputs/Lift-Swing Joystick
Function Cutout/Drive Cutout
Contactors miswired/Motors miswired
Line contactor welded
Contactor short circuit or valve short circuit
Brake pressure input
Controller Overtemperature
Battery voltage out of range
Speed Sensor input
CANbus inputs
Traction /Pump motor wiring or motor faulty
Power Module Failure
Updated 10-7-99
