SECTION 3 - TROUBLESHOOTING

3-30

– JLG Lift –

3120884

2792337A

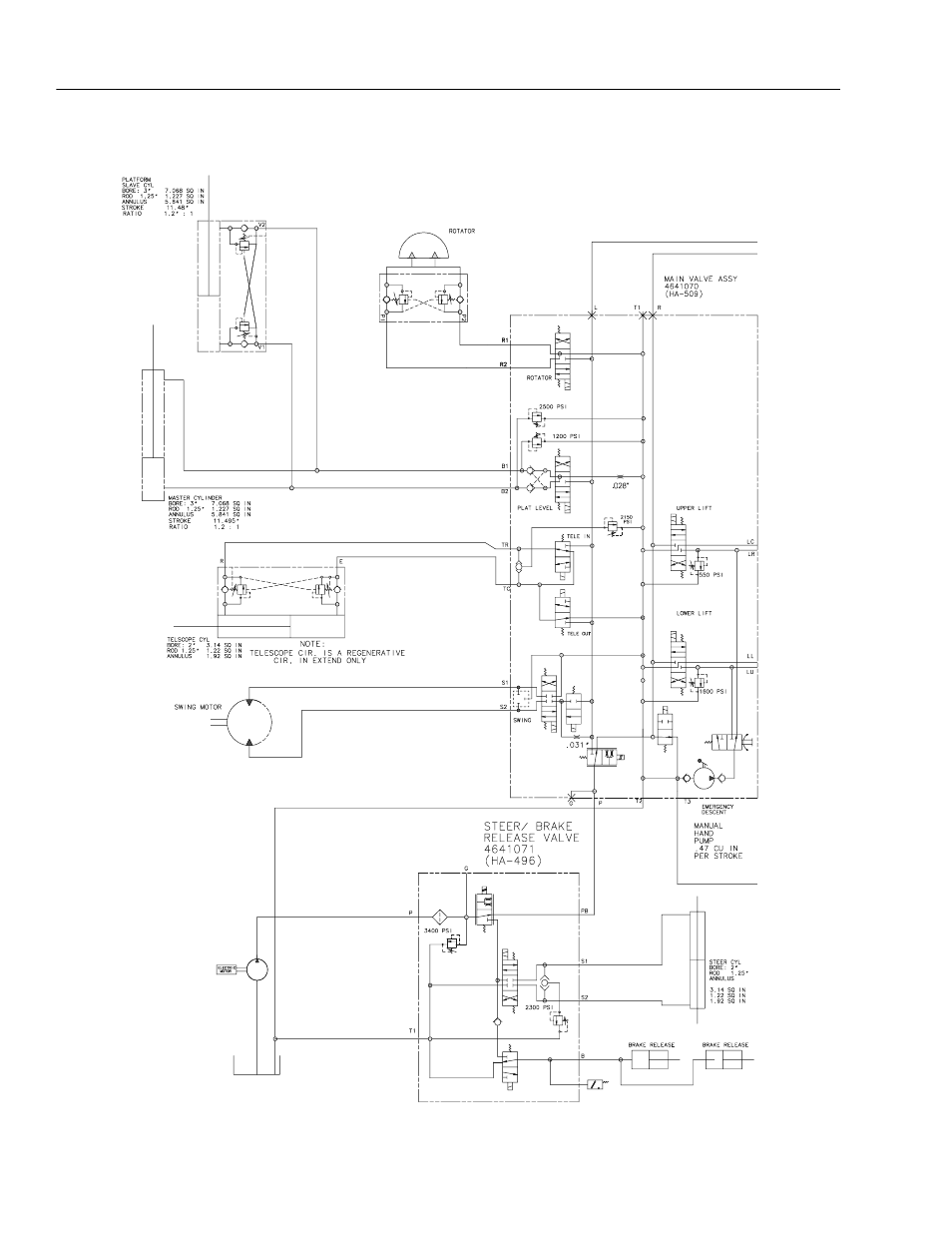

Figure 3-10. Hydraulic Schematic - M45AJ/E45AJ - Sheet 1 of 2
