SECTION 3 - TROUBLESHOOTING

3120884

– JLG Lift –

3-23

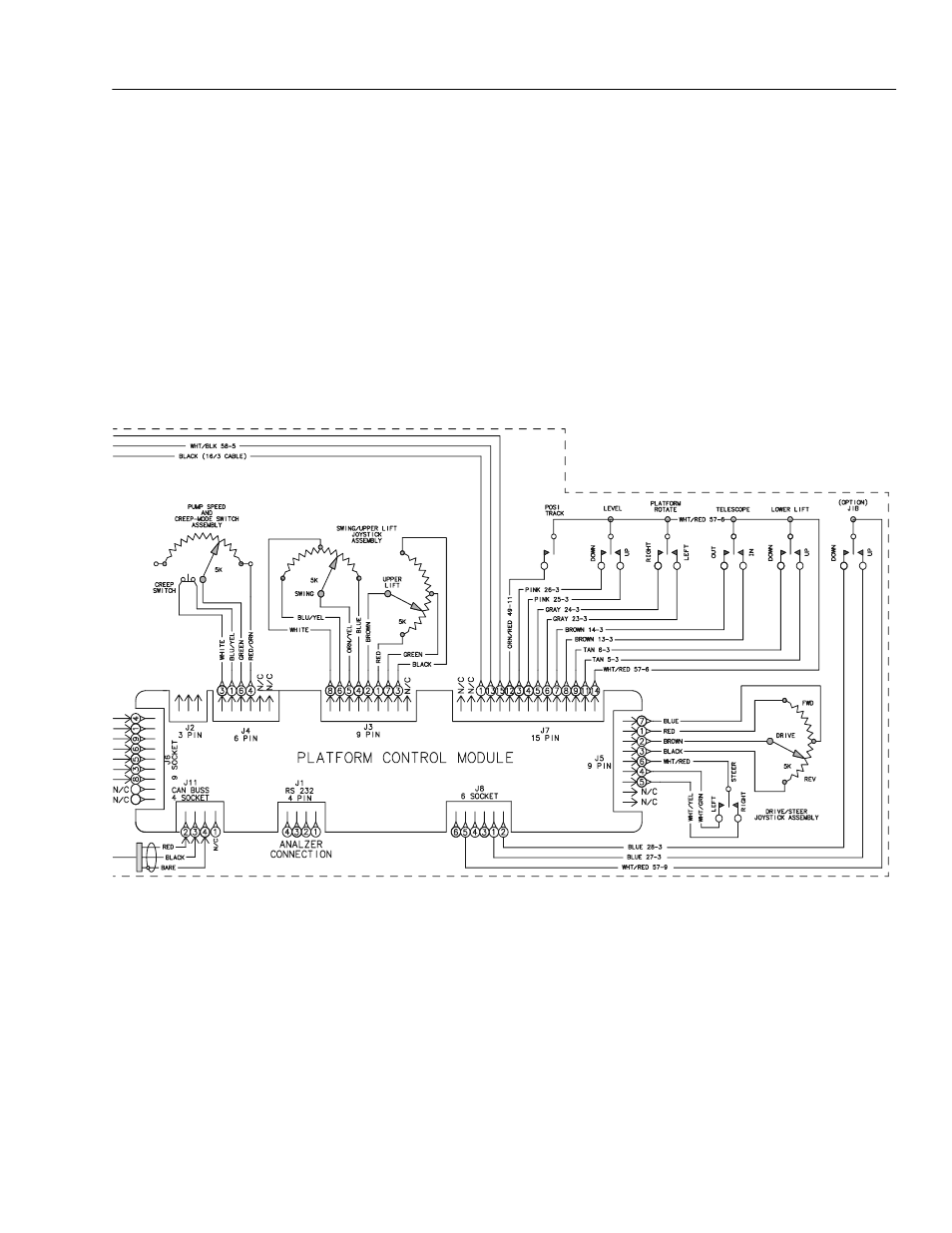

Figure 3-4. Platform Electrical Schematic - Sheet 2 of 2

1870072D
