SECTION 3 - TROUBLESHOOTING

3-26

– JLG Lift –

3120884

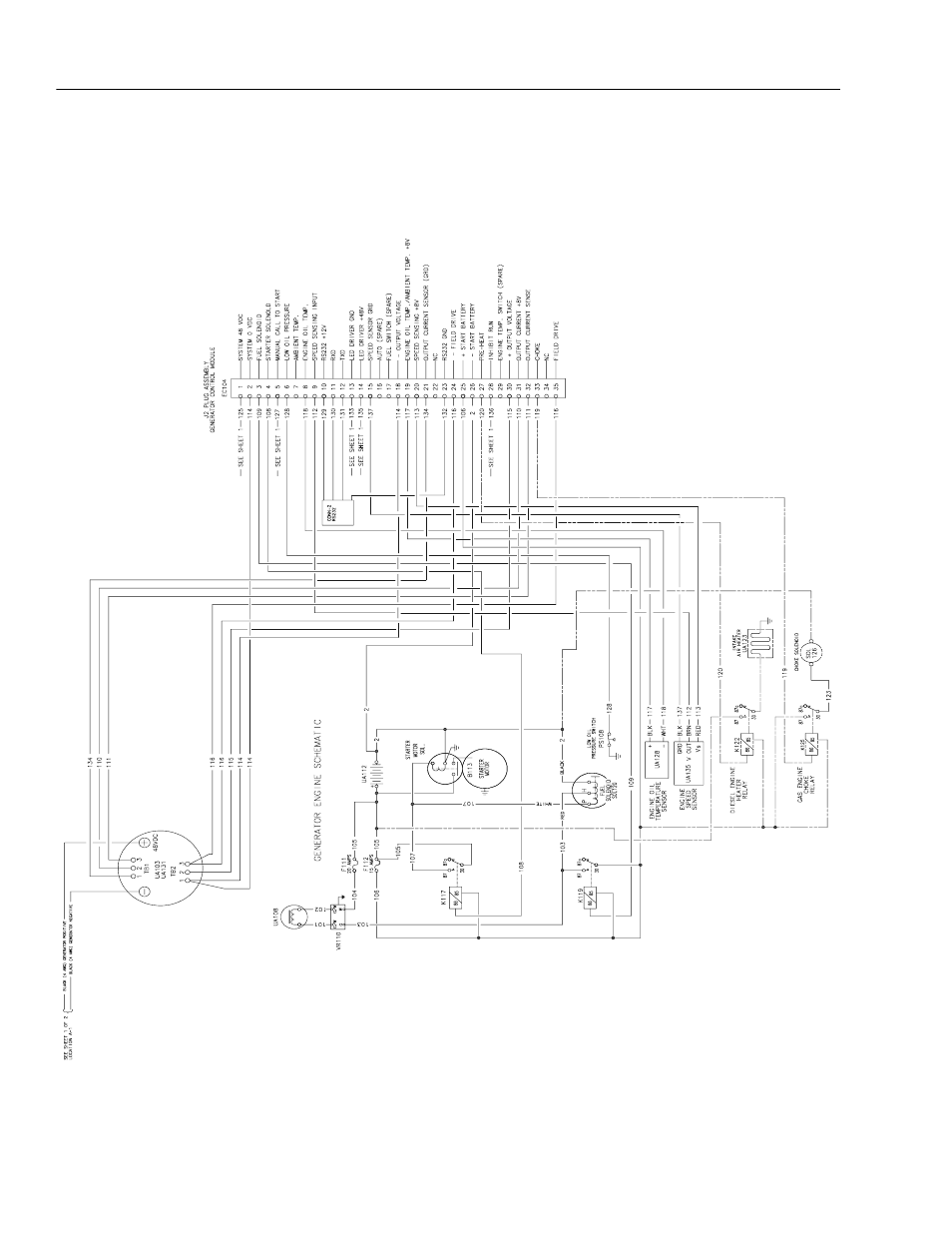

Figure 3-7. On Board Generator Electrical Schematic

1870072D
