SECTION 3 - TROUBLESHOOTING

3120884

– JLG Lift –

3-25

1870072D

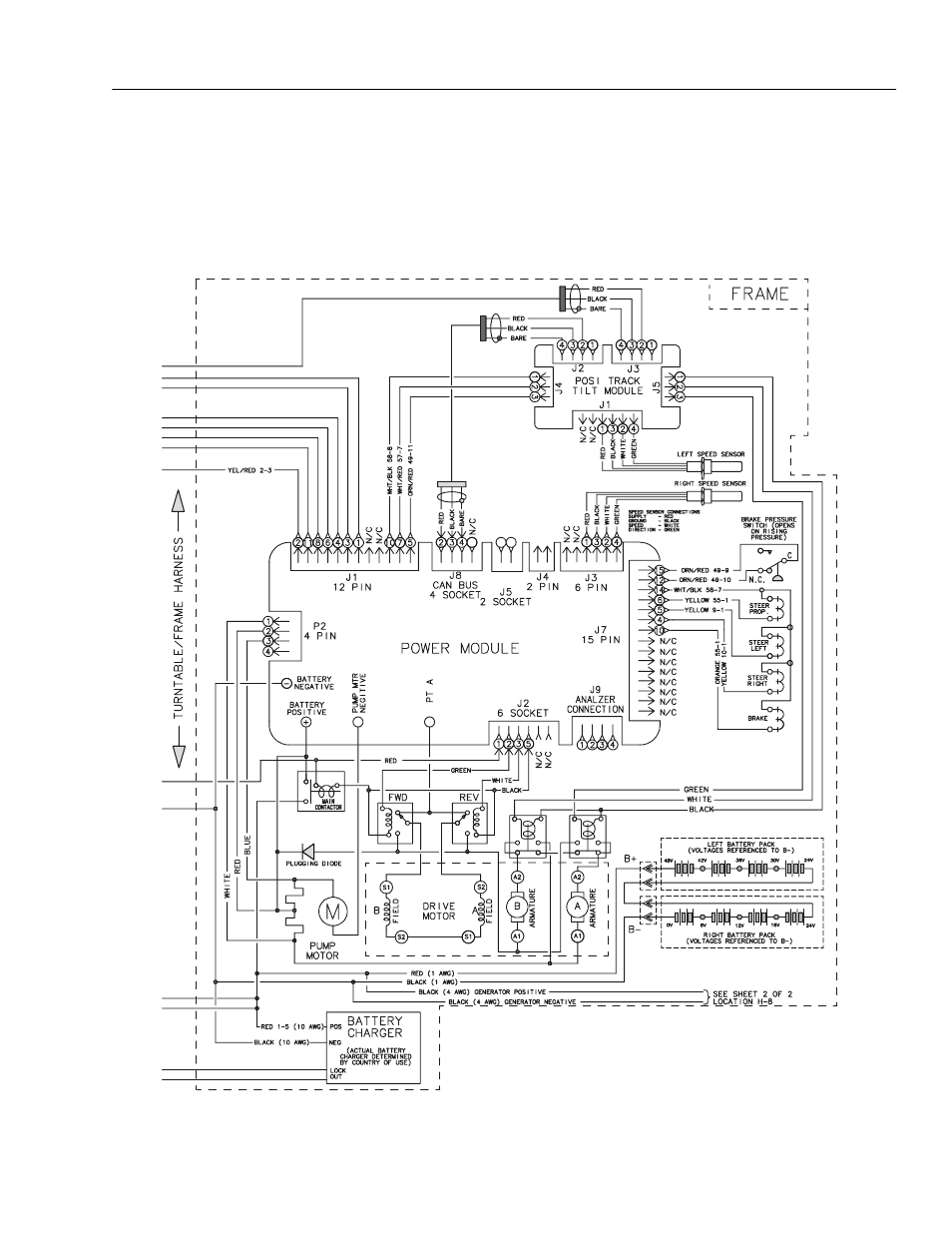

Figure 3-6. Frame Electrical Schematic
