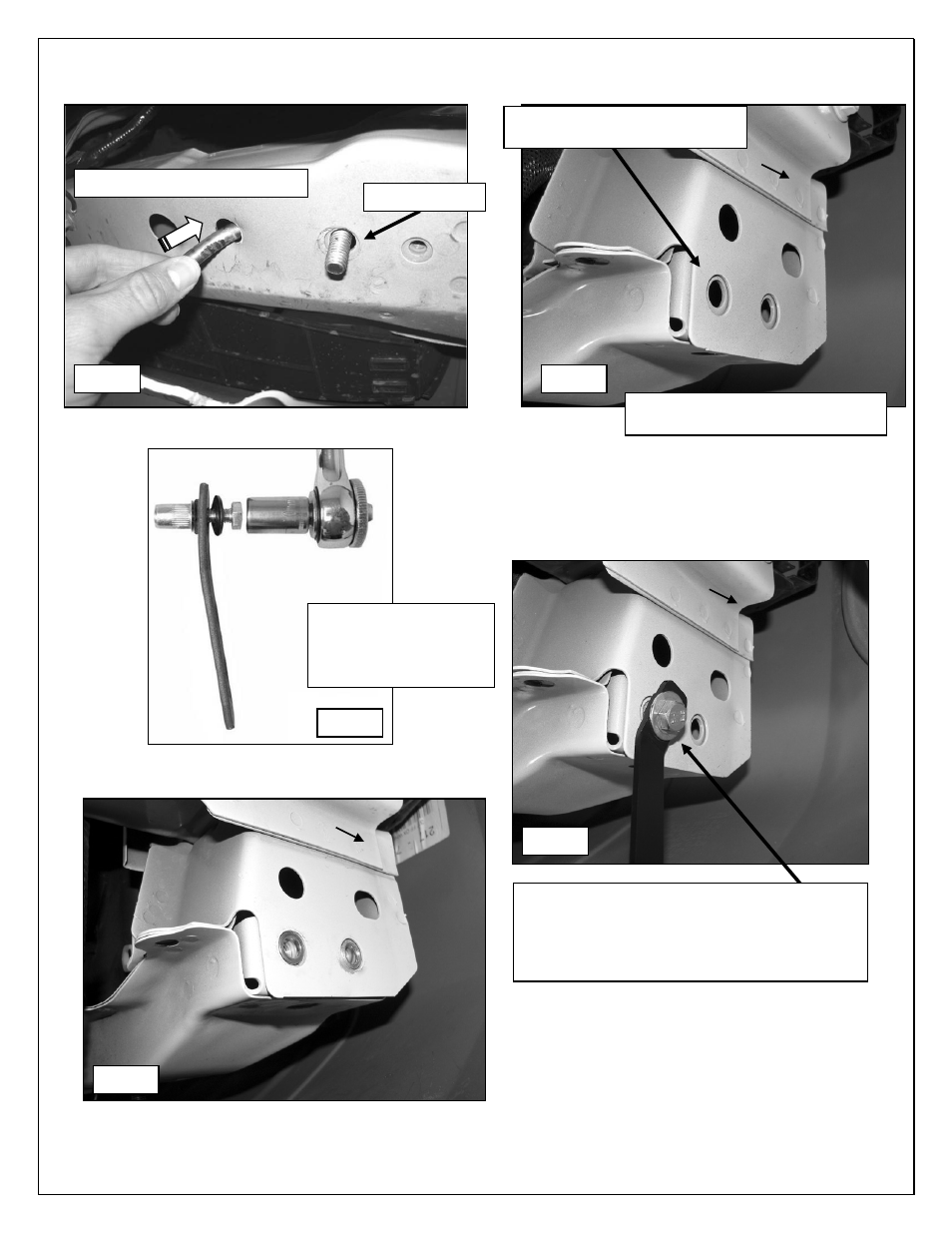

Passenger Side Installation Pictured
















































Insert 10mm Rod Bolt in here

Fig 1

Fig 2

Fig 3B

Fig 3A

Fig 4

...and out here

2009-10 model pictured.
NOTE: Holes are not threaded

On 2008 models, these (2) factory
holes are threaded to 10-1.5mm

8mm Insert Tool
8mm Threaded Insert
8mm Flat Washer
8mm x 30mm Hex Bolt

Insert assembly into the factory hole, hold
tool handle and assembly up tight against the
crossmember and tighten hex bolt until insert
is fully expanded into hole, (Figure 4). NOTE:
Do not over tighten or a pull out may occur.

Front

Front

Front

Page 3 of 5

10/29/13
