INSTALLATION INSTRUCTIONS
FRONT BAR PART # 4057
2001-02 CHEVY SILVERADO 1500 HD 2/4 WD
PARTS LIST
2- FRAME MOUNTING
BRACKETS
2- TOP SUPPORT BRACKETS
10- 7/16 X 1 1/2 “ HEX BOLTS
8- 7/16 HEX NUTS
18- 7/16 FLAT WASHERS
INSTALLING FRAME BRACKETS
1. Remove factory tow hooks from front section of vehicle (if equipped), once the tow hooks are

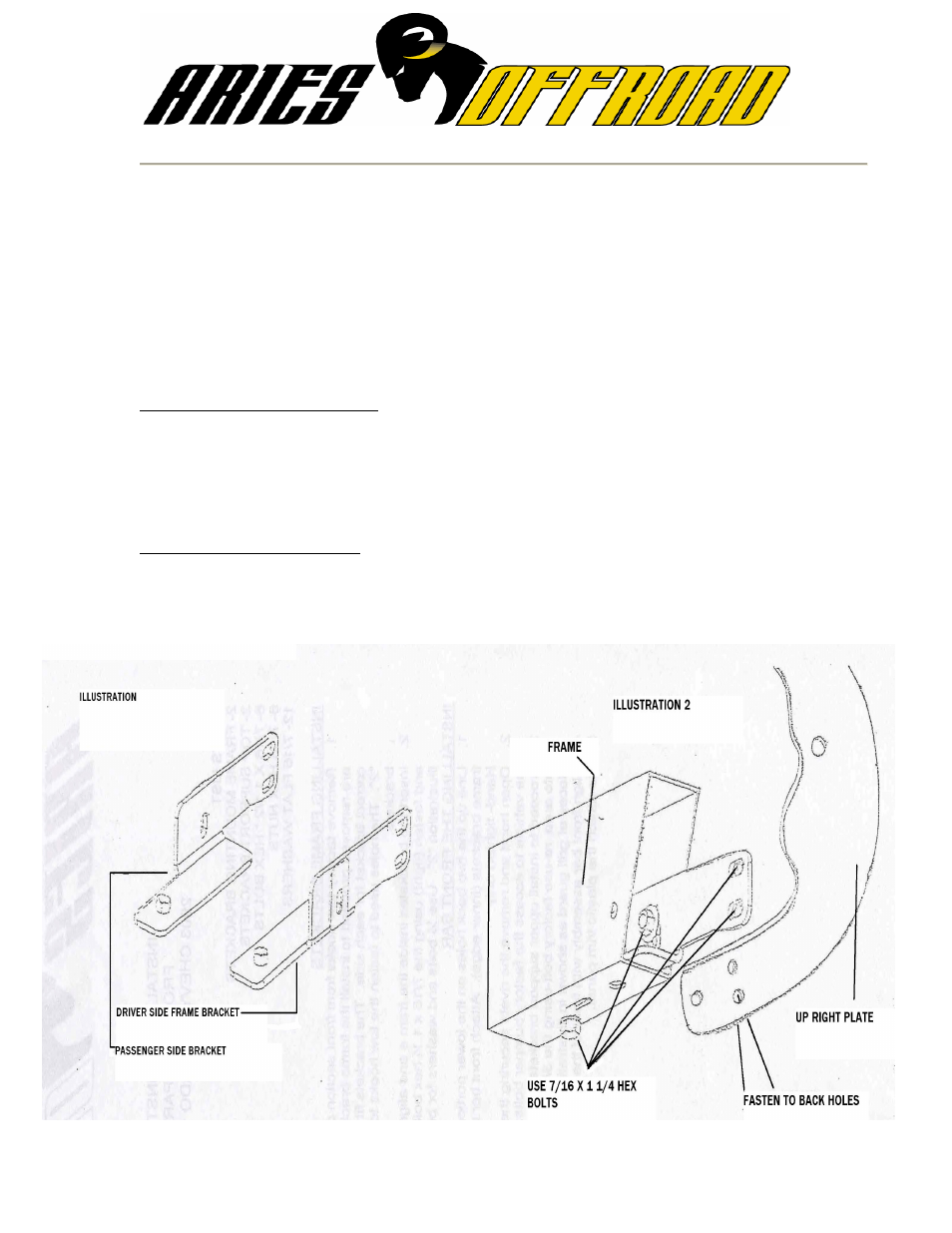

removed proceed to install the frame brackets. Use illustration “1” to identify the correct bracket
for each side. The brackets fit inside of the frame as shown in illustration “2”. The holes used to
fasten the tow hooks to the frame will be used to fasten the brackets.
2. insert the bracketes inside the fram e and align the bracket holes with the frame holes and fasten
(tight) using the 7/16 x 1 ¼ hex bolts, nuts and washers as shown in illustration “2”. Use 7/16
bolts, nuts and washers for bottom of mount bracket.
INSTALLING THE FRONT BAR
1. Line up the two back holes on the lower portion of the bar with the two of the holes in the frame
brackets (inner edge). Attach front bar using 7/16 x 1 ¼” hex bolts, nuts, washers. Hand- tighten
only.
2. Align front bar assembly with front of the vehicle and secure all fasteners.
