GRILLE GUARD
09-2013 RAM 1500
Page 4 of 6 6/4/12 (DP)

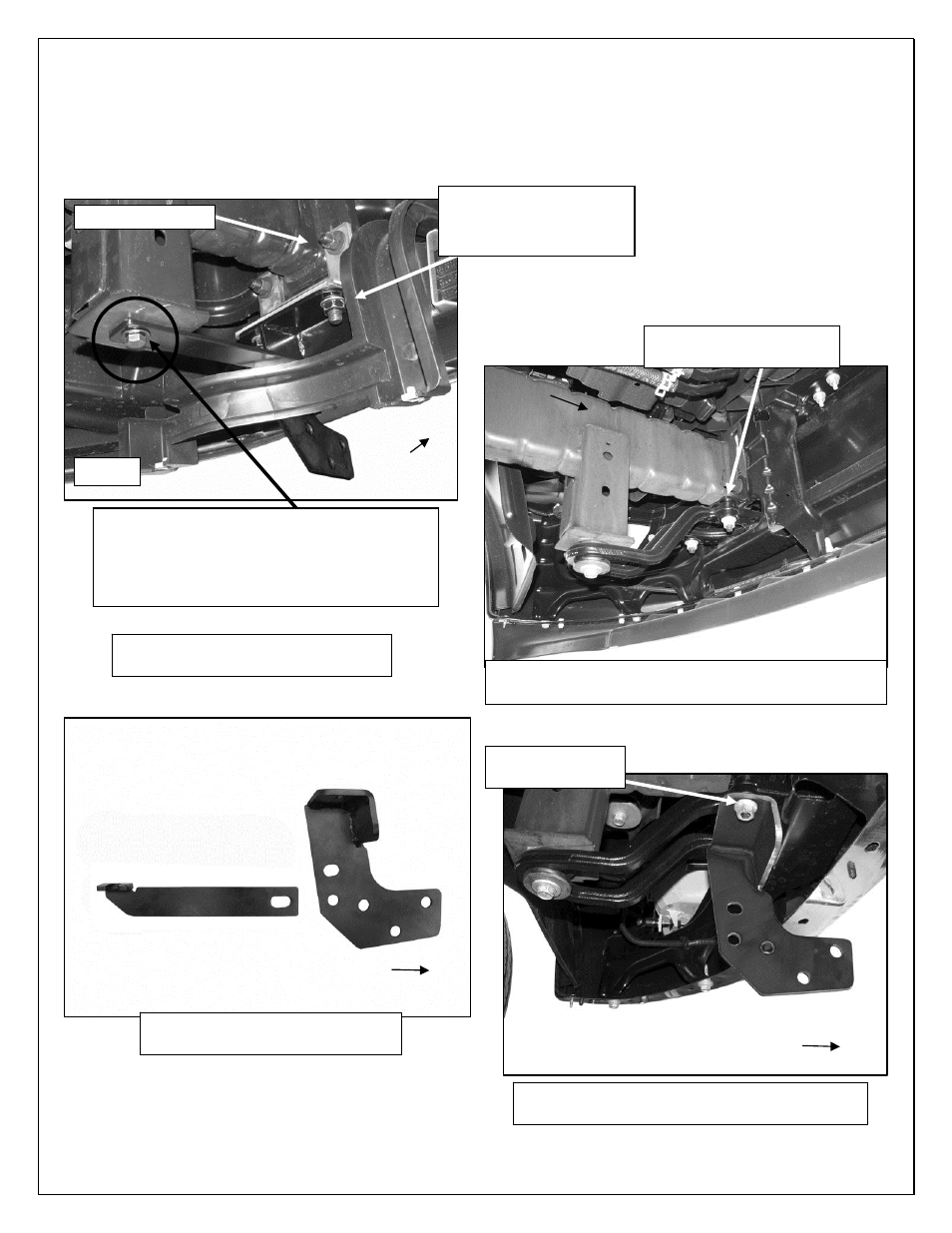

Driver Side Installation Pictured
IMPORTANT: For models without tow hooks,
only use the supplied
12-1.5mm x 30mm Fine Thread Hex Bolt
12mm Lock Washer
12mm Flat Washer
(Fig 5) Driver side mounting location pictured from
behind bumper on tow hook equipped model
Front
Fig 4
Front
Factory hex nuts
(2) 12mm Flat Washers
(2) 12mm Lock Washers
(2) 12mm Hex Nuts
Remove the (2) factory
hex nuts from tow hook
(Fig 6) Driver side Brackets
pictured (models with tow hooks)
Front
Front
(Fig 7) Attach the driver side Frame Mounting
Bracket to the bottom of the tow hook
Installation pictured without the
splash guard for illustration
Reuse (2) factory
hex nuts
