Chapter 8 – Operation
40 SR3084SL – 8210037
7. Replace the upper control panel on the front right
side of the guardrail, and hanging inside the platform.
Refer to Figure 8.11.
In this position the guardrail and upper control
box arrows will point the same direction, towards
the front of the machine.

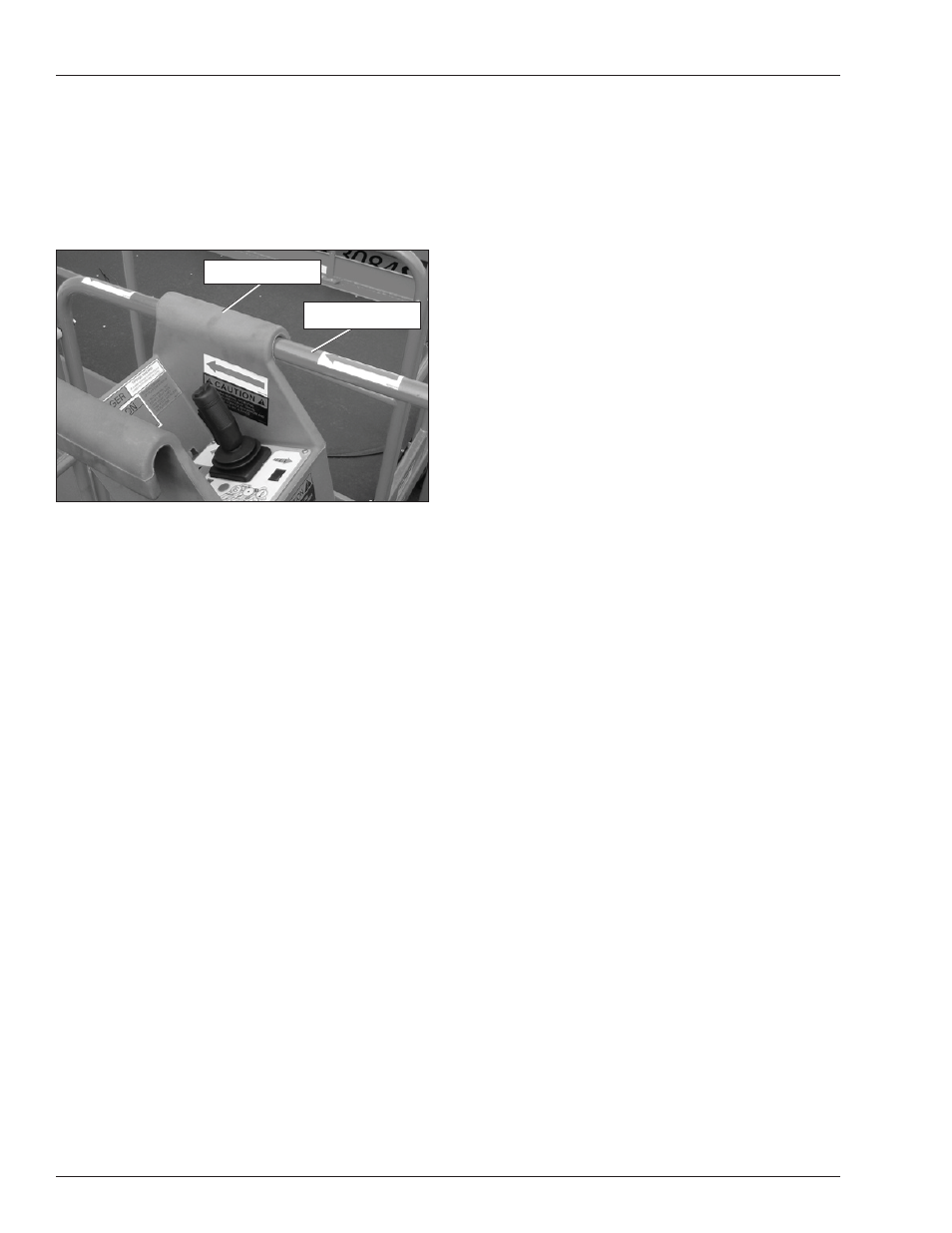

Figure 8.11 – Upper Control Operating Position
y
Right Guardrail
Upper Controls
Right Guardrail
Upper Controls
