Chapter 4 – Safety Devices

SR3084SL – 8210037

Attach only one fall restraint device to each lanyard

anchor.

Do not use the lanyard anchors for personal fall arrest
anchorage.

Tilt Alarm

If the aerial platform chassis is out of level more than four

degrees side-to-side or front-to-rear when the platform is

raised, an alarm will sound.

Danger

The aerial platform can tip over if it becomes unstable.
Death or serious injury will result from a tip-over ac-
cident. Do not drive or position the aerial platform for
elevated use near any drop-off, hole, slope, soft or
uneven ground, or other tip-over hazard.

Completely lower the platform and drive to a level surface

or active the speed level when the tilt alarm sounds.

The tilt alarm is for added protection and does not

justify operating on anything other than fi rm, fl at, level

surfaces.

Speed Level

The speed level button may be used to level the platform

when the aerial platform chassis is out of level more than

four degrees side-to-side or front-to-rear. The speed

level cannot be set if the aerial platform chassis is out

of level more than 13 degrees side-to-side or 9 degrees

front-to-rear.

The speed level button is located on upper control panel

(refer to Figure 4.6).

Figure 4.6 – Upper Controls

While the speed level is set only the platform raise

and lower functions will work.

To drive the machine, the speed level must be deac-

tivated by fully lowering the platform.

Speed

Level

Horn

Speed

Level

Horn

Guardrails

The guardrails (refer to Figure 4.4) help protect personnel

from falling off the platform.

The guardrail system includes:

A top rail

A mid rail

An entry gate
Toeboards around the sides of the platform.

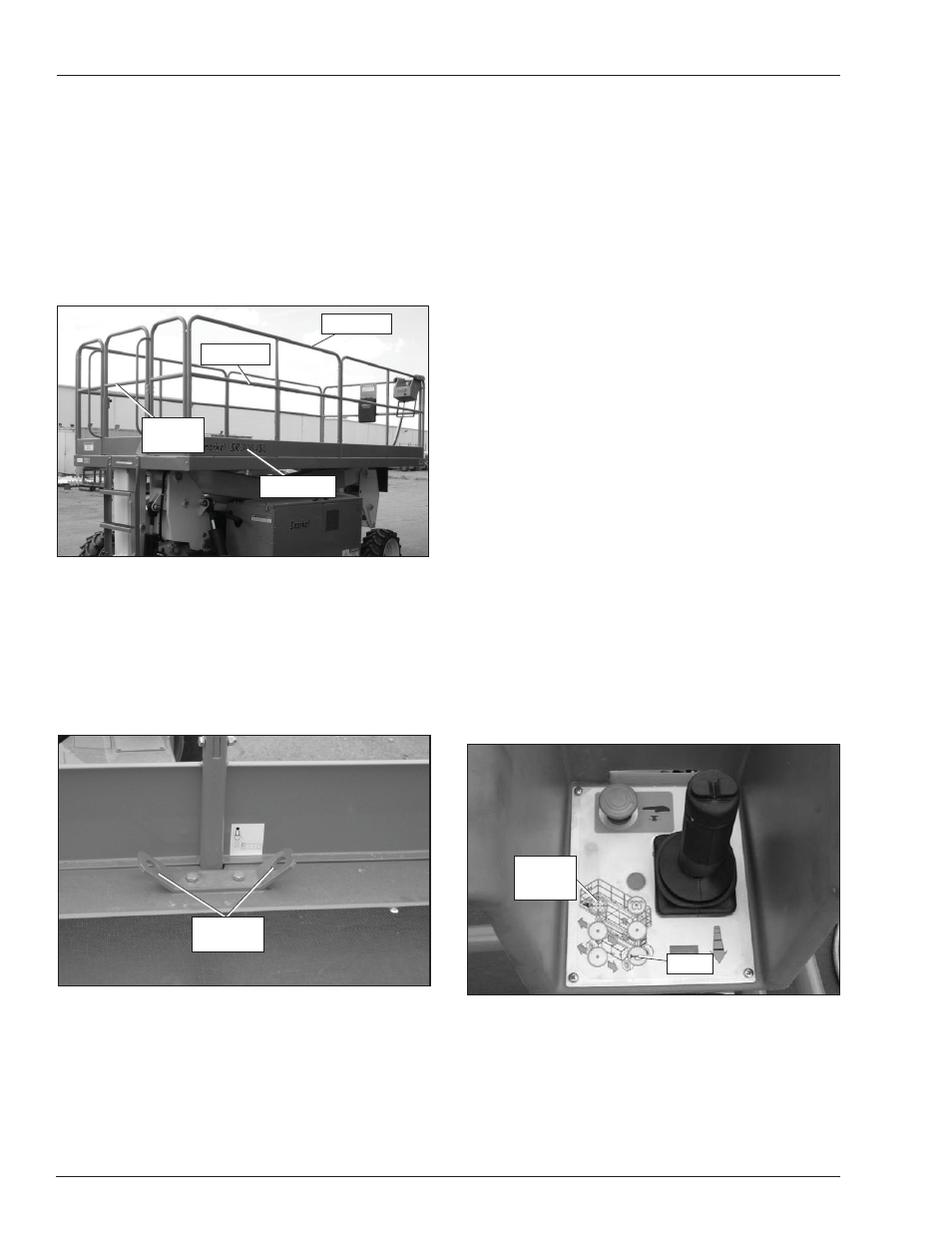

Figure 4.4 – Platform

The entry gate allows for access to the platform. The

gate must be securely latched except when personnel

are entering or leaving the platform.

Lanyard Anchors

Six lanyard anchors for fall restraint anchorage are pro-

vided on the fl oor of the platform (refer to Figure 4.5):

Figure 4.5 – Platform

Note
The lanyard anchors are not designed for lifting or tying
the machine down.

If local work rules require the use of a fall restraint

device, properly connect it to a lanyard anchor before

raising the platform.

y
y
y
y

Entry

Gate

Top Rail

Toeboard

Mid Rail
