Chapter 5 – Gauges and Displays
16 SR3084SL – 8210037
Hydraulic Fluid Level Gauge
The hydraulic fl uid level gauge is on the front of the
hydraulic oil tank (refer to Figure 5.4) located behind the
doors on the left side of the chassis. The fl uid should be
between the minimum and maximum lines.

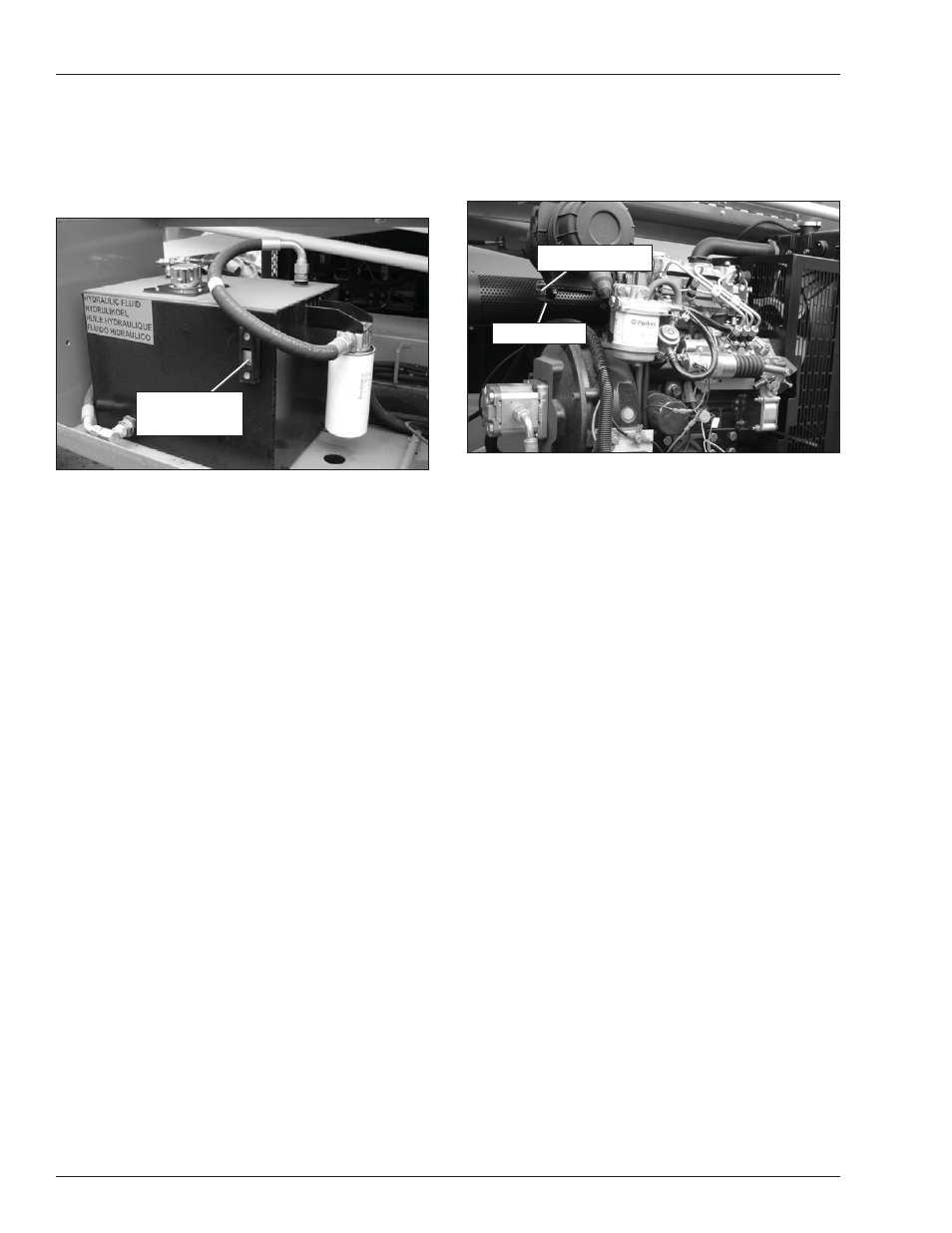

Figure 5.4 – Fuel Tank
Only read the fl uid level when the scissor structure is
completely lowered. Otherwise, the lift cylinders become
large reservoirs for hydraulic oil and the oil level in the
tank will be low. The oil level should be within ± 0.25 ″
(6.4 mm) of the maximum line.
Hydraulic Fluid
Gauge
Hydraulic Fluid
Gauge
Engine Air Filter Gauge
The air fi lter gauge (refer to Figure 5.5) is located in the
engine compartment behind the doors on the right side
of the chassis.
Figure 5.5 –Engine Compartment
The air fi lter gauge measures the air pressure between
the intake manifold and the air fi lter.
When the red indicator disk is visible through the clear
area of the gauge, it’s time to change the fi lter element.
After changing the fi lter, press the reset button to reset
the indicator disk.
Air Filter Gauge
Reset Button
Air Filter Gauge
Reset Button
