Operation
107098-002 TM12 - Operator Manual Page 7
E M E R G E N C Y L O W E R I N G
W A R N I N G ! !
If the platform should fail to lower, NEVER climb down the elevating assembly.
Stand clear of the elevating assembly while operating the Emergency Down Valve Knob.

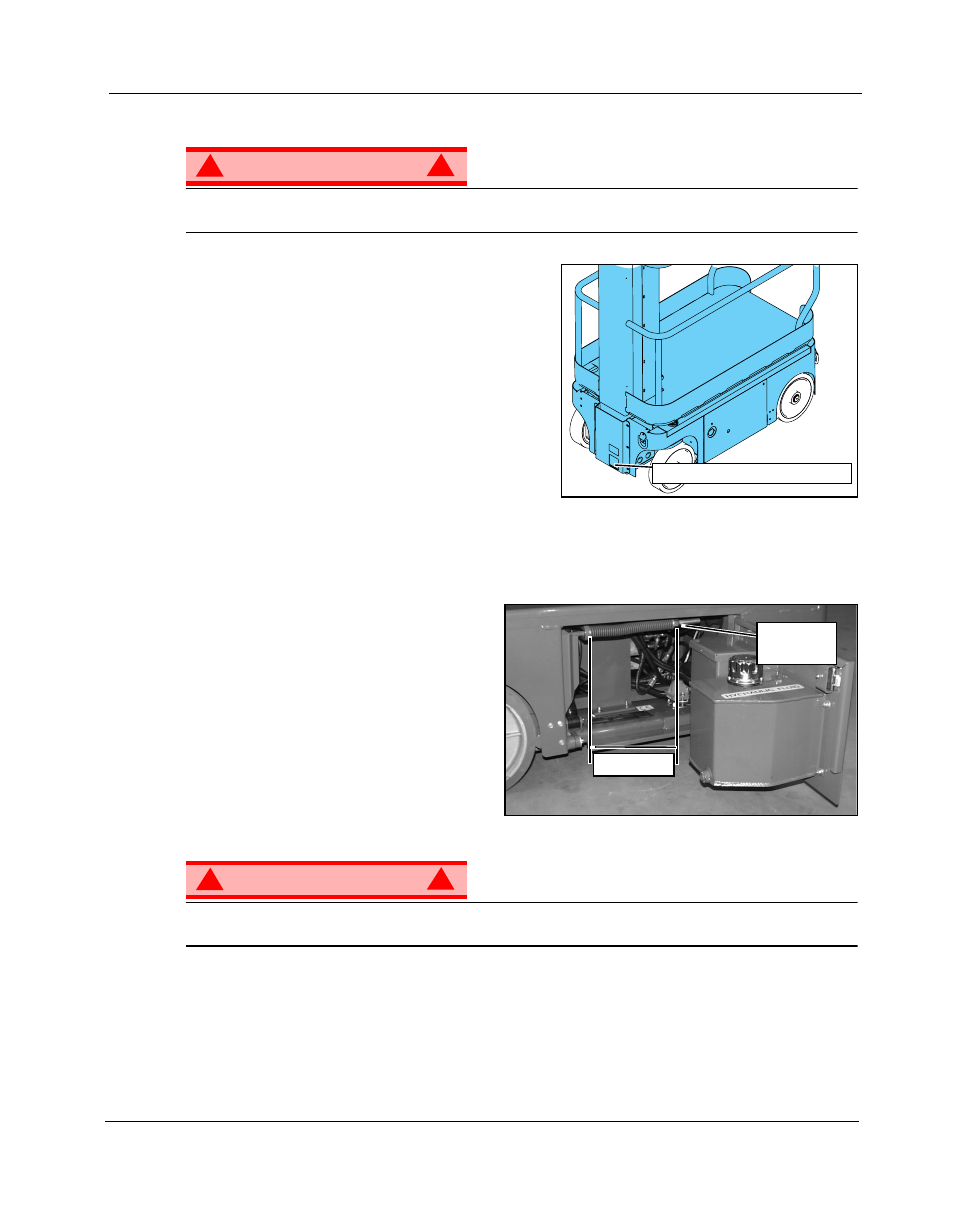

Figure 4: Emergency Down Valve Knob
Ask a person on the ground to open the Emergency
Down Valve to lower the platform. The Emergency Down
Valve Knob is located at the front of the chassis.
1. Open the Emergency Down Valve by pulling the knob
out.
2. To close, release the knob.
NOTE: The platform will not elevate if the Emergency Down Valve
is open.
P A R K I N G B R A K E R E L E A S E
Perform the following procedure only when the machine will not operate under its own power and it is nec-
essary to move the machine, or when winching onto a trailer to transport.
Figure 5: Parking Brake Release
1. Remove the spring compression nut so the
spring is loose and the brake bars are away
from the tires.
2. The machine will now roll when pushed or
pulled.
After moving the machine and before normal oper-
ation:
1. Replace the spring compression nut and
tighten until the spring measures 22,2 cm –
22,9 cm (8¾ in. – 9 in.) in length, verify that
the brake bars have fully engaged the tires
before the machine is operated.
W A R N I N G ! !
Never tow faster than 0,3 m/sec. (1 ft./sec.).
Never operate the machine with the parking brakes released. Serious injury or damage could result.
A F T E R U S E E A C H D A Y
1. Ensure that the platform is fully lowered.
2. Park the machine on a firm level surface, preferably under cover, secure against vandals, children and
unauthorized operation.
3. Turn the Chassis Key Switch to OFF and remove the key to prevent unauthorized operation.
Emergency Down Valve Knob
Spring
Compression
Nut
8¾ in. – 9 in.
