Maintenance
107098-002 TM12 - Operator Manual Page 9
M AINTENANCE
W A R N I N G ! !
Never perform service while the platform is elevated without first blocking the elevating assembly.
DO NOT stand in the elevating assembly area while deploying or storing the brace.

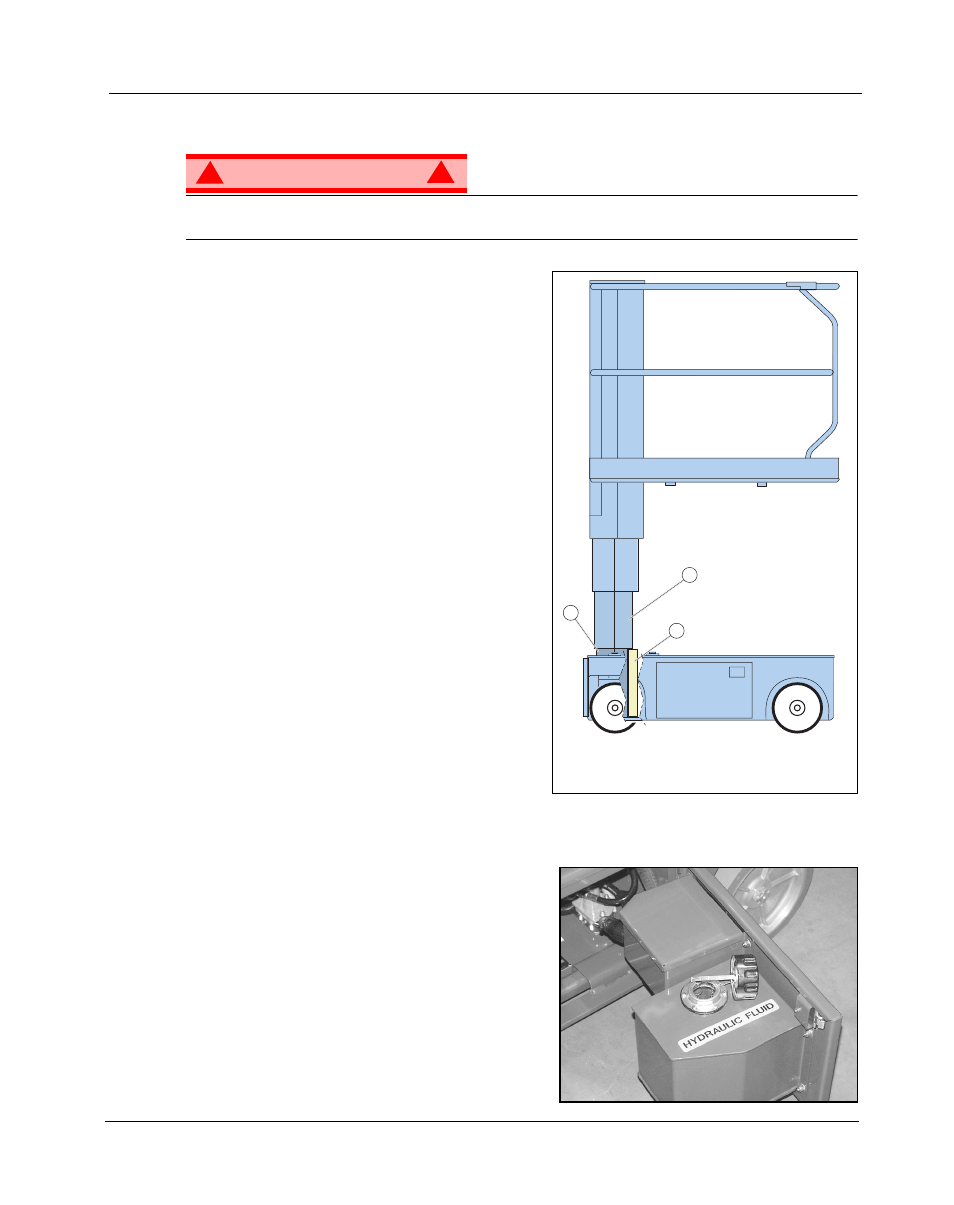

Figure 7: Supporting the Elevating Assembly
B L O C K I N G T H E E L E V A T I N G
A S S E M B L Y
I NSTALLATION
1. Park the machine on firm level ground.
2. Verify that both Emergency Stop Switches are ON.
3. Turn and hold the Chassis Key Switch to CHASSIS.
4. Position the Chassis Up/Down Switch to UP and ele-
vate the platform approximately 1,2 m (4 ft.).
5. Place a solid 2 x 4 wood block, approximately 50 cm
(18 in.) long, between the number two mast and
chassis just behind the mast assembly and against
the number one mast.
6. Move the Chassis Lift Switch to the DOWN position
and gradually lower the work platform until the num-
ber two mast is supported by the block.
R EMOVAL
1. Push the Chassis Up/Down Switch to the UP posi-
tion and gradually raise platform until the wood block
can be removed.
2. Remove the block.
3. Push the Chassis Up/Down Switch to the DOWN
position and completely lower the platform.
H Y D R A U L I C F L U I D
The hydraulic fluid reservoir is located in the chassis door.
Figure 8: Hydraulic Fluid Reservoir and Dipstick
NOTE: Never add fluid if the platform is elevated.
C HECK H YDRAULIC F LUID
1. Make sure that the platform is fully lowered.
2. Open the chassis door.
3. Remove the filler cap from the hydraulic fluid reser-
voir.
4. Check the fluid level on the dipstick on the filler cap.
5. Add the appropriate fluid to bring the level to the FULL
mark. See “Specifications” on page 16.
1
2
3
1 Wood Block 50 cm (18 in.) long
2. Number Two Mast
3. Number One Mast
