Transporting the Machine
T RANSPORTING THE M ACHINE
B Y C R A N E
D A N G E R ! !
See specifications for weight of machine and be certain that crane is of adequate capacity to lift the
machine.
Secure the straps to chassis lifting/tie down points only.
B Y F O R K L I F T
D A N G E R ! !
Forklifting is for transport only.
See specifications for weight of machine and be certain that forklift is of adequate capacity to lift the
machine.

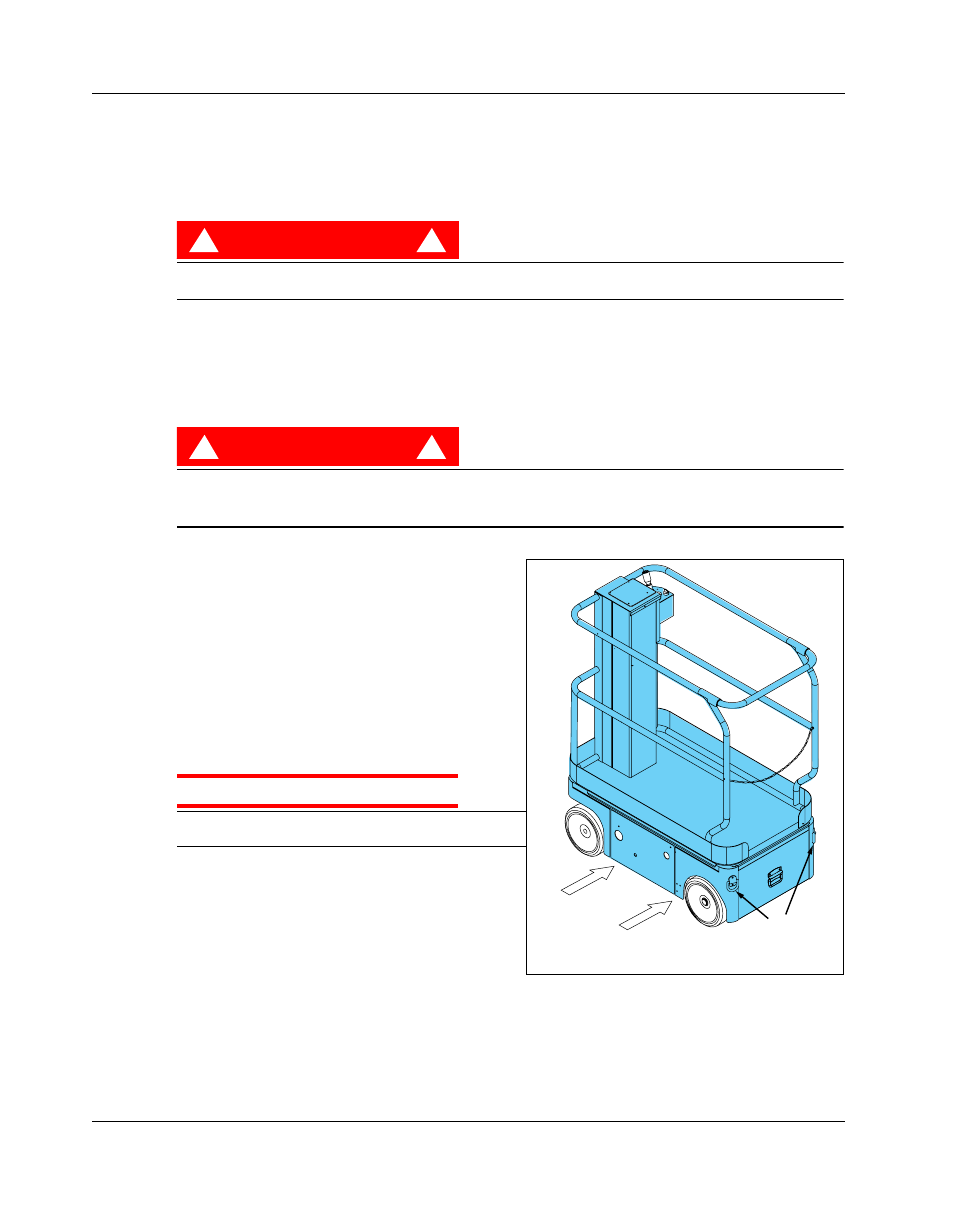

Figure 6: Transporting the Machine
Forklift from the side by lifting under the chassis.
B Y T R U C K
1. Maneuver the machine into transport position and
chock wheels.
2. Secure the machine to the transport vehicle with
chains or straps of adequate load capacity
attached to the chassis lifting/tie down points.
C A U T I O N
Overtightening chains or straps attached to the Tie
Down lugs may result in damage to the machine
Forklift From
Side
Typical Tie Down/Lift Points
(D-Rings)
