8 T RANSPORTING THE M ACHINE
Page 13
8 T RANSPORTING THE M ACHINE
Always use a transport vehicle when moving a machine to a work site. Towing the machine over long
distances will damage the machine and void the warranty.
L I F T I N G B Y C R A N E

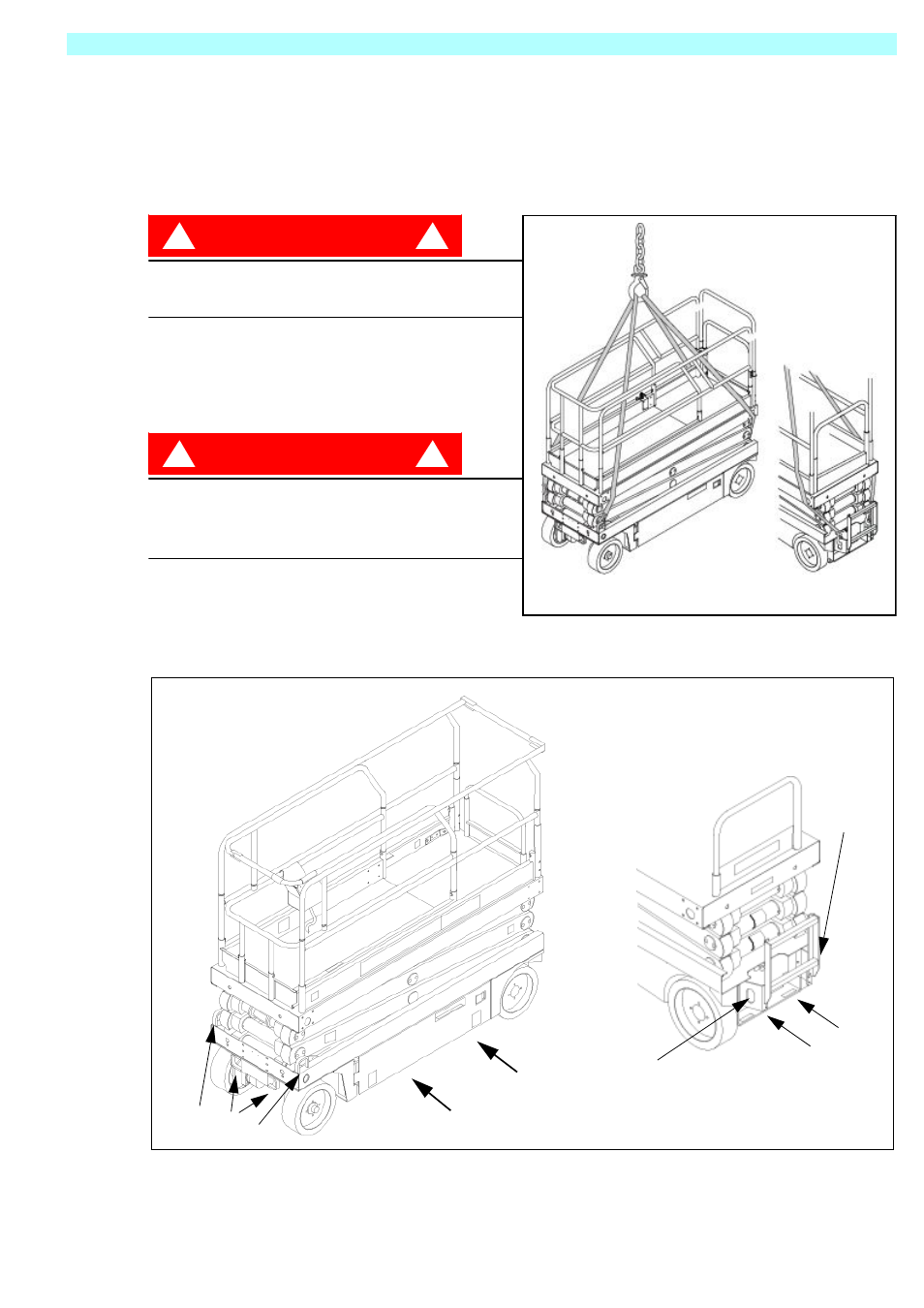

Figure 7: Secure Crane Straps
D A N G E R ! !
See specifications for the weight of the machine
and be certain that the crane is of adequate
capacity to lift the machine.
Secure straps to chassis tie down/lifting points only
(see Figure 7).
M
O V I N G
B
Y
F
O R K L I F T
D A N G E R ! !
Fork-lifting is for transport only.
See specifications for the weight of the machine
and be certain that the forklift is of adequate
capacity to lift the machine.
Forklift from the rear of the machine using the
forklift pockets provided. If necessary, the machine
may be forklifted from the side by lifting under the
Chassis Modules. (see Figure 8).
Figure 8: Tie Down and Lift Points
Front Rear
REAR FRONT
Rear Tie
Down/Lift
Point
Front Tie
Down/Lift Point
Forklift Here
Forklift Pockets Rear Tie
Down/Lift
Point
