Before operating the work platform, ensure that the Pre-Operation Safety Inspection and System Function
Inspection have been completed and that any deficiencies have been corrected.

NOTE: Never operate a damaged or malfunctioning machine.

The operator must be thoroughly trained on this machine.

L A T F O R M

X T E N S I O N

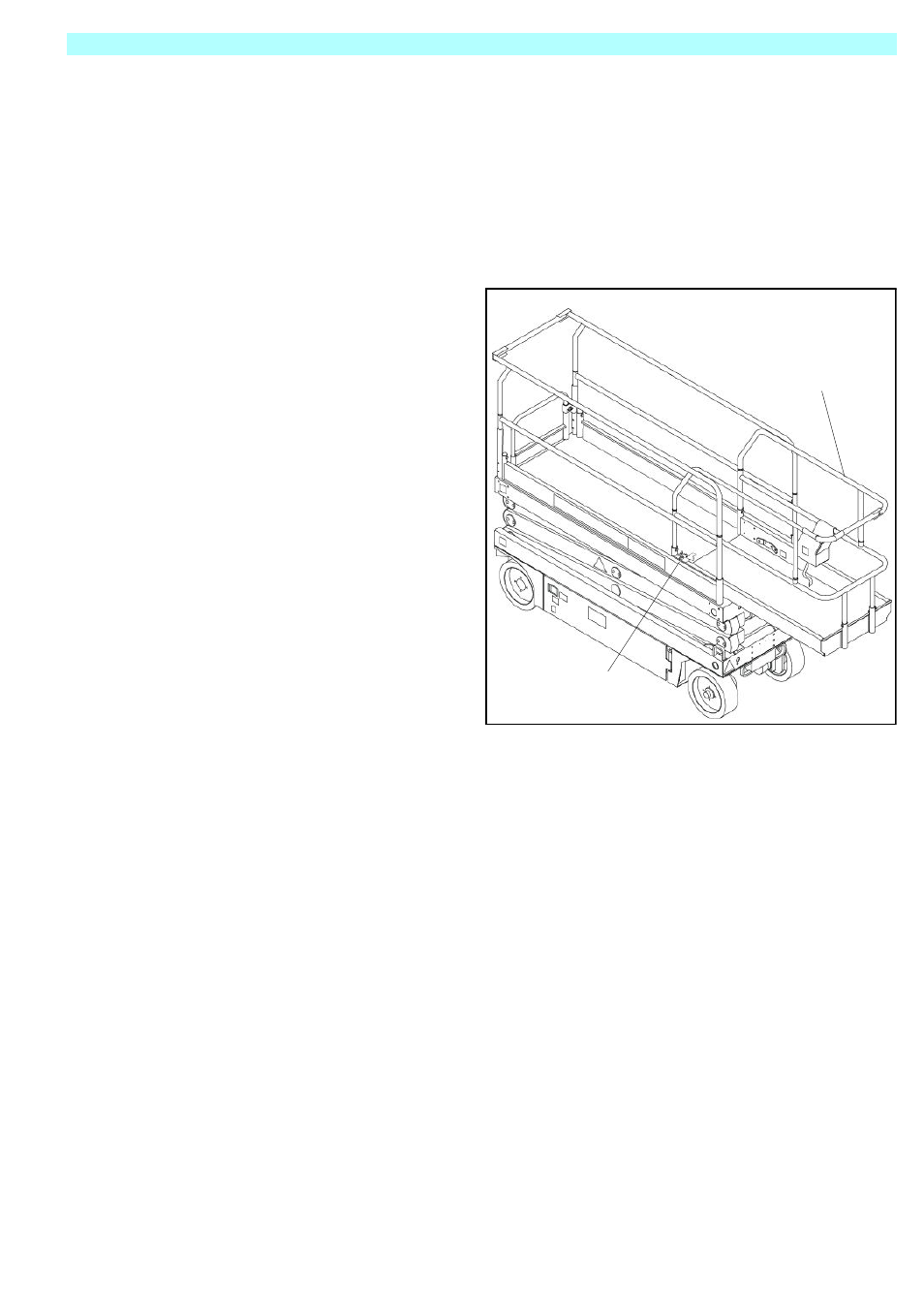

Figure 4: Platform Extension

1. Mount the platform and properly close

and secure the entrance.

2. Depress the foot lever located at the rear

of the platform extension. Push the
platform extension forward until the pin
engages the front stop.

3. To retract the platform extension,

depress the foot lever and pull the
platform extension toward the rear of the
machine until the pin engages the rear
stop.

R A V E L

W I T H

T H E

L A T F O R M

O W E R E D

1. Check that the route is clear of obstacles

(persons, obstructions, holes, drop-offs,
bumps, and debris), is level, and is
capable of supporting the wheel loads.

2. Verify that the Chassis Key Switch is

turned to ON and the Chassis Emergency
Stop Switch is ON (pulled out).

3. Mount the platform and properly close the

entrance.

4. Check clearances above, below, and to the sides of platform.

5. Pull the Platform Emergency Stop Switch out to the ON position.

6. Select DRIVE mode.

NOTE: Choose between standard drive and extra torque depending on the gradient.

7. Engage the Interlock Switch and move the Control Handle to FORWARD or REVERSE to travel in the

desired direction. The speed of the machine will vary depending on how far from centre the Control
Handle is moved.

T E E R I N G

1. Turn the Lift/Drive Switch to DRIVE.

2. While engaging the Interlock Switch, push the Steering Switch to the RIGHT or LEFT to turn the wheels

in the desired direction. Observe the tires while manoeuvring the machine to ensure proper direction.

NOTE: Steering is not self-centering. Wheels must be returned to the straight ahead position by

operating the Steering Switch.

1. Platform Extension

2. Foot Lever (deck lock) assembly)
