PUSH 6 PRO / PUSH 8 PRO / PUSH 10 PRO – 0120877 Repair Parts – 21

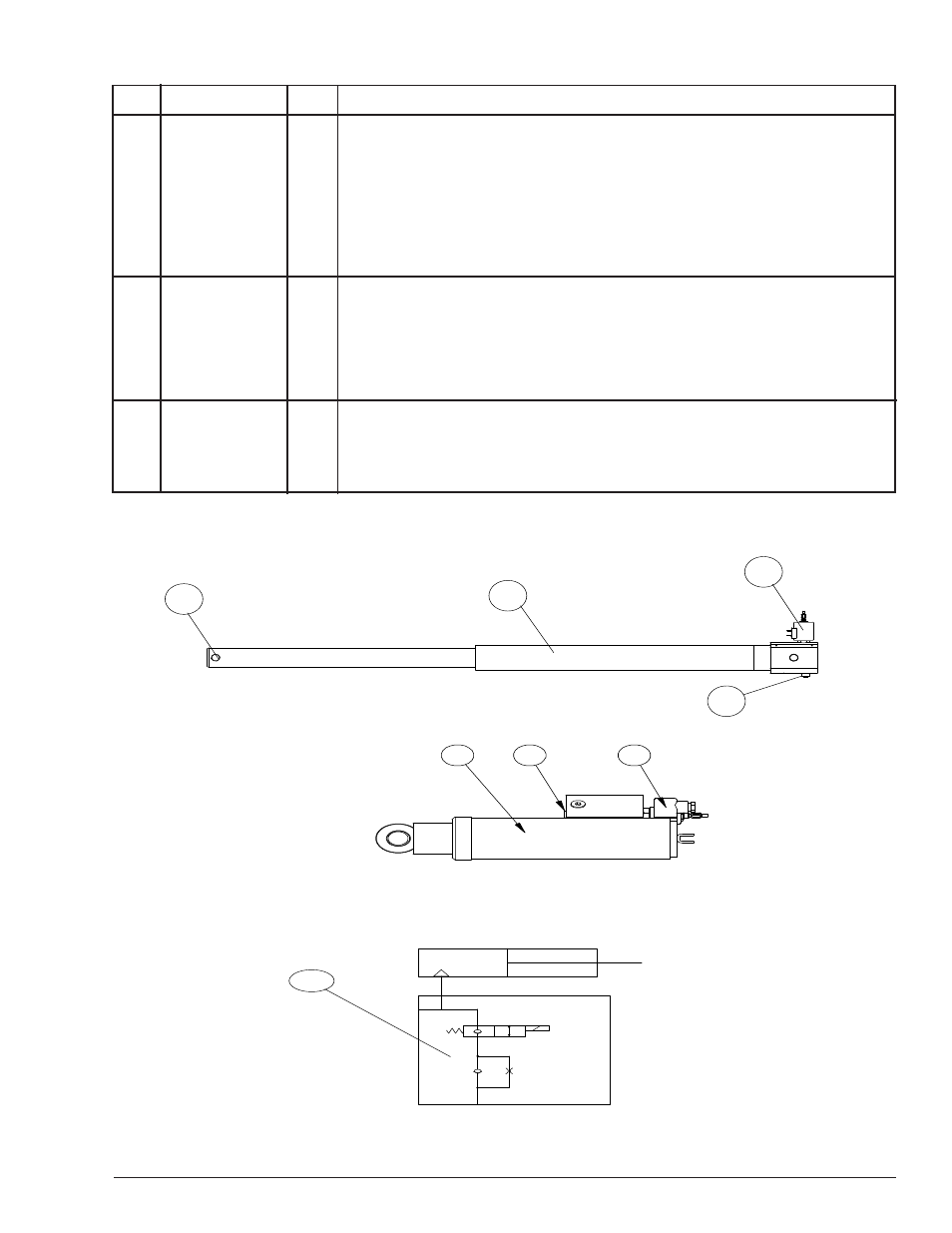

Lift Cylinder
Lift Cylinder
1 0120812 1 CYLINDER, LIFT PUSH 6 PRO - EMC
513063-000 1 CYLINDER, LIFT PUSH 6 PRO - PB
513058-000 1 CYLINDER, LIFT PUSH 8 PRO - EMC
0120811 1 CYLINDER, LIFT PUSH 8 PRO - PB
0120658 1 CYLINDER, LIFT PUSH 10 PRO - EMC
513064-000 1 CYLINDER, LIFT PUSH 10 PRO - PB
2 513818-000 1 SOLENOID VALVE, 12 VOLT DC
3 2509722 4 BEARING
4 6091348 1 CHECK VALVE, .045 ORIFICE
513063-000/SK 1 SEAL KIT PUSH 6 PRO - EMC
513063-000/SK 1 SEAL KIT PUSH 6 PRO - PB
513058-000/SK 1 SEAL KIT PUSH 8 PRO - EMC
0120811/SK 1 SEAL KIT PUSH 8 PRO - PB
0120658/SK 1 SEAL KIT PUSH 10 PRO - EMC
513064-000/SK 1 SEAL KIT PUSH 10 PRO - PB
Item Part No. Qty. Description
513064-000
1
2
3
4
.045
HYDRAULIC SCHEMATIC
PUSH 8/10 CYLINDER
1 2 4
4
512370-000 1 HOSE KIT, PUSH 8
512373-000 1 HOSE, HYDRAULIC, -4 -4F 62 100R2
512371-000 1 FTG, 1/4 BSP M -4 ORFS POS 90
512372-000 1 FTG, -6 ORB, -4 ORFS POS 90
