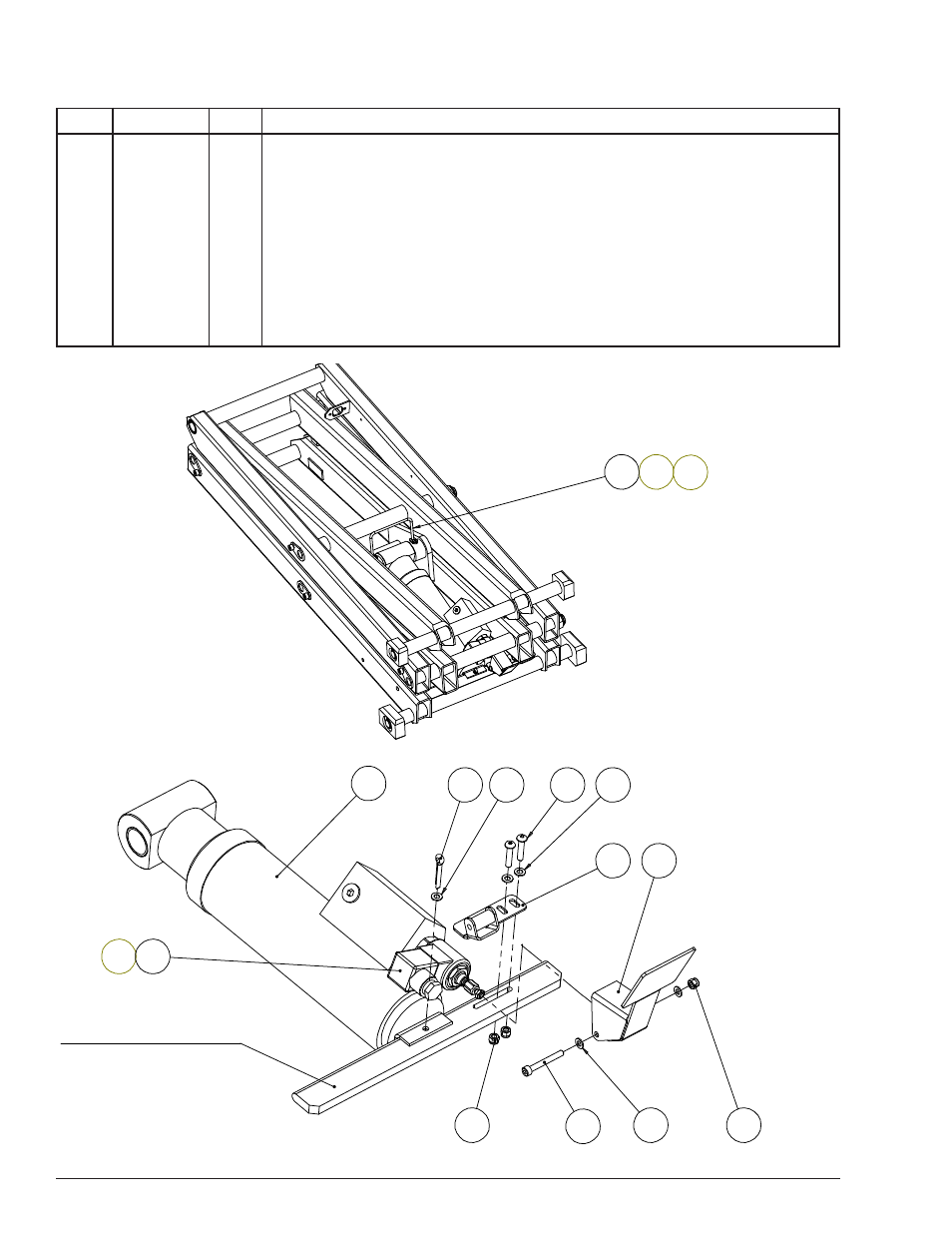

Repair Parts – 16 PUSH 6 PRO / PUSH 8 PRO / PUSH 10 PRO – 0120877
PUSH 6 PRO/PUSH 8 PRO/PUSH 10 PRO
40 513708-000 1 SAFETY RELEASE BRACKET
41 513707-000 1 SAFETY RELEASE ASSEMBLY
42 058501-040 1 SOCKET CAP SCREW - DIN912 M5 X 40
43 056069-005 5 WASHER FLAT DIN125 M5
44 056066-005 3 NUT, NYLOCK NUT DIN985 M5X8.8 ZINC PLATED
45 513818-000 1 SOLENOID VALVE, 12VOLT DC-SV08-22-J-O-N-12DG
46 505082-025 2 SOCKET BUTTON HD SCREW - M5X25
47 508637-000 1 HERSCHMANN PLUG
48 501257-000 1 SPLIT PIN - 5MM X 25LG
49 514030-000 1 CYLINDER OVER BRACKET
50 501253-012 2 SOCKET BUTTON CAP SCREW M6X12
51 056069-006 2 FLAT WASHER - M6
Item Part No. Qty. Description
50 49
47
51
40 41
42
15 43 43 46
44
48
44
CYLINDER MOUNT BAR ON
1st OUTER ARM WELDMENT
43
45
