Operator Manual

067903-004R1 LX Series Work Platform

Maintenance

E

N G I N E

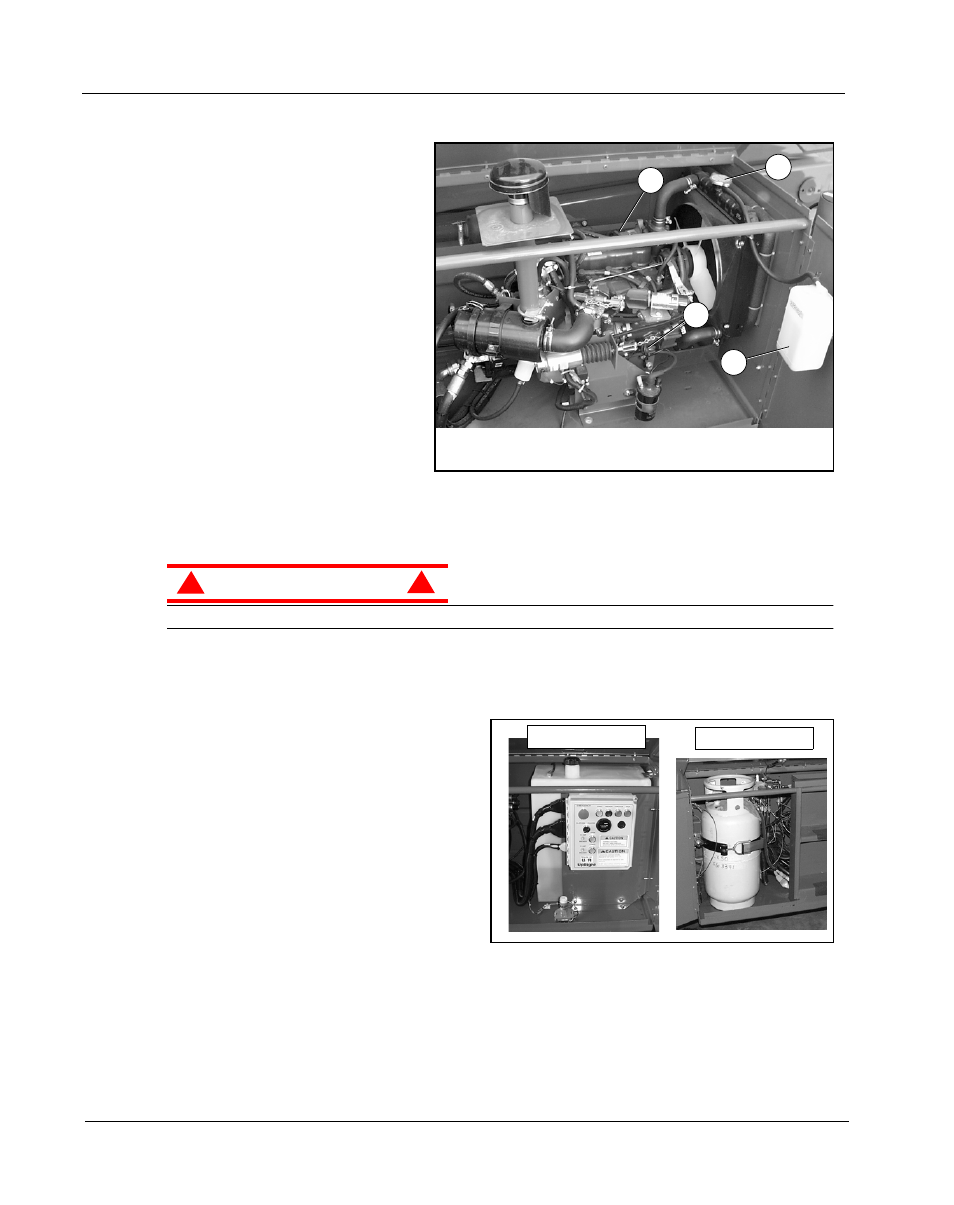

Figure 14: Engine

C

OOLANT

The coolant recovery tank is mounted
on the inside of the door of the power
module.

1. Remove the cap on the coolant

recovery tank.

2. Add coolant to the “FULL” mark.

NOTE: Never remove the radiator cap when

the engine is hot.

O

IL

The engine must not be running
when you check and replenish the
engine oil. Refer to the Service Manual
to change the oil filter.

1. Remove the oil dipstick and check

the level indicator marks.

2. If the level is low, remove the oil filler cap.

3. Replenish with the proper engine oil (refer to the engine service manual that came with the machine).

C A U T I O N

!

!

DO NOT check coolant when engine or radiator is hot; hot coolant can cause severe burns.

F

U E L

Figure 15: Fuel Supply

D

IESEL

OR

G

ASOLINE

IMPORTANT: Fill with the correct fuel! Observe the

label near the fuel tank. It will say “Gasoline Only”
or “Diesel Only”.

The fuel tank for gasoline or diesel machines is
located in the Control Module, behind the chas-
sis controls. The tank is translucent. Check the
fuel level by observing the level of the liquid
through the tank.

P

ROPANE

(LP G

AS

)

The propane tank (dual fuel machines) is located in the Control Module to the left of the ladder, in front of
the battery.

3

4

1

2

1 Radiator Cap
2. Coolant Recovery Tank

3. Oil Filler Cap
4. Oil Dipstick

Propane (LP Gas)

Diesel or Gasoline
